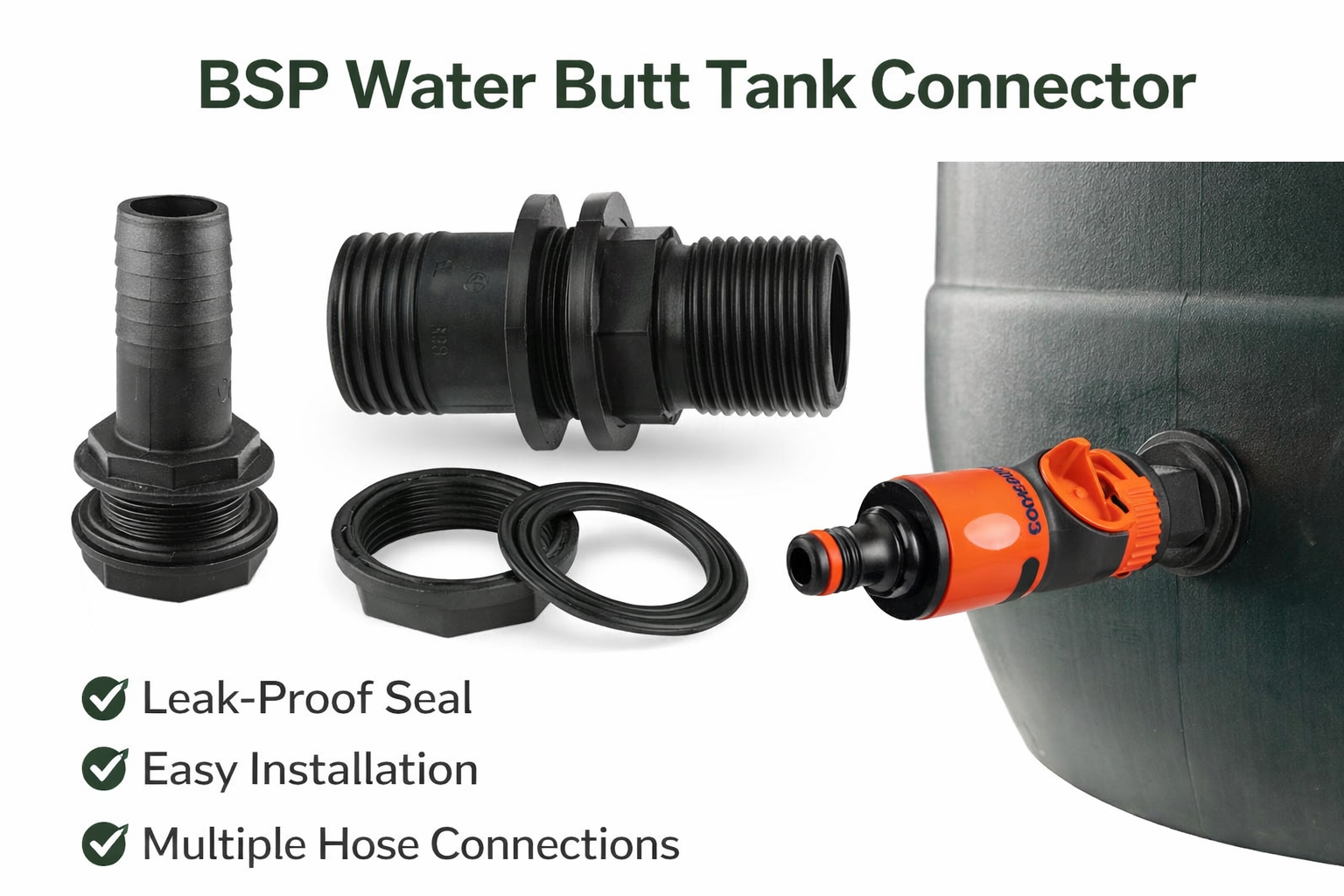

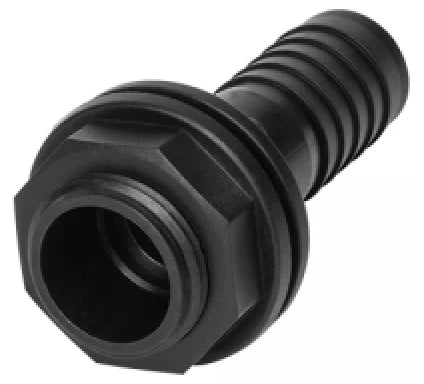

BSP Water Butt Tank Connector with Hosetail
This BSP threaded tank connector with hose barb provides a secure and reliable way to connect pipes or hoses to water butts, tanks, barrels, and irrigation systems.
Designed using British Standard Pipe (BSP) thread sizes, these connectors ensure compatibility with a wide range of plumbing and water storage applications.
Each connector includes a sealing washer and locking nut, allowing the fitting to be securely installed through tanks or containers while creating a leak-resistant seal.
Ideal for water butts, garden irrigation systems, rainwater harvesting, ponds, and storage tanks.
Key Features
✔ BSP Standard Thread Sizes
Compatible with British Standard Pipe fittings.
✔ Secure Bulkhead Installation
Designed to pass through tanks and containers with a sealing washer and locking nut.
✔ Integrated Hose Barb
Allows easy connection of flexible hoses or pipes.
✔ Leak-Resistant Design
Washers provide a tight seal to prevent water leaks.
✔ Durable Plastic Construction
Strong and corrosion-resistant material suitable for outdoor use.
✔ Multiple Sizes Available
Suitable for various pipe and hose diameters depending on the selected variant.
Available BSP Sizes
We offer this connector in several BSP thread sizes.
The required hole sizes are approximately:
• 1/2" BSP – 21 mm hole
• 3/4" BSP – 26 mm hole
• 1" BSP – 33 mm hole
• 1¼" BSP – 41.9 mm hole
• 1½" BSP – 47.8 mm hole
• 2" BSP – 59.6 mm hole
Installation Instructions
1. Prepare the Hole
Locate an existing hole on your tank or drill a new one according to the BSP size required.
2. Insert the Connector
Remove the nut, leave the washer on the thread, and insert the connector through the hole.
3. Secure the Fitting
Screw the nut onto the thread and tighten firmly by hand to create a watertight seal.
4. Attach the Hose
Push your hose or pipe onto the barb and secure it with a hose clip or cable tie.
Typical Applications
-
Water butts
-
Rainwater harvesting systems
-
Garden irrigation
-
Pond systems
-
Water storage tanks
-
Barrels and containers

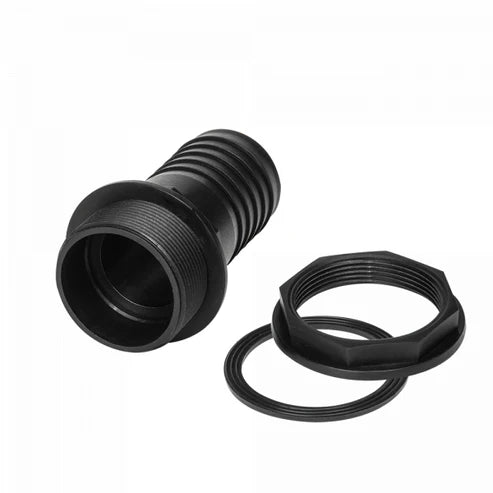

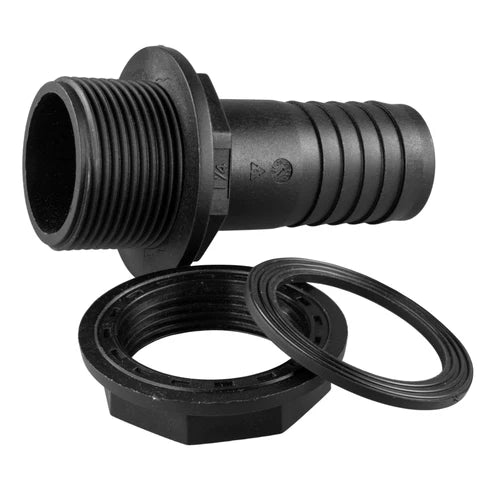

Package Includes
• 1 × BSP Tank Connector with Hosetail
• 1 × Locking Nut
• 1 × Sealing Washer
