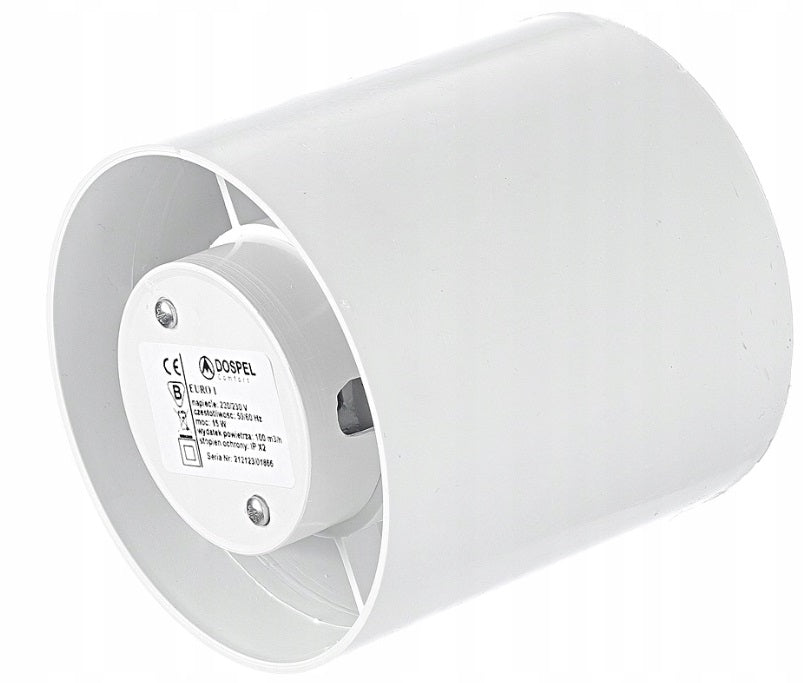

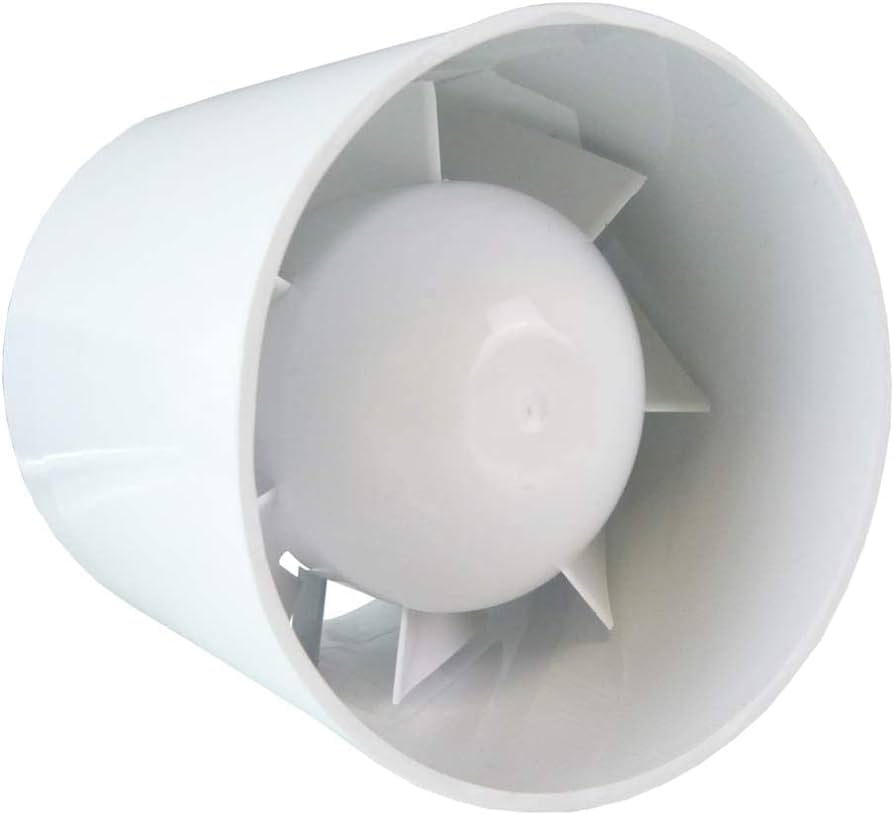

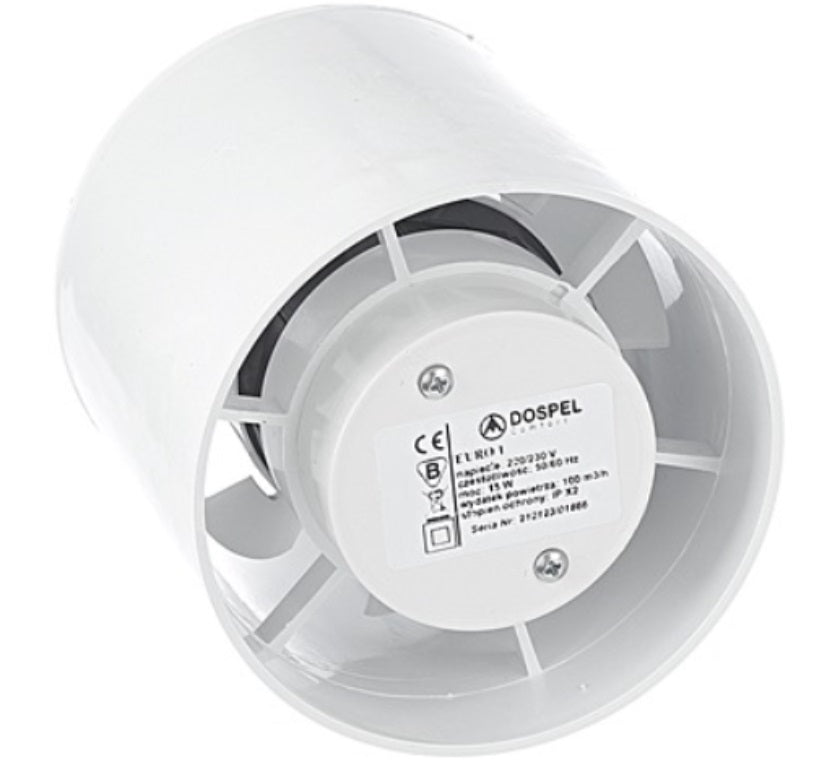

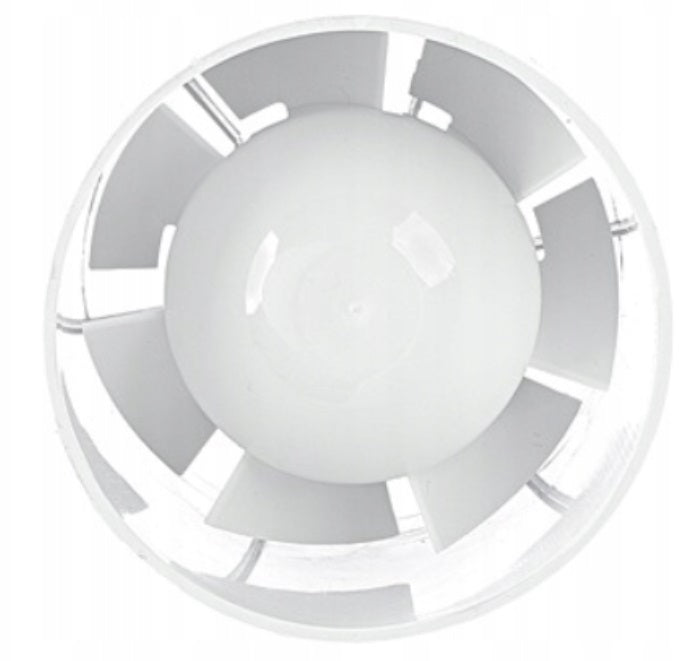

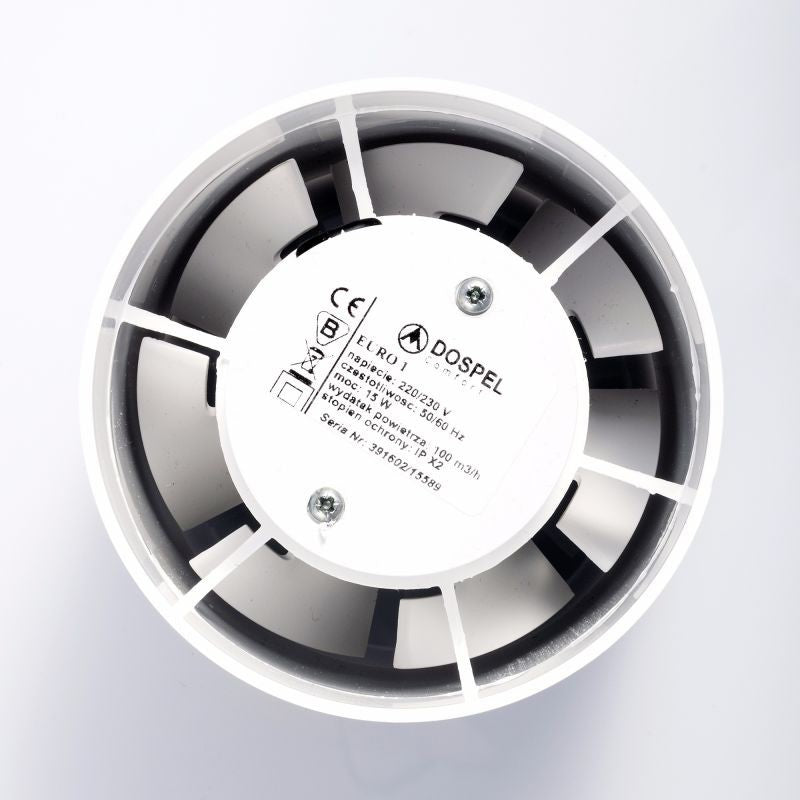

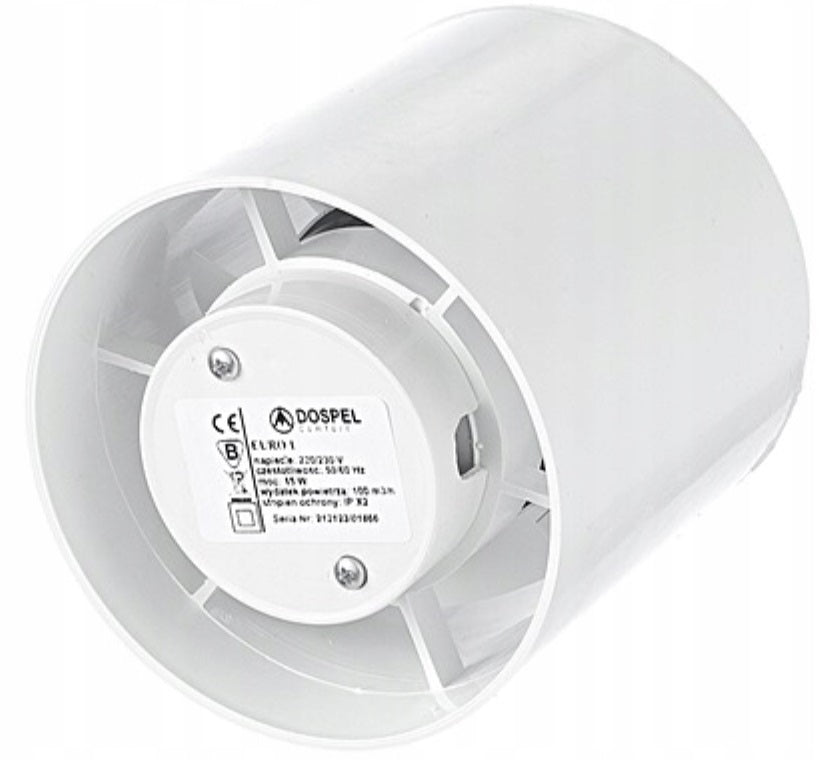

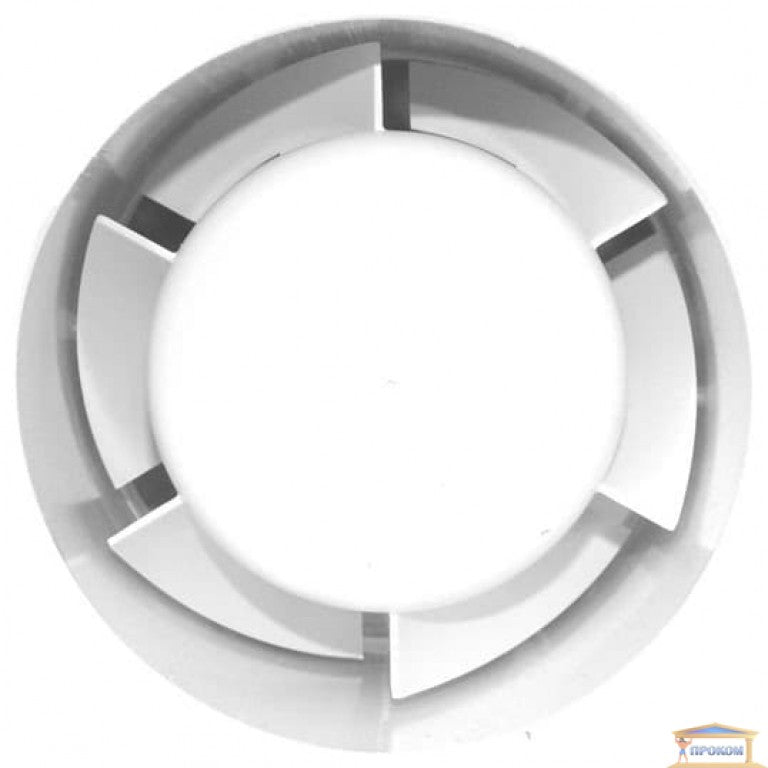

The 100 mm axial fan from Dospel is expertly crafted to provide efficient ventilation for a variety of spaces such as homes, offices, and small industrial areas. Made from sturdy white ABS plastic, this fan combines durability with a sleek appearance, allowing it to blend seamlessly into any environment. Its modern design and effective ventilation make it an excellent solution for maintaining good air quality indoors.
This fan carries an IPX2 rating, indicating protection against water droplets falling vertically when tilted up to 15 degrees from the vertical. It also features Class II insulation for added safety, protecting against both direct and indirect contact. These safety features make the fan reliable for continuous use across different applications.
Designed for ducted installation, the fan incorporates sleeve bearings to ensure smooth and quiet operation. It delivers a strong airflow of 100 m³/h and a static pressure of 34 Pa while maintaining a low noise level of 40 dB(A). Powered by a high-speed motor running at 2650 rpm, it draws 0.12 A and consumes just 15 W, making it energy efficient. The fan can operate effectively in temperatures up to 40 °C, guaranteeing consistent performance.
For full technical specifications, please refer to the ‘Specifications’ drop-down tab.
