F-RICO-100WCH-KIT-GRAPHITE-001

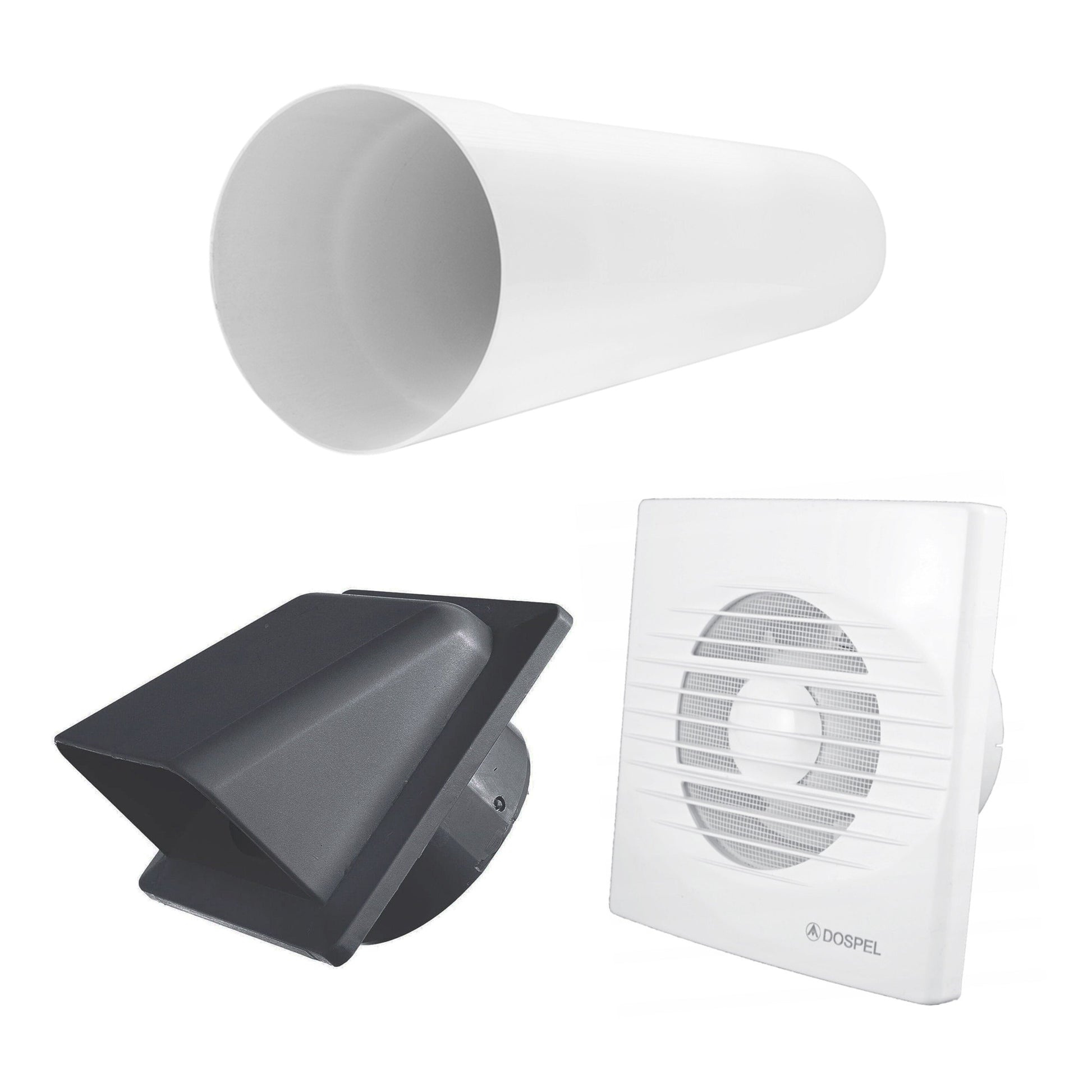

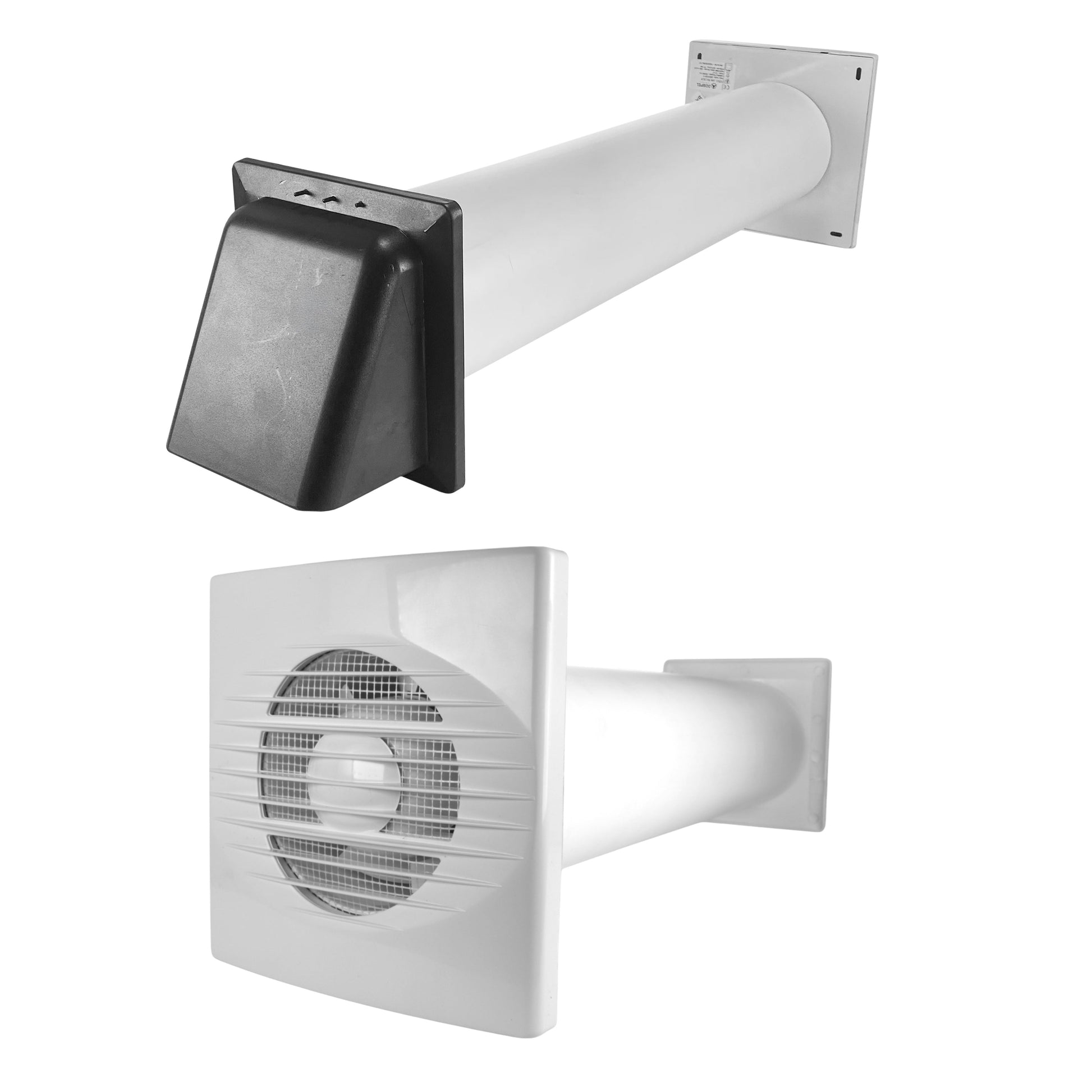

This kit includes:
- 1 x Rico 100mm Bathroom Fan with Timer and Humidistat (F-RICO-100WCH)
- 1 x 50cm Rigid PVC Duct Pipe (V-P100R50CM)
- 1 x Graphite External Louvre Vent with Hood (VC-KRD4358-100-GRAPHITE)
F-RICO-100WCH-001

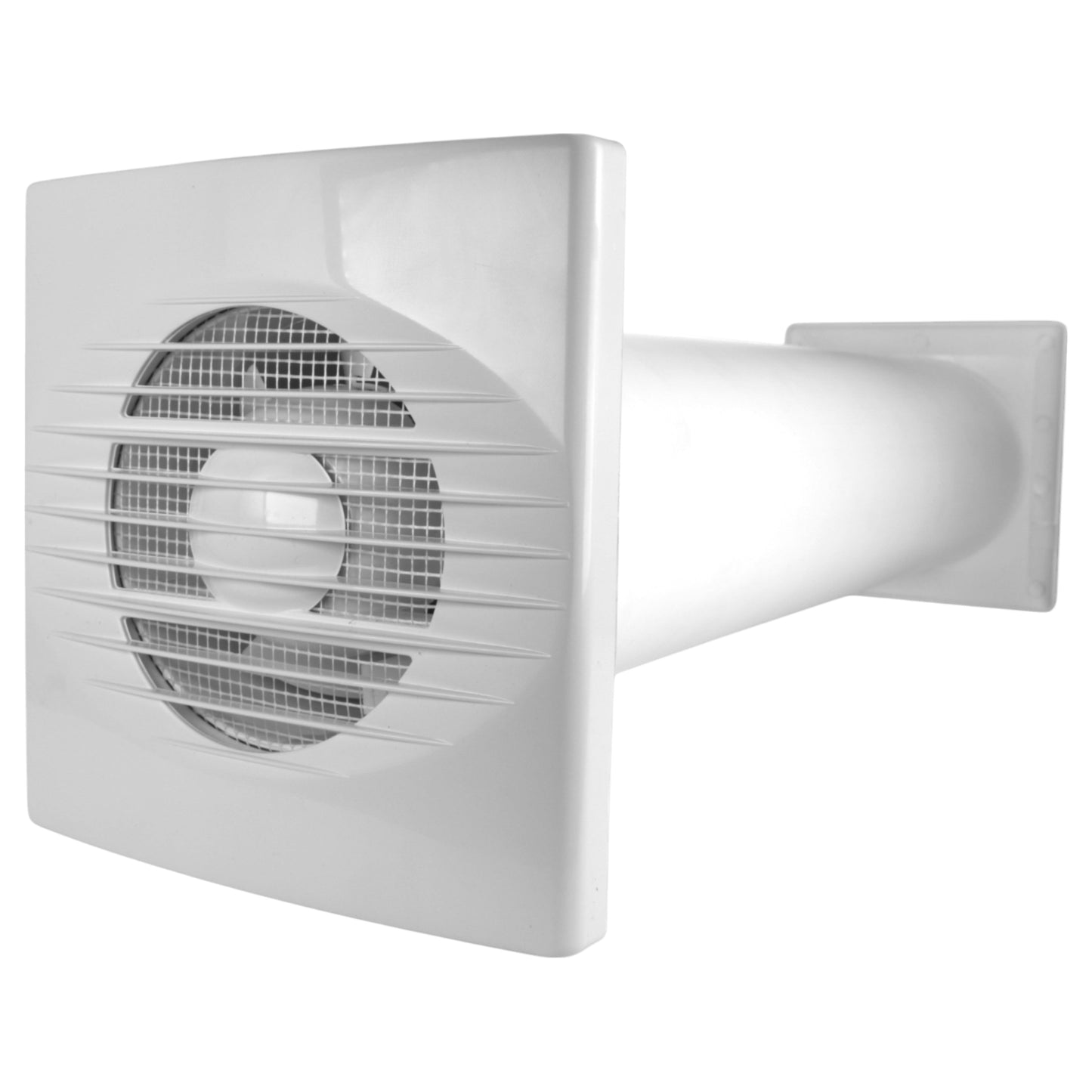

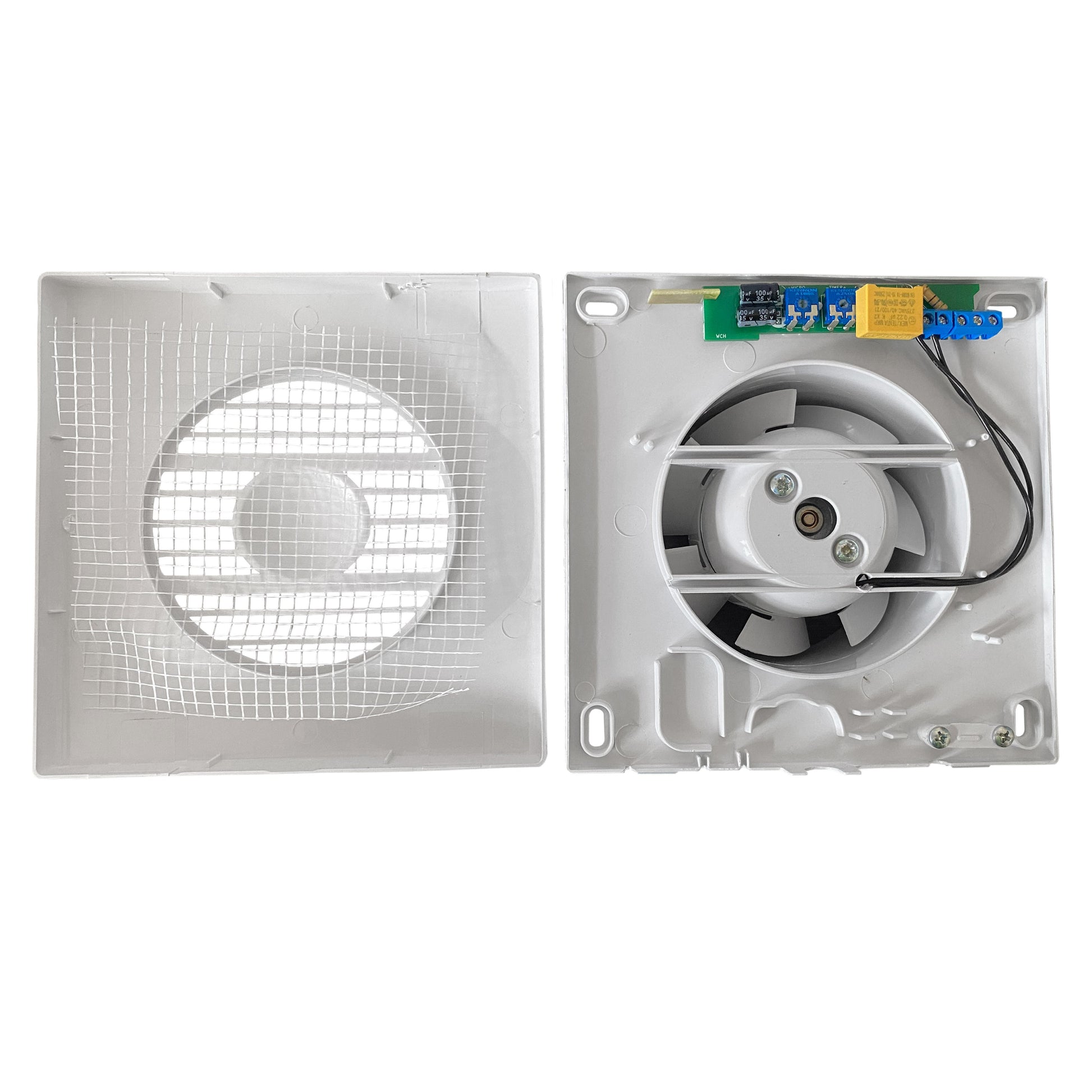

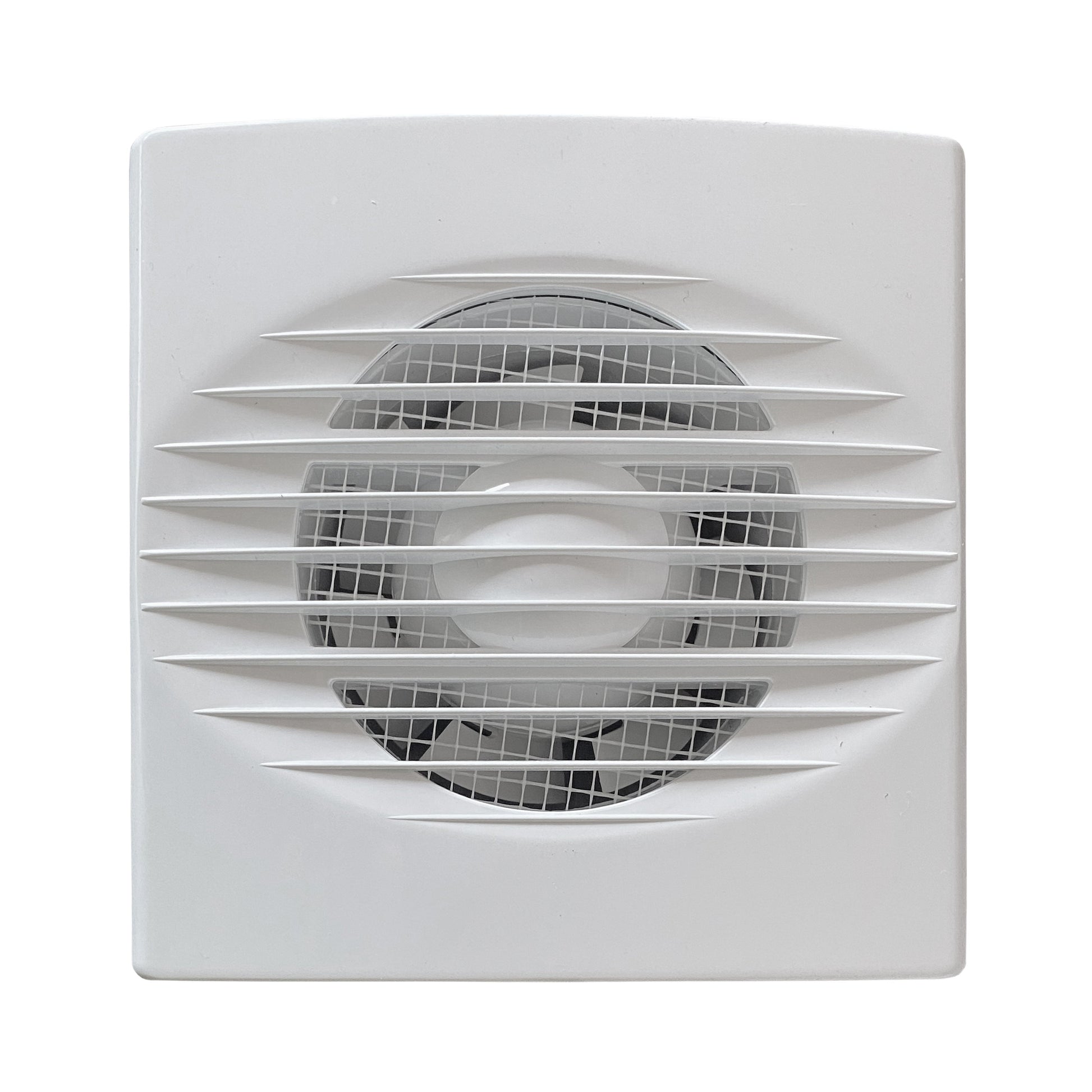

The RICO 100 mm axial fan, produced by Dospel, combines modern styling with practical features like a built-in timer and humidistat. Made from robust ABS plastic with a UV-resistant coating, it resists yellowing and retains its clean appearance. Its sleek graphite finish makes it an attractive and functional addition to any bathroom or utility space.
With an IPX2 protection rating, the fan is safeguarded against vertical water droplets, even when tilted up to 15°, and its Class II insulation enhances electrical safety. These features make it a reliable solution for moisture-prone environments in both domestic and commercial settings.
The fan features a timer switch that allows it to run for a set time after being switched off, maintaining ventilation after use. Its built-in humidistat (hygrostat) detects excess humidity and automatically activates the fan based on the level set via a potentiometer—effectively reducing damp, mould, and mildew risks.
Designed for wall mounting, the fan includes sleeve bearings for quiet operation and long-lasting performance. It comes complete with power cables. The fan delivers an airflow of 100 m³/h, with 34 Pa static pressure and 40 dB(A) sound level. Powered by 230 V / 50 Hz, it runs at 2650 rpm while consuming just 15 W and drawing 0.12 A. Suitable for use in temperatures up to 40°C.
V-P100R50CM
This 50 cm long rigid PVC ducting pipe is ideal for through-wall installation, providing a clean and secure air channel. It protects airflow from contact with dust, insulation or debris inside the wall. The pipe is made from tough plastic and can be cut to size with a regular hand saw, making it suitable for both professional and DIY use.
VC-KRD4358-100-GRAPHITE001

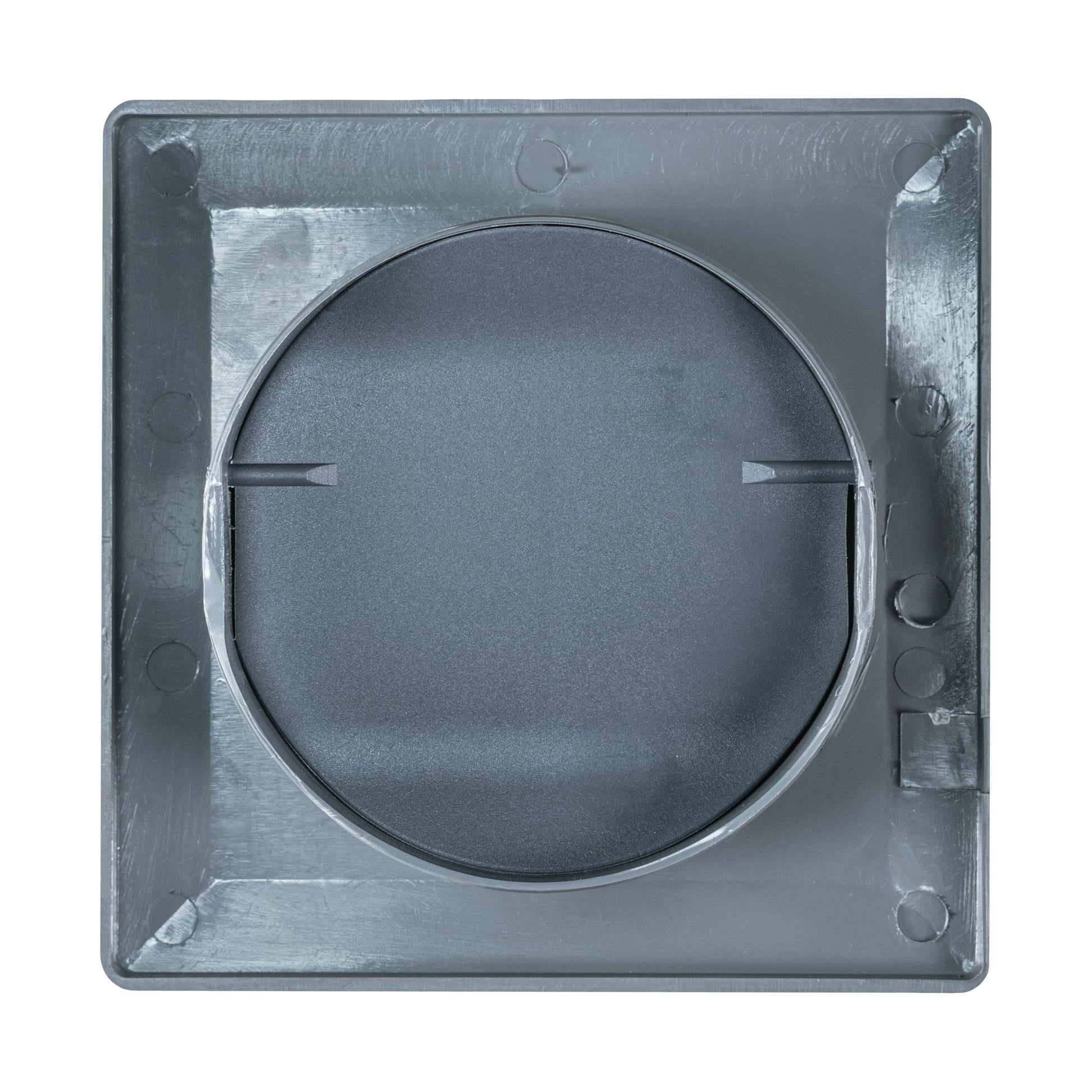

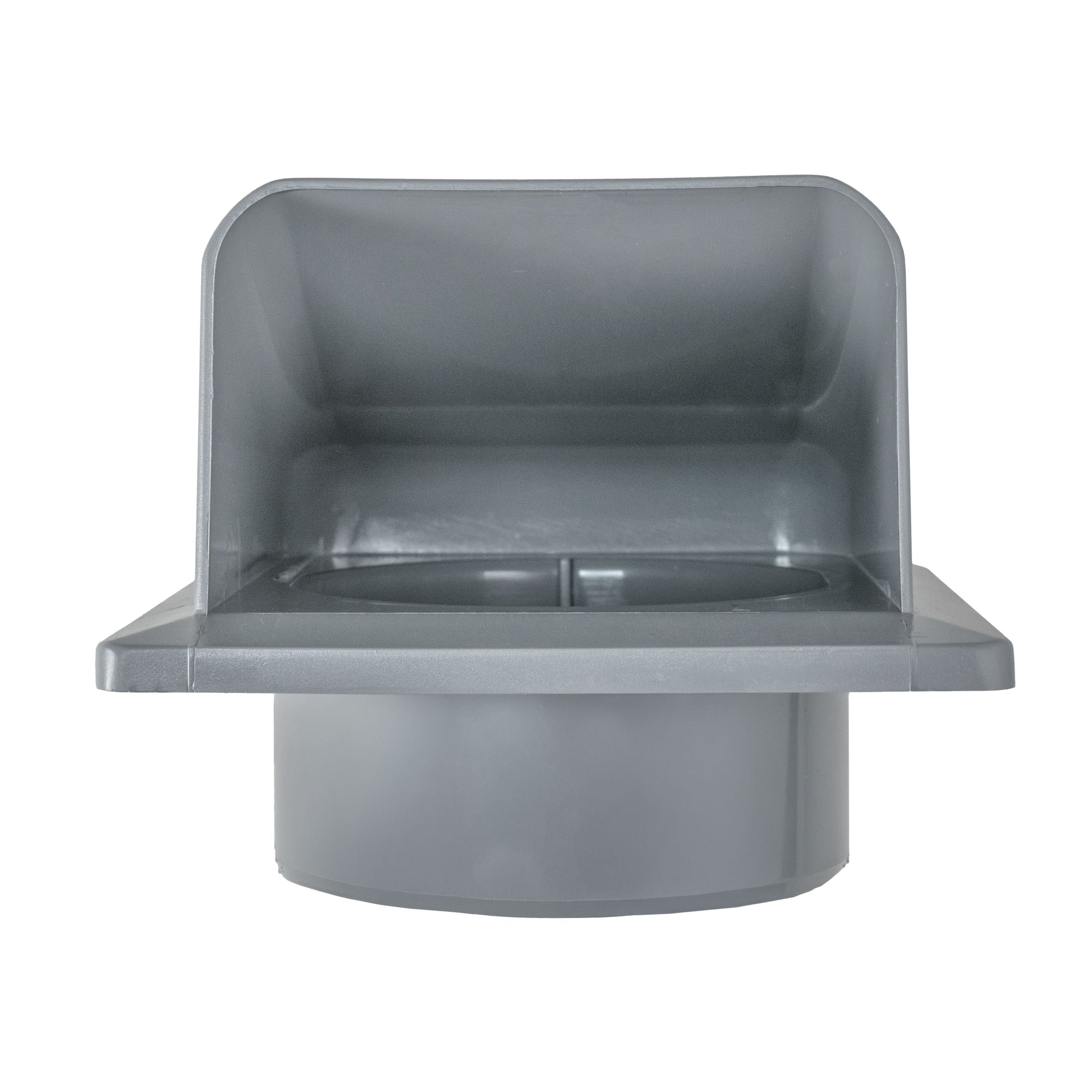

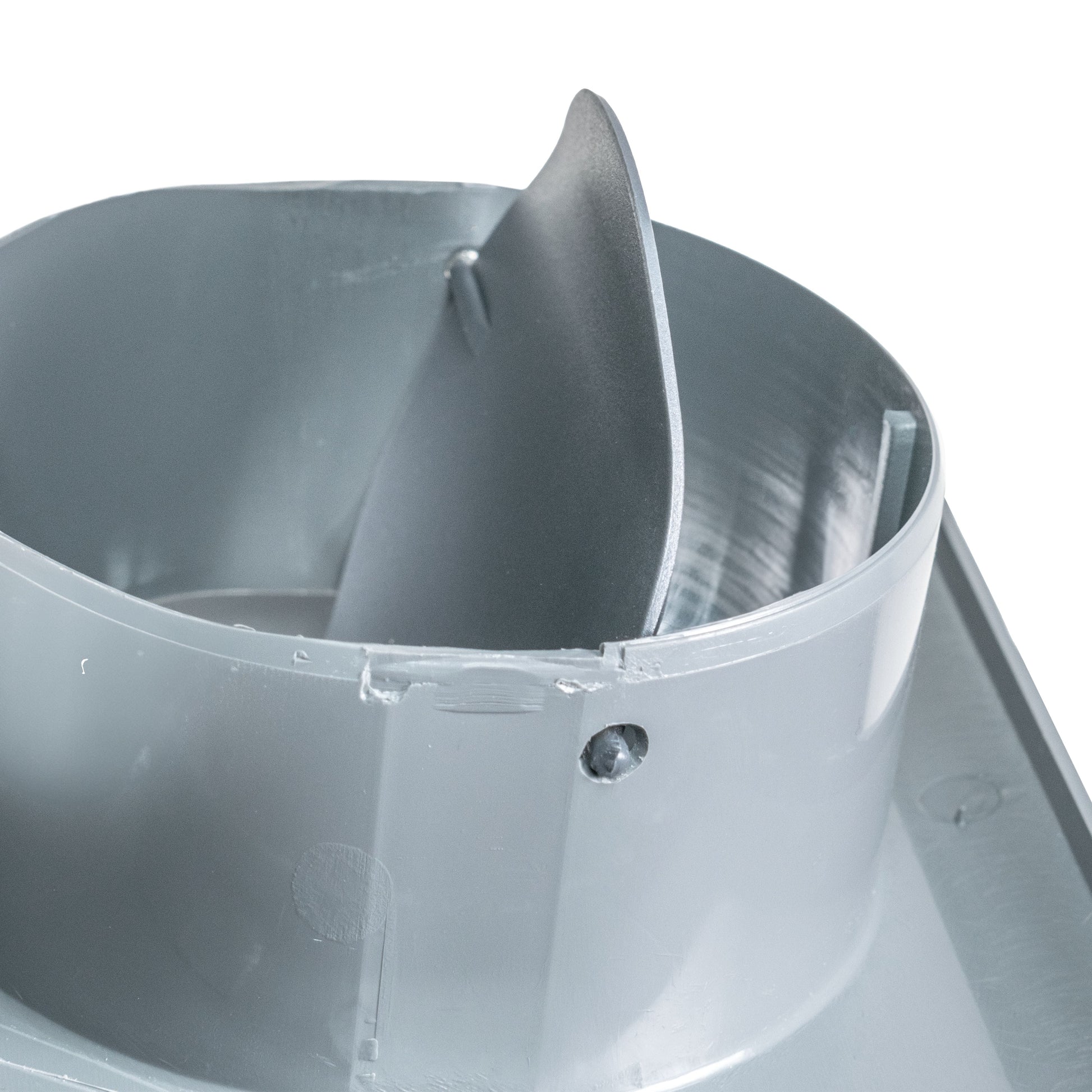

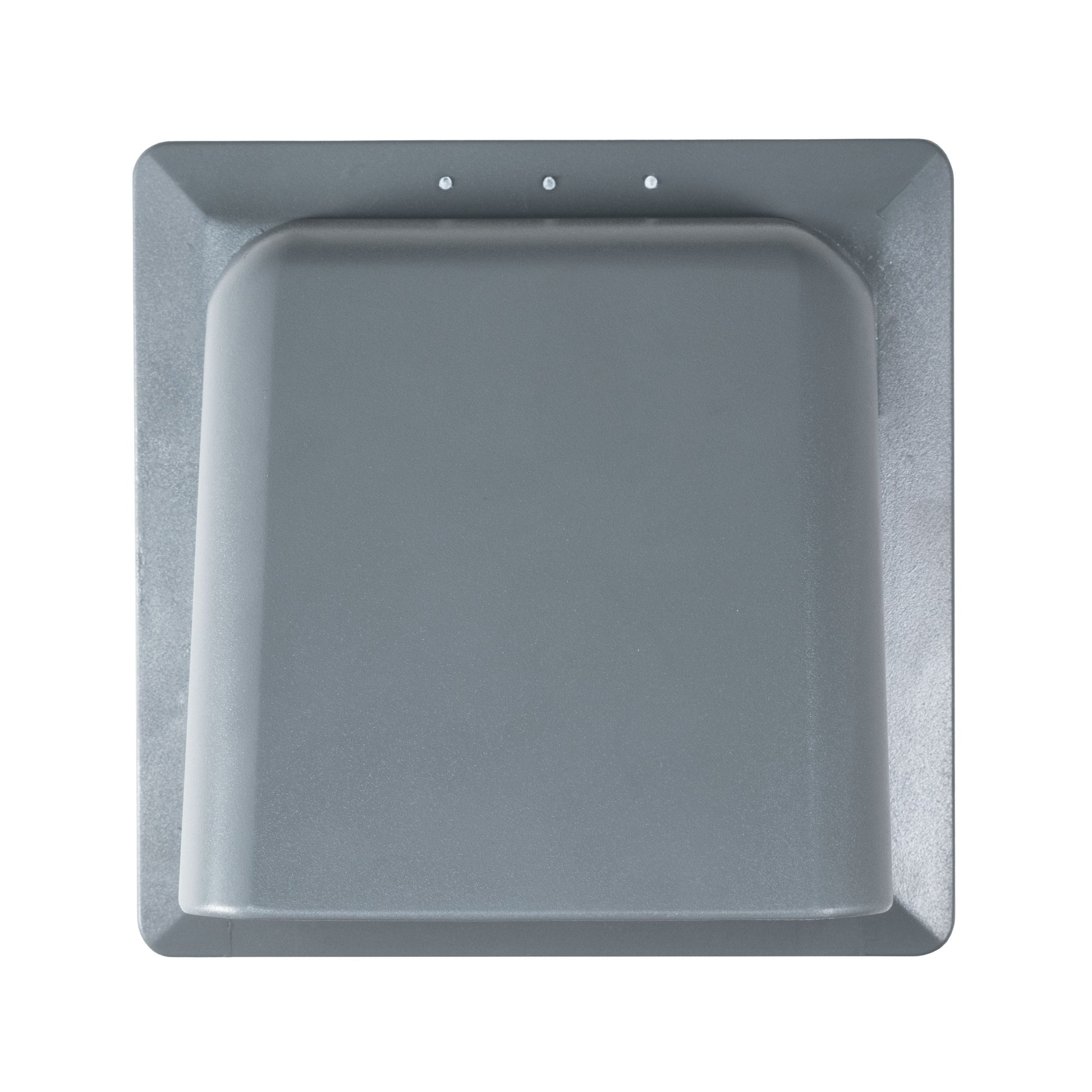

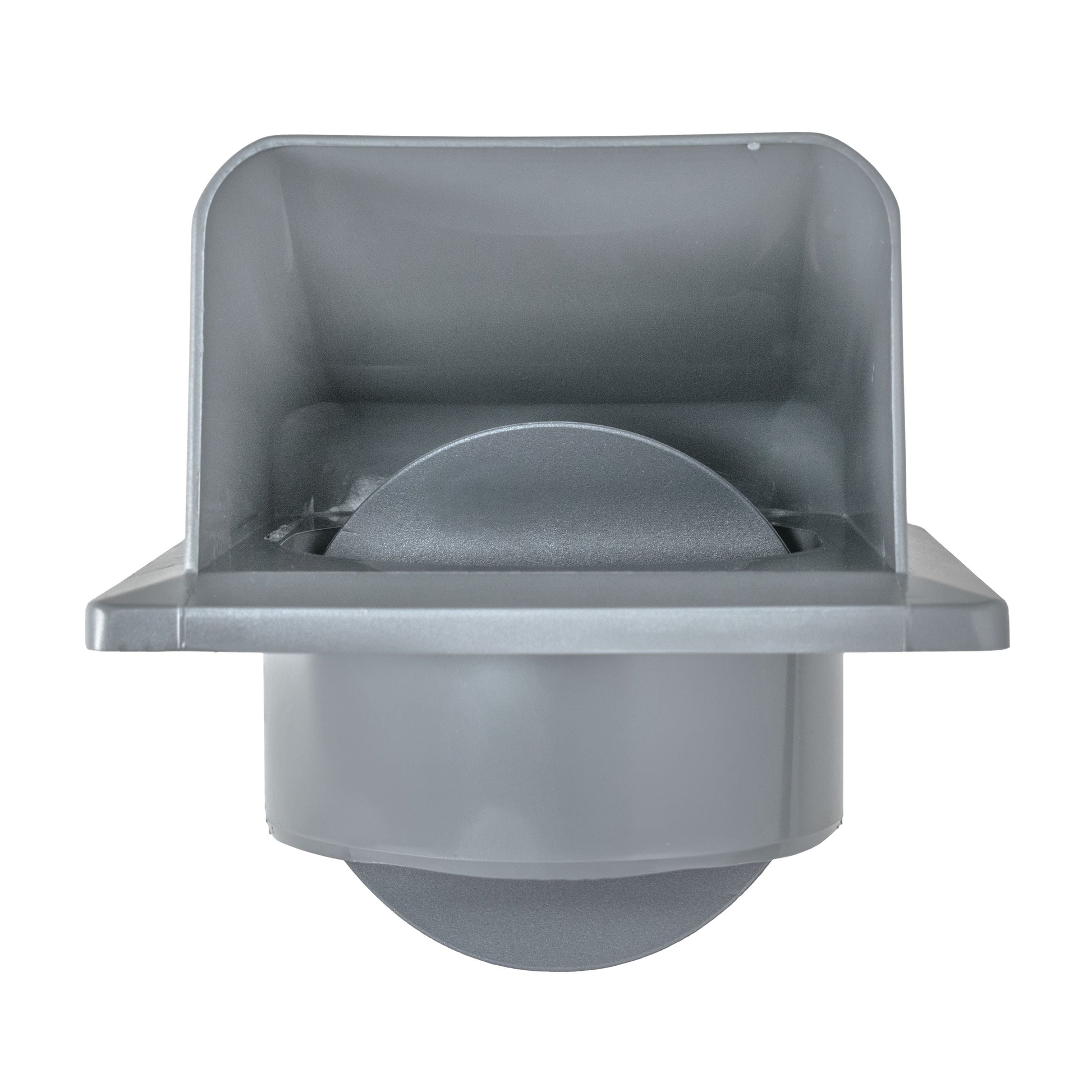

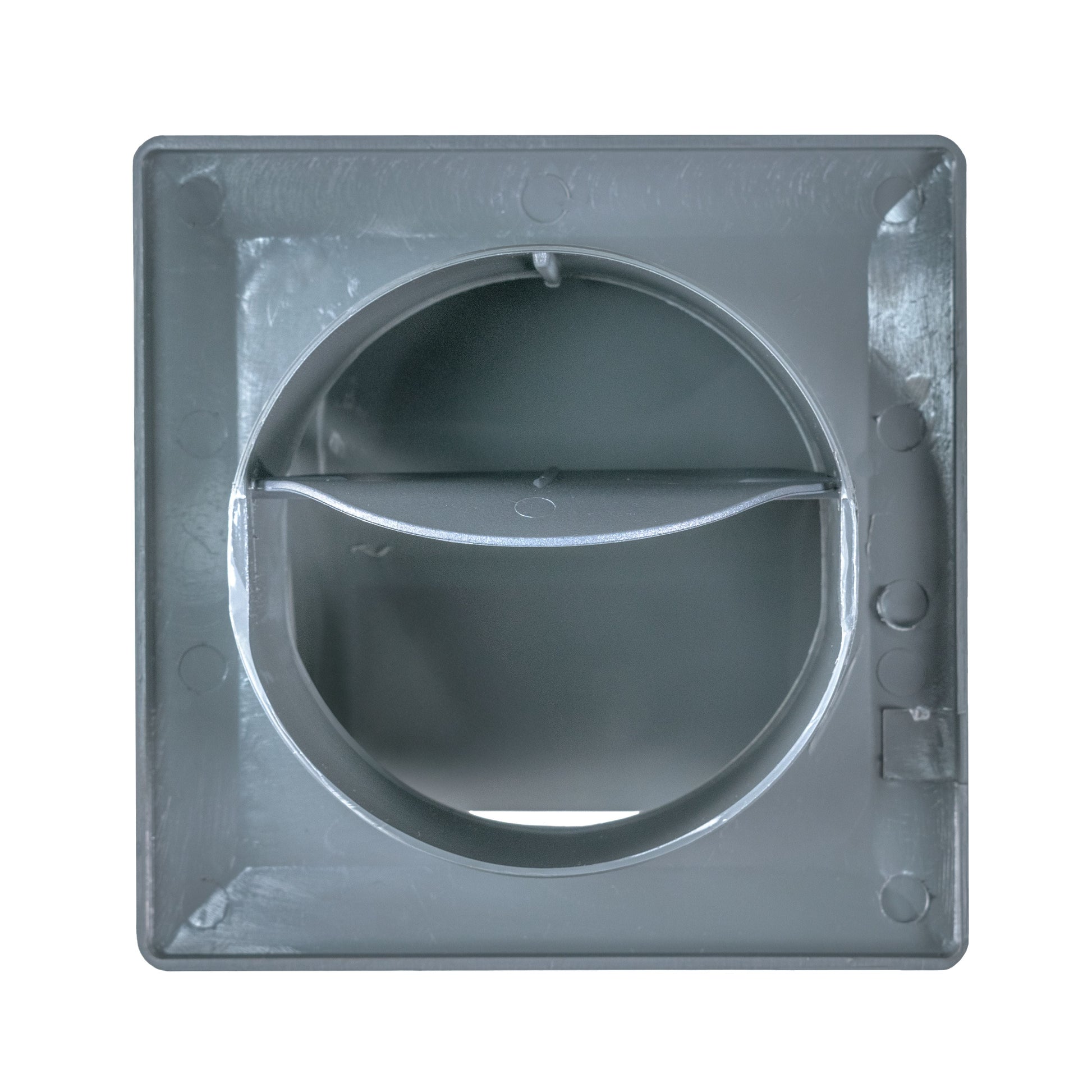

This graphite external louvre grille with integrated damper provides a smart and effective way to regulate airflow. The damper allows for precise control, while the louvres shield the system from rain, insects and airborne particles, improving durability and ventilation performance.
Constructed from weather-resistant ABS (Acrylonitrile Butadiene Styrene), the grille is highly durable, impact-resistant and resistant to chemical corrosion. It’s designed for both indoor and outdoor use and maintains its structural and visual quality over time, requiring minimal maintenance.
Whether installed in HVAC systems, residential builds or commercial settings, this grille combines strength, efficiency and visual appeal—contributing to better air quality and system reliability.
