F-RICO-100WCH-KIT-WHITE-001

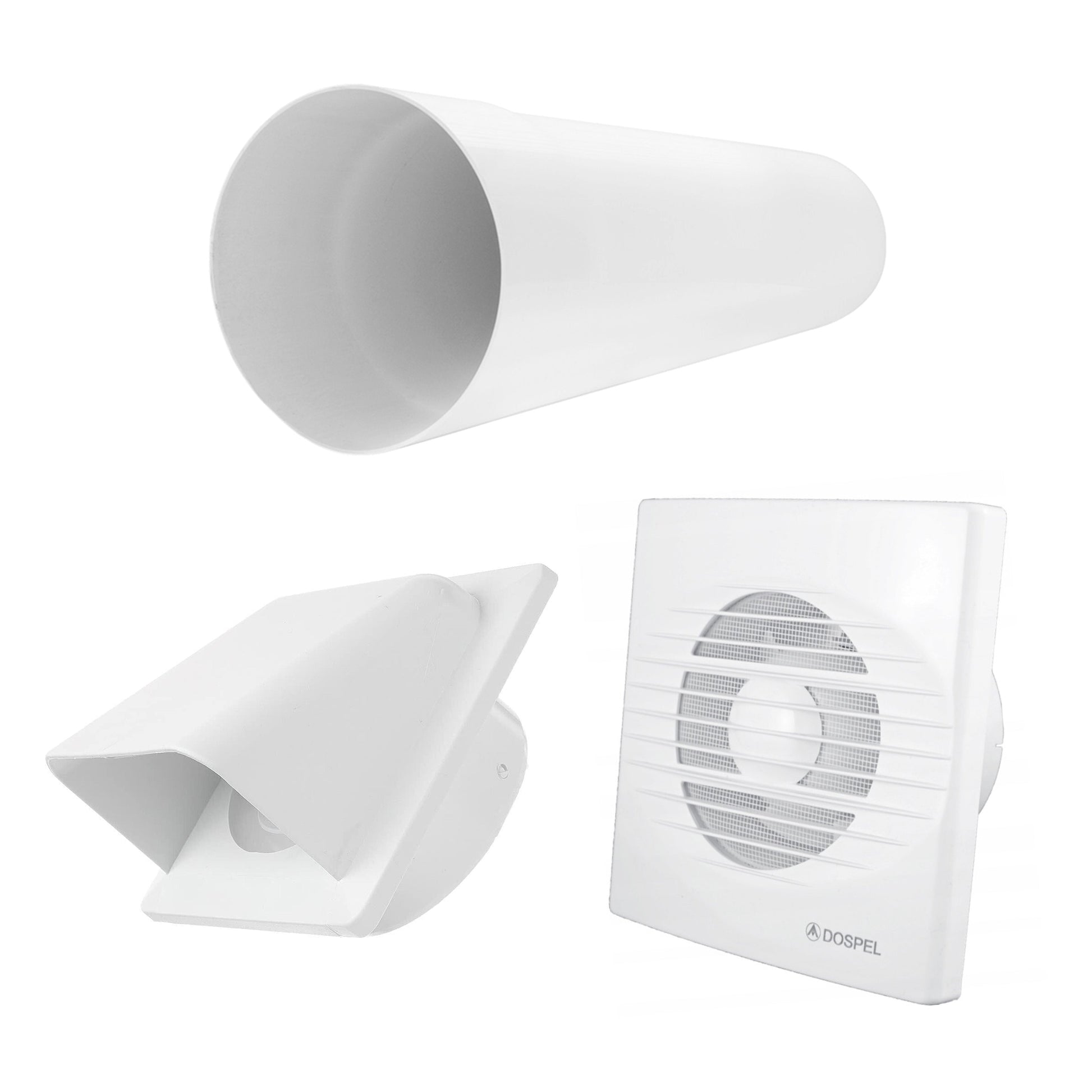

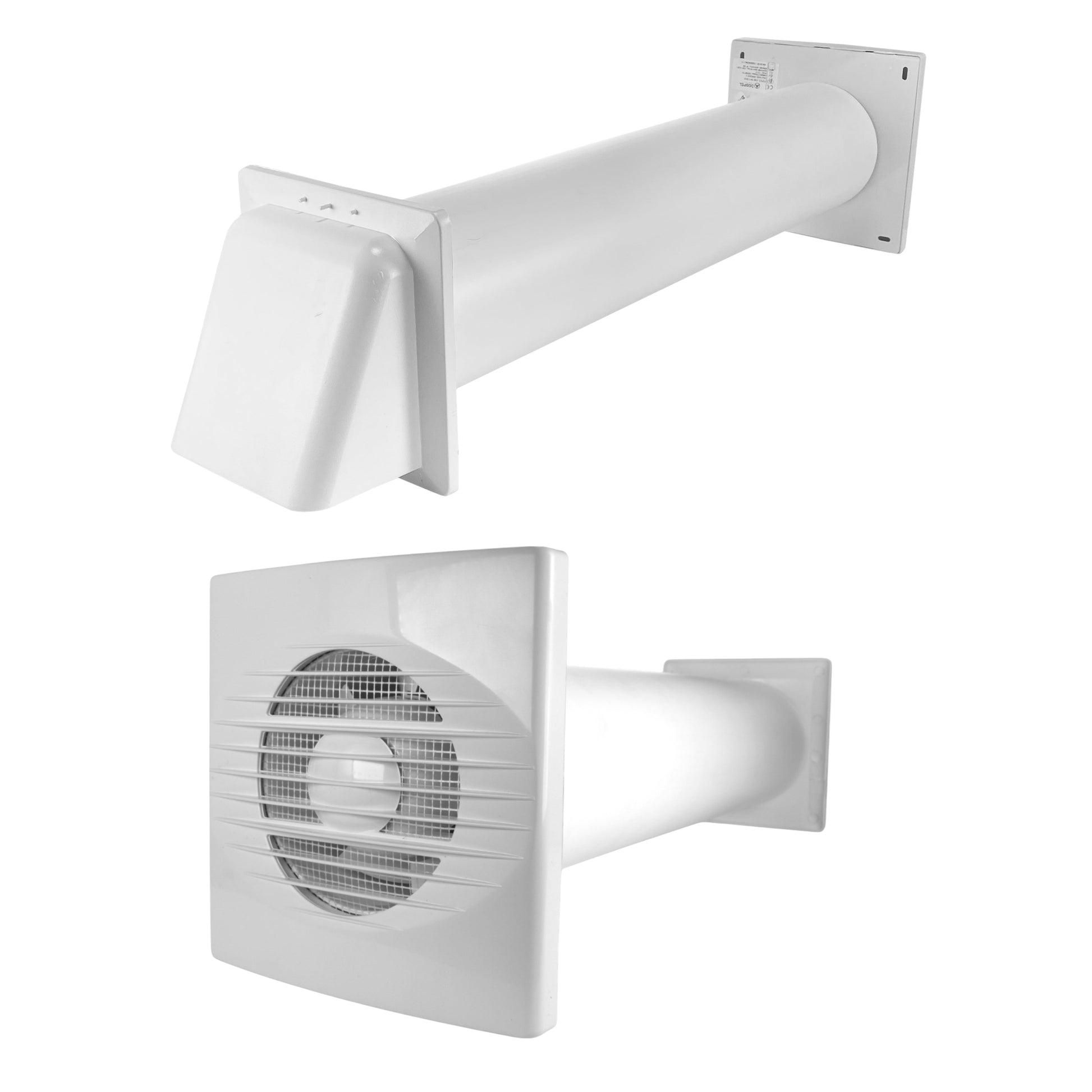

This kit includes:
- 1 x Rico 100mm Bathroom Fan with Timer and Humidistat (F-RICO-100WCH)
- 1 x 50cm Rigid PVC Duct Pipe (V-P100R50CM)
- 1 x White External Louvre Vent with Hood (VC-KRD0201-100-W)

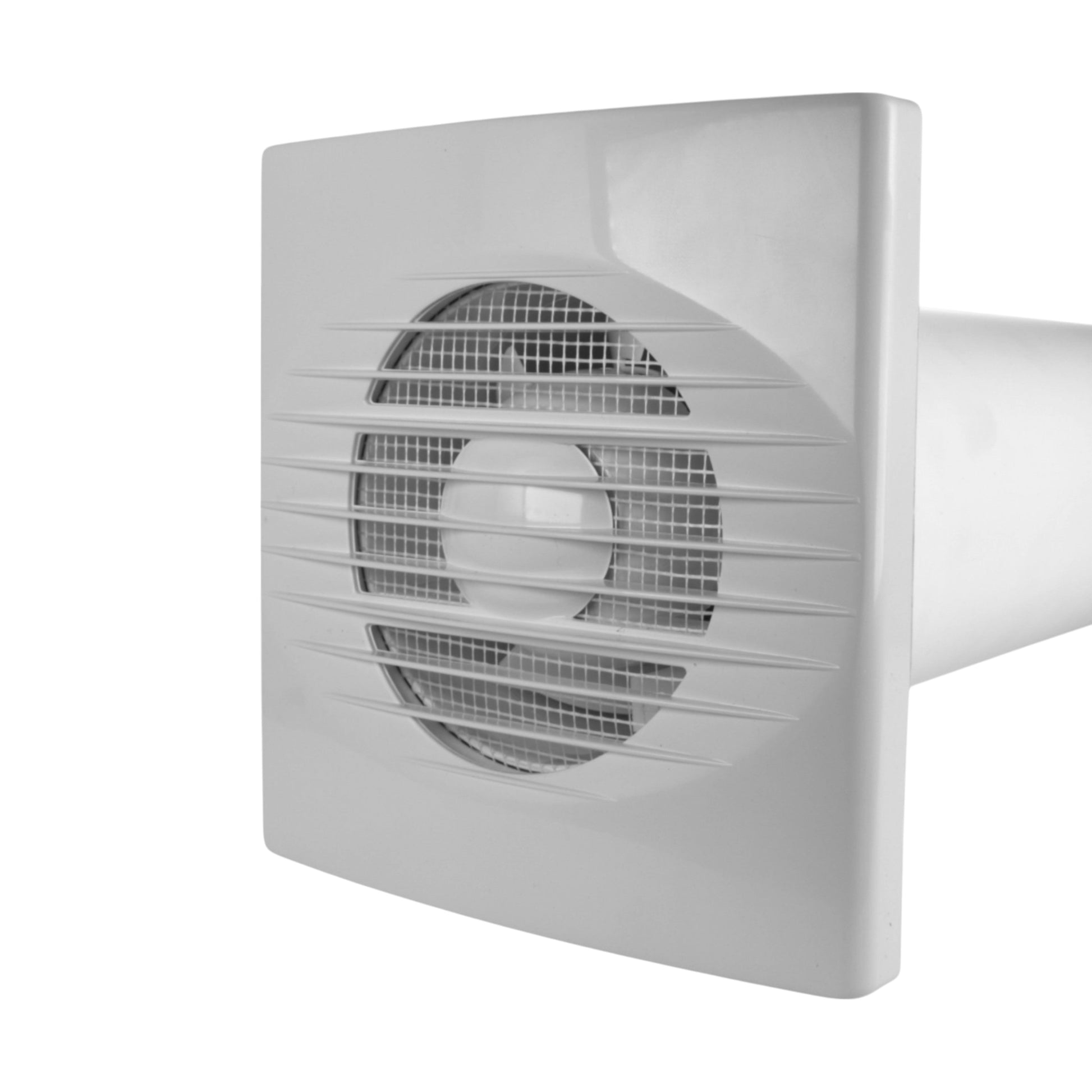

F-RICO-100WCH-001

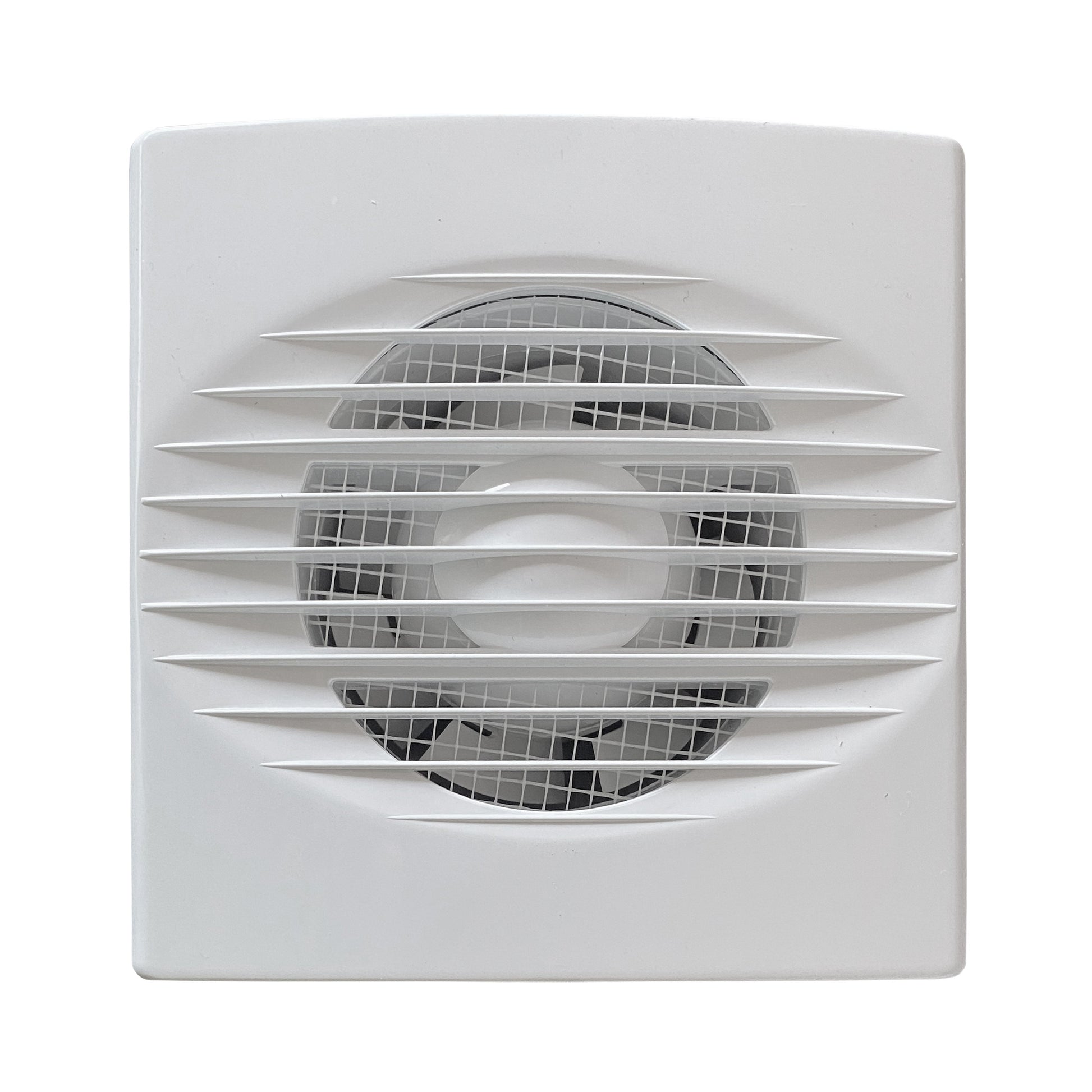

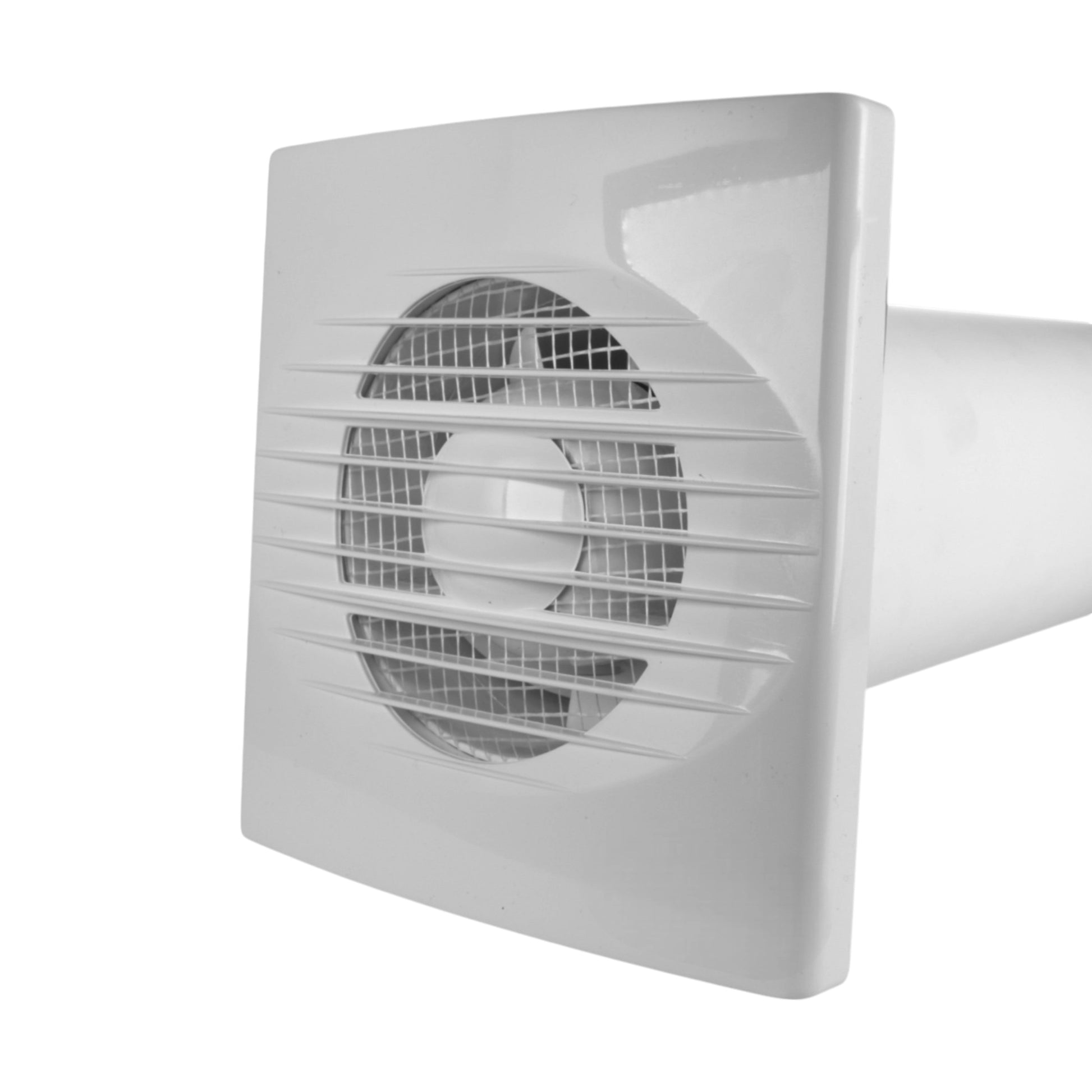

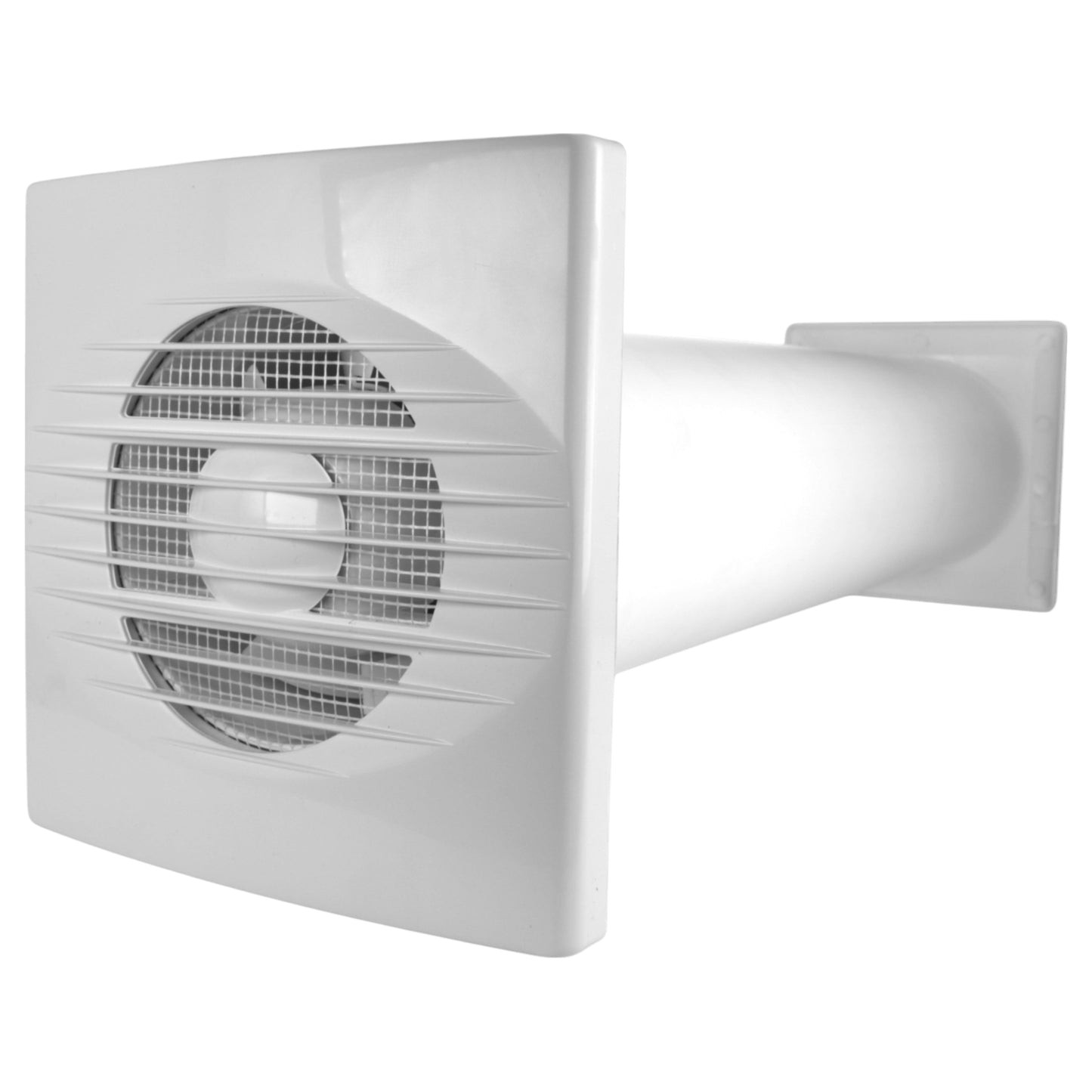

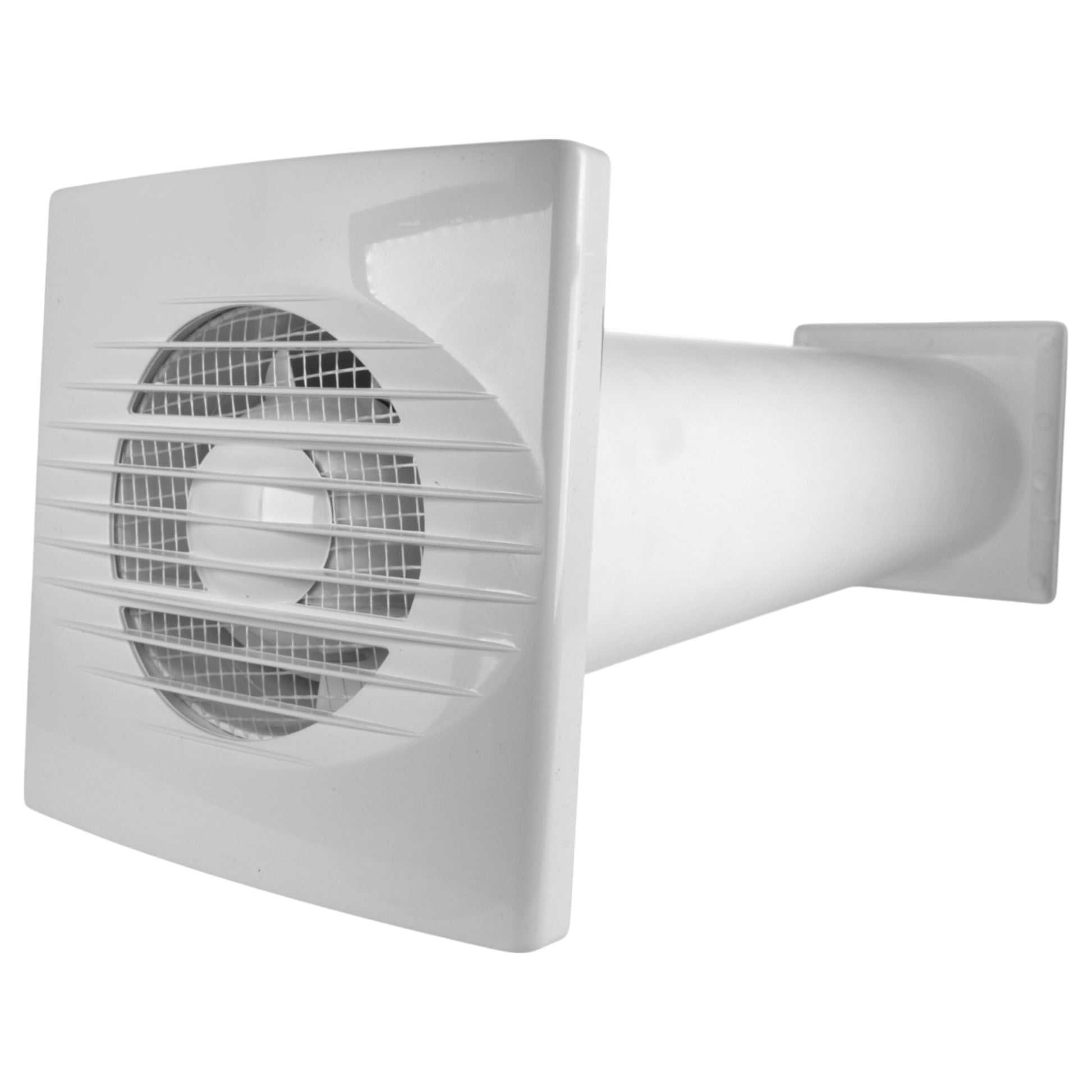

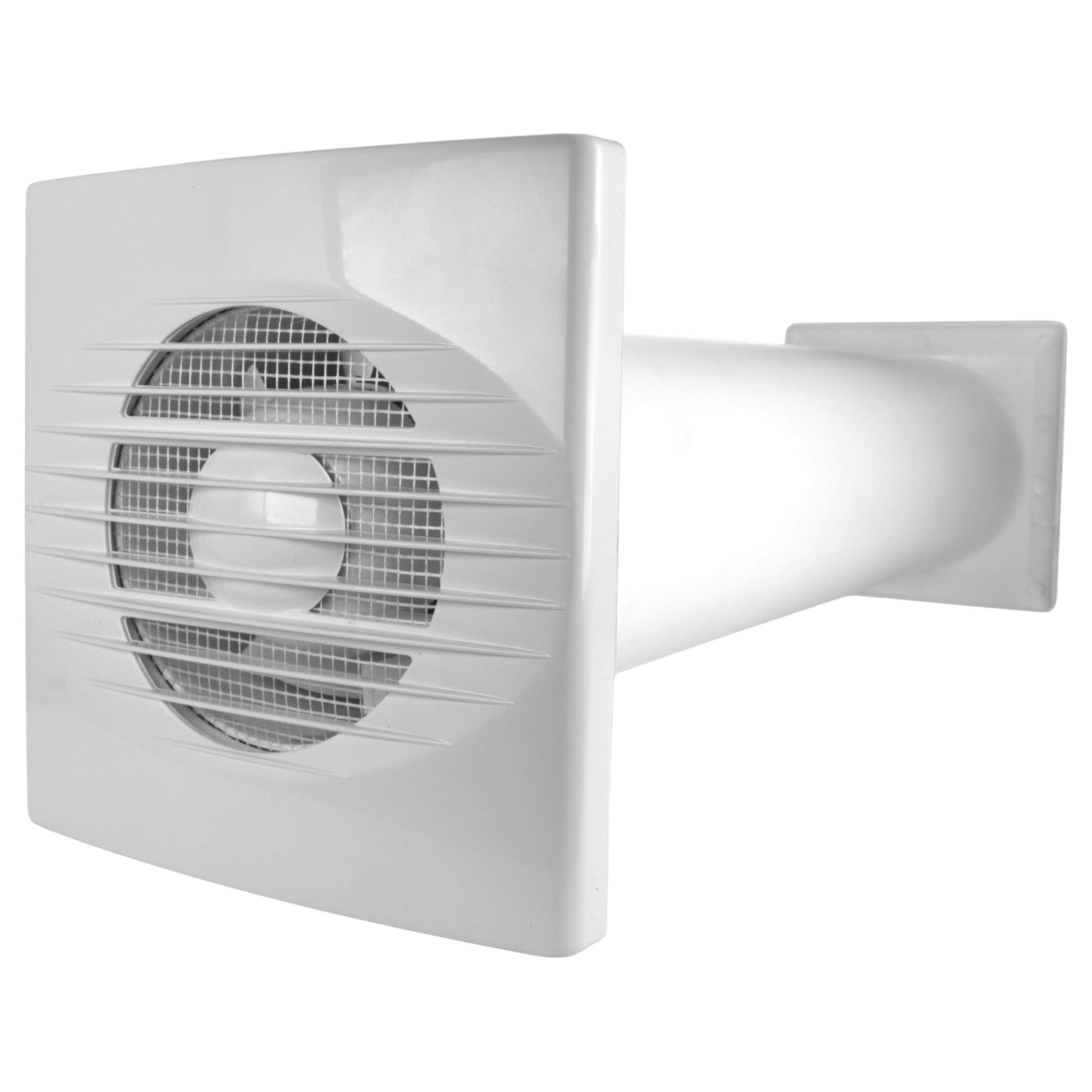

The RICO axial fan by Dospel features a compact, stylish design with a 100 mm diameter and is equipped with both a timer and a humidistat. Made from high-quality ABS plastic and coated with UV protection, this fan maintains its crisp white colour over time, resisting yellowing and preserving its modern appearance in any interior setting.
With an IPX2 protection rating, this fan is shielded from dripping water at a 15° tilt, making it suitable for damp environments. It also includes Class II insulation, offering additional safety against electrical contact. These safety features make the fan a reliable choice for both residential and commercial ventilation systems.

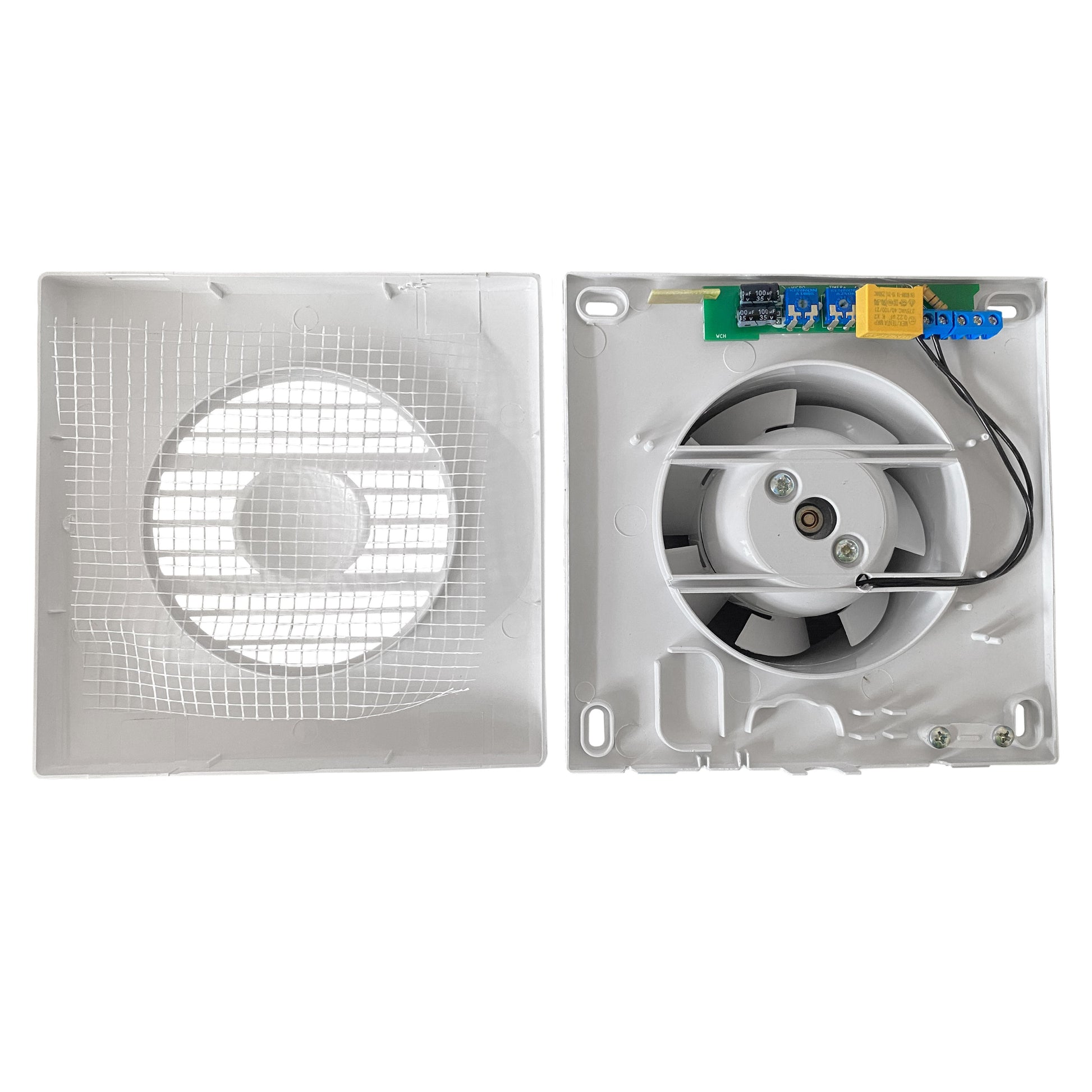

The fan’s enhanced functionality includes a timer switch, which keeps the fan running for a set time after it’s switched off, and an integrated humidistat (hygrostat), which automatically activates the fan when the room reaches a pre-set humidity level. This ensures effective moisture control, helping to prevent condensation, mould, and mildew.
Designed for wall installation, the fan operates using sleeve bearings for smooth and quiet performance. It includes power cables for easy setup. With an airflow of 100 m³/h, static pressure of 34 Pa and sound level of 40 dB(A), the fan runs at 2650 rpm, consumes 15 W of power, and draws 0.12 A of current at 230 V / 50 Hz. It is suitable for operation in temperatures up to 40°C, making it a compact yet powerful ventilation solution.
V-P100R50CM
This 50 cm long rigid PVC pipe is designed to connect easily with fans or vents in through-wall installations. It forms a secure path for air movement, protecting it from insulation particles, dust and debris inside the wall cavity. Durable and easy to cut to length with a hand saw, it is suitable for both professional installations and DIY use.

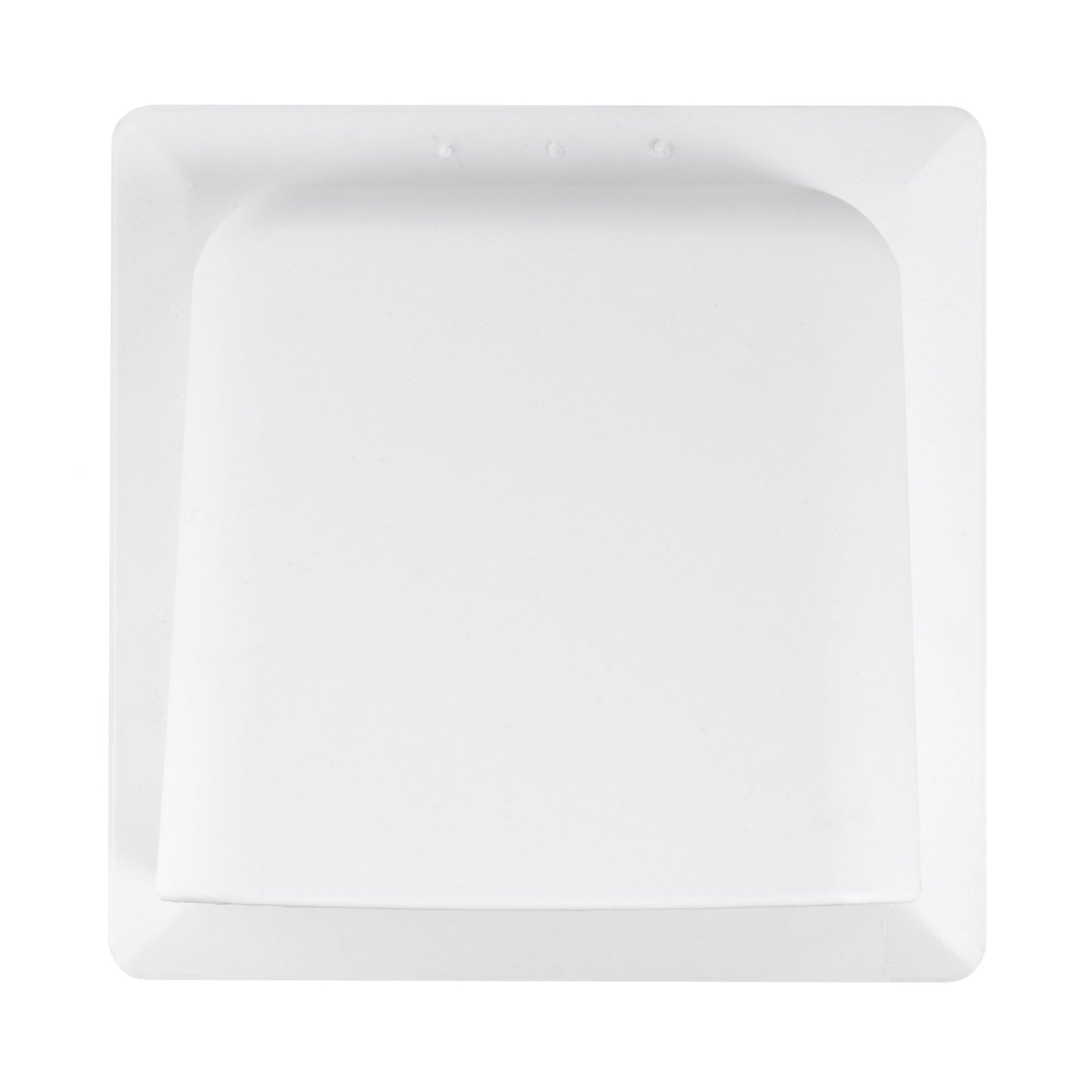

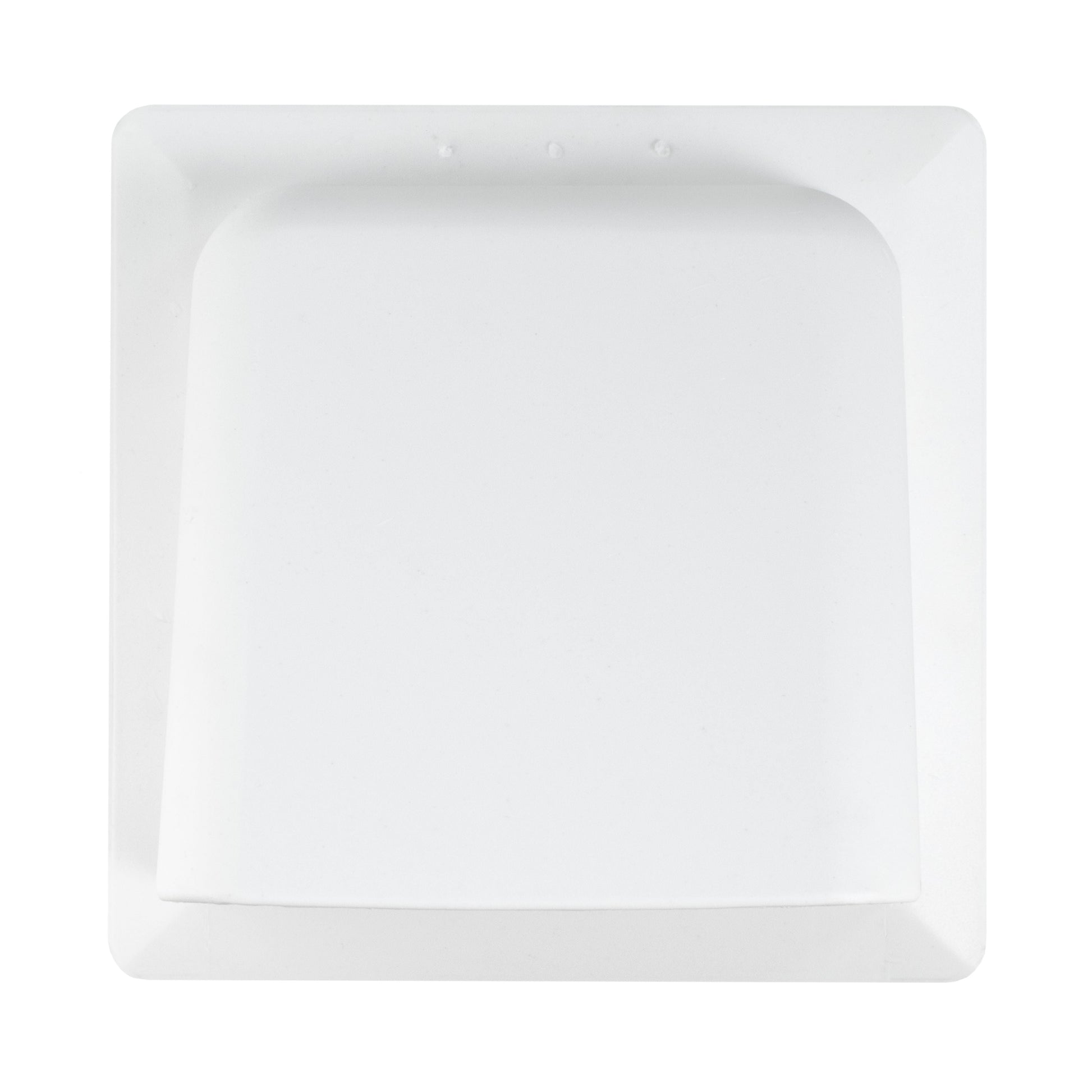

VC-KRD0201-100-W001

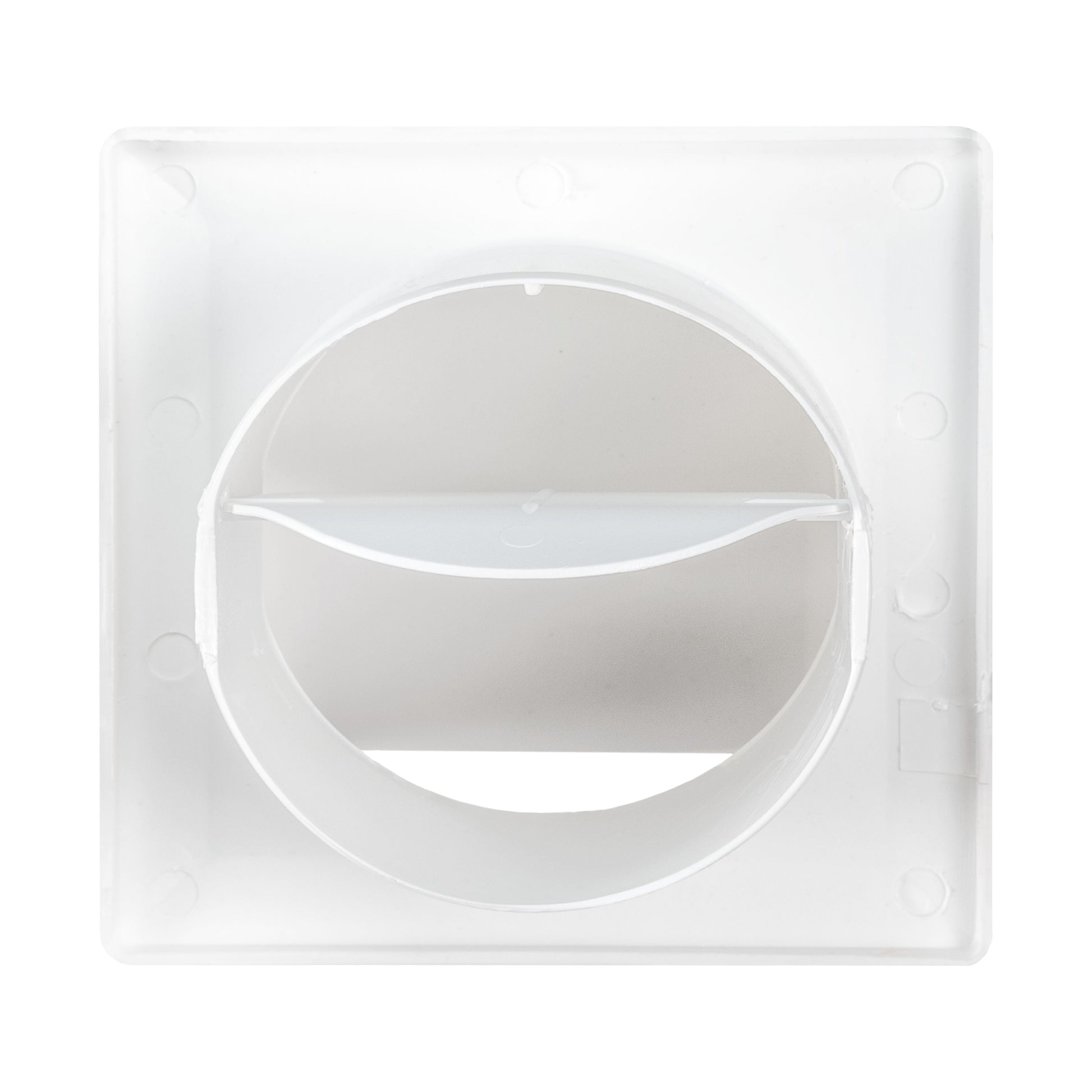

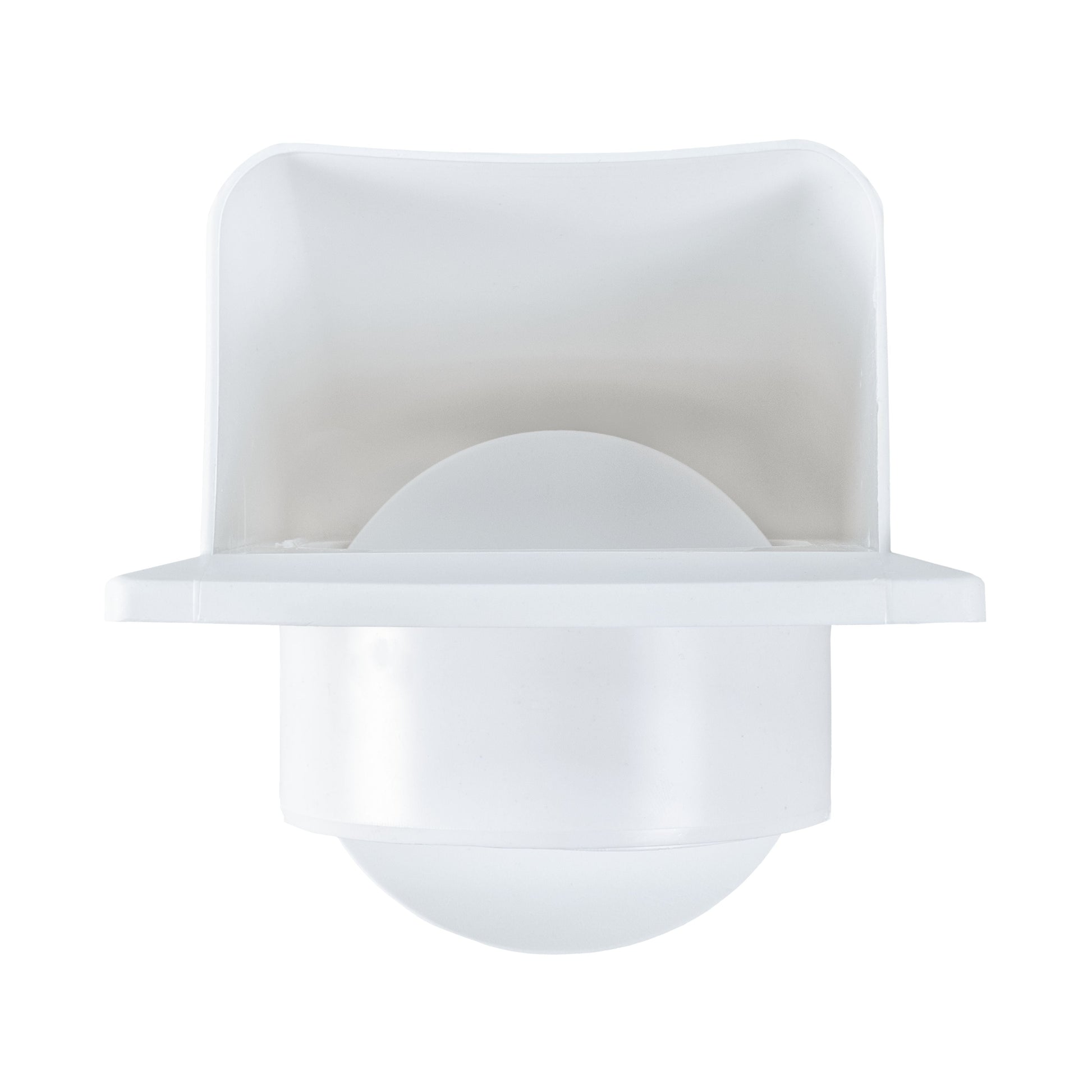

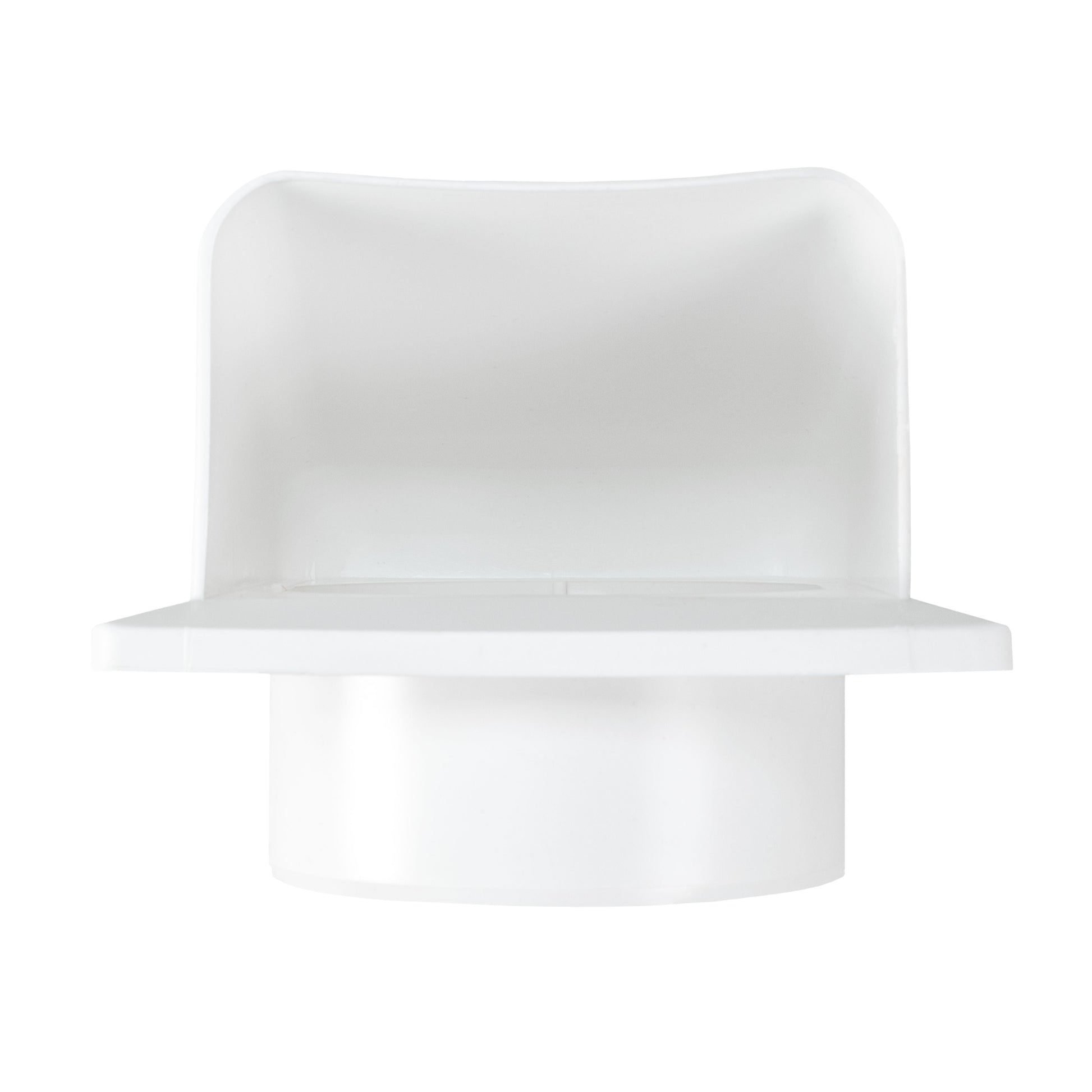

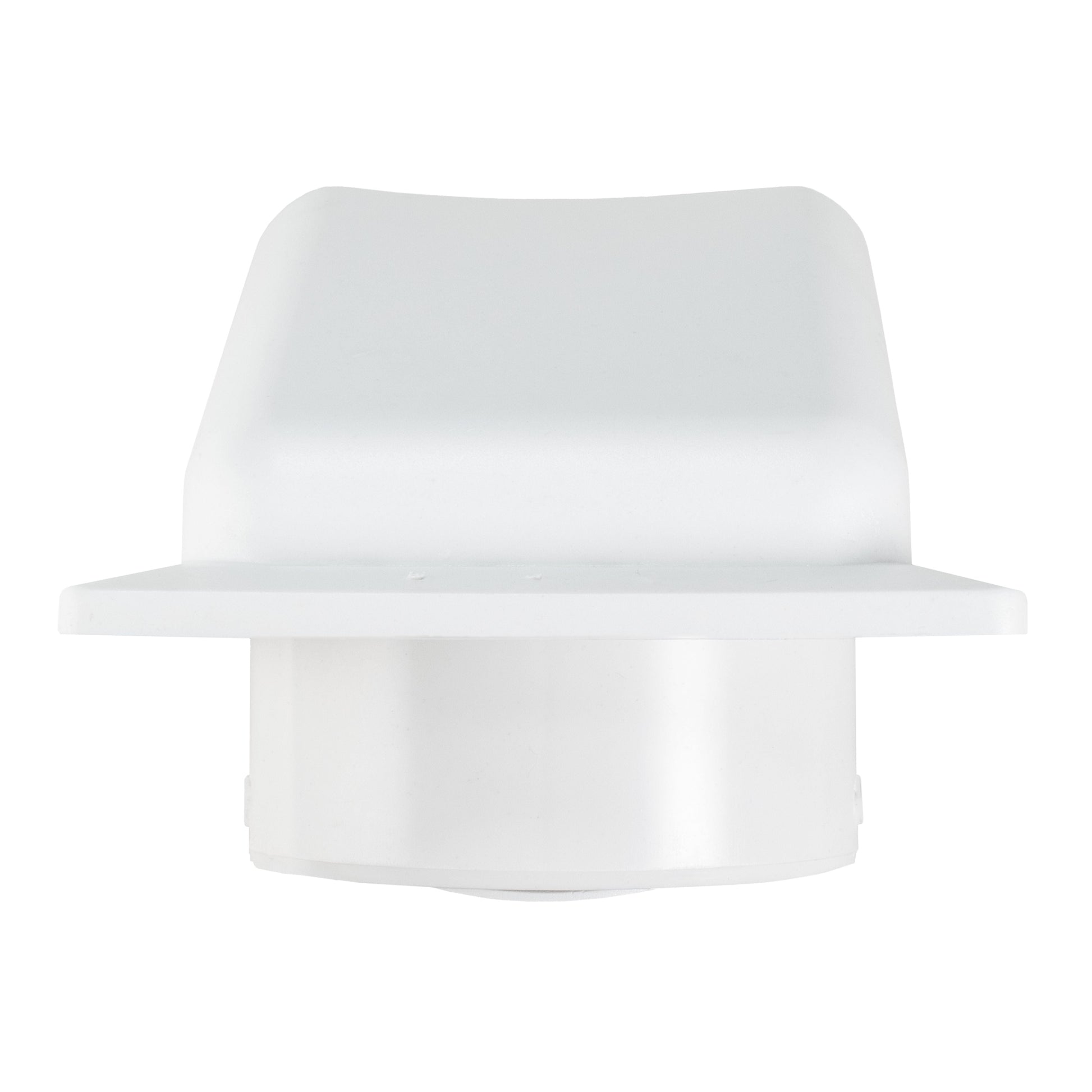

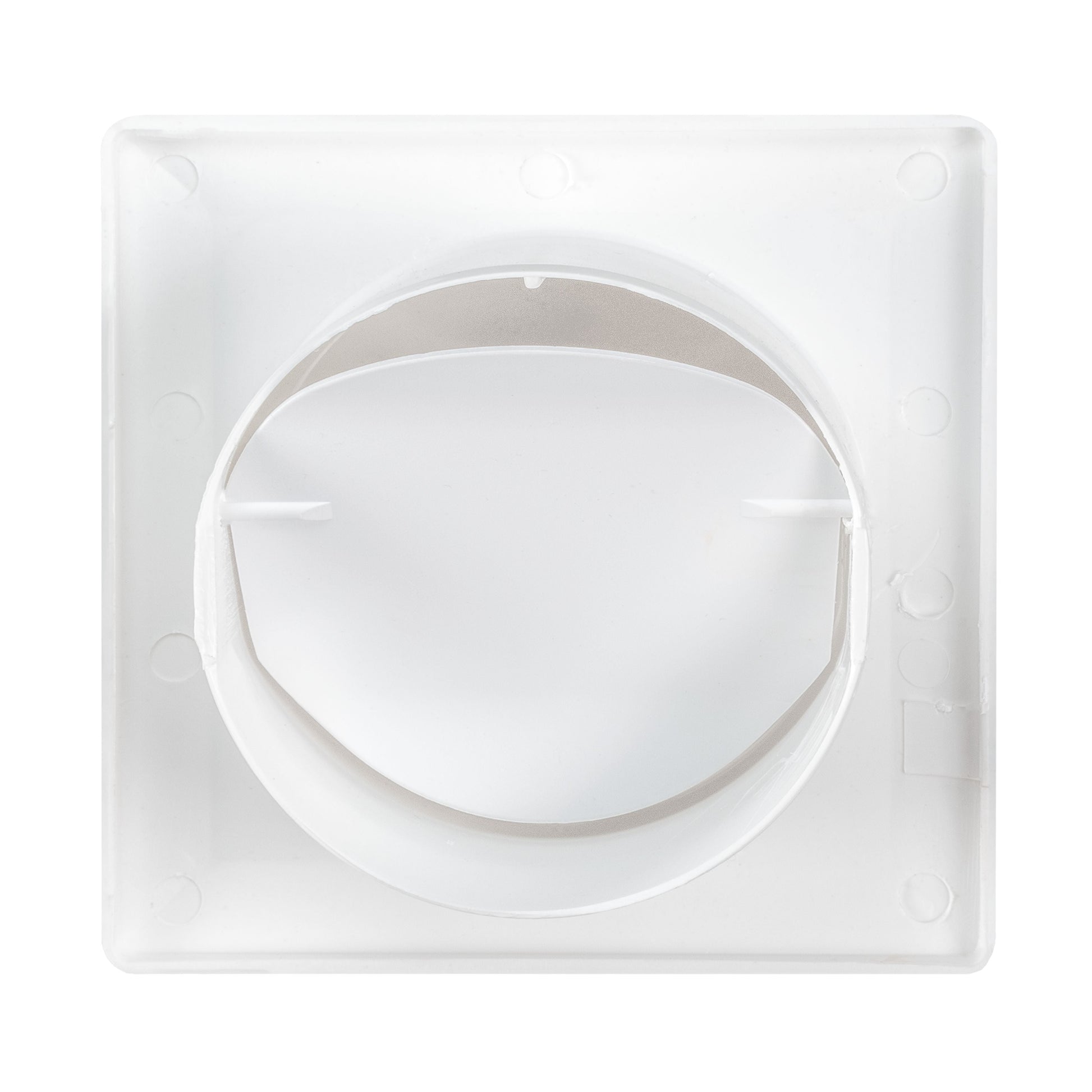

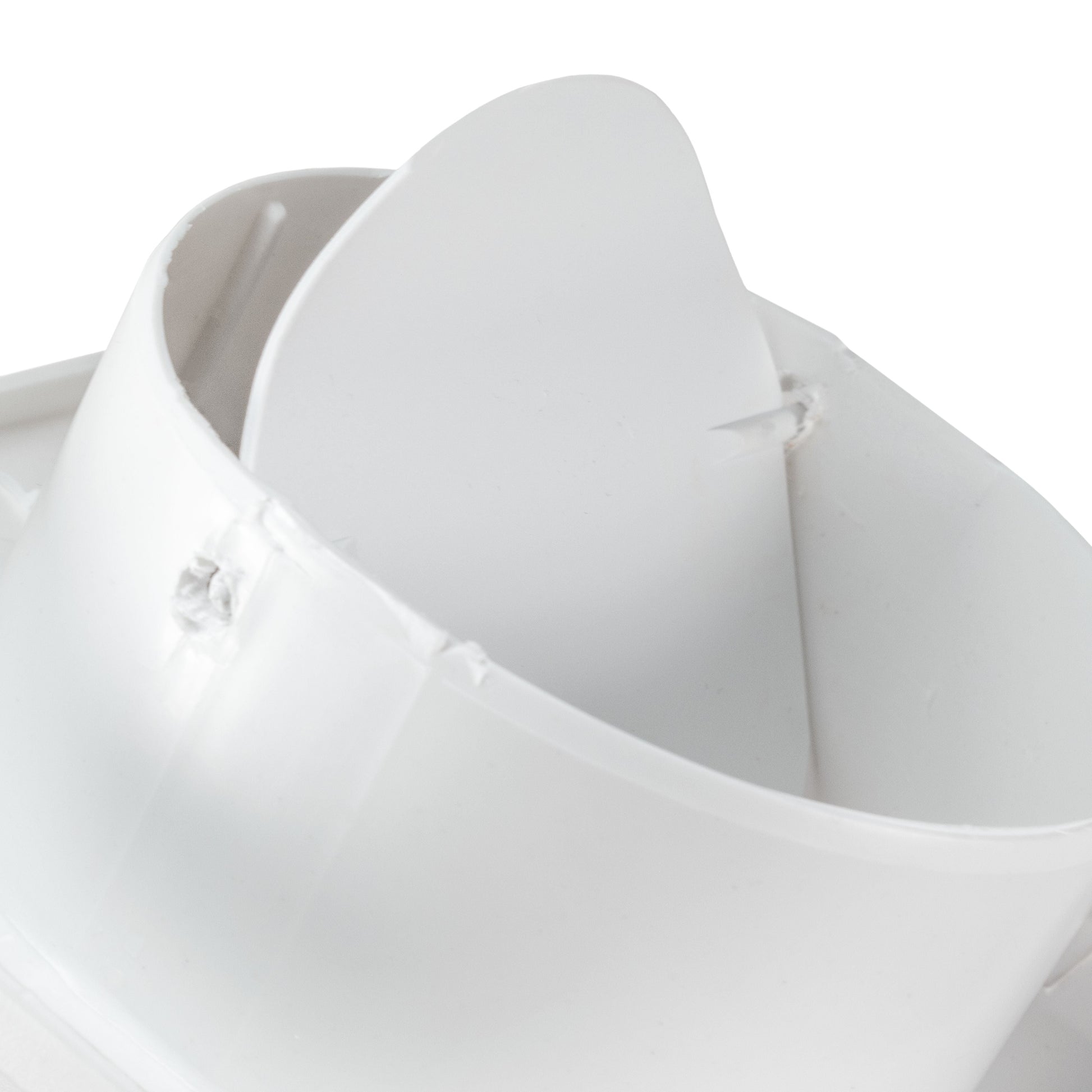

The external white louvre grille with integrated damper provides precise airflow control for home or commercial applications. The built-in damper regulates ventilation efficiency, while the louvred design prevents the entry of rain, insects and dirt—ensuring long-lasting system performance.
Made from robust ABS (Acrylonitrile Butadiene Styrene), this grille resists impact, chemicals, and weather, making it ideal for both indoor and outdoor use. Its low maintenance requirements and strong build make it a long-term solution for demanding environments.
Whether installed in HVAC systems, workshops or domestic ventilation, this grille offers durability, practicality, and clean design—supporting better indoor air quality and a more comfortable living space.
