F-STYL-100WCHP-KIT-WHITE-001

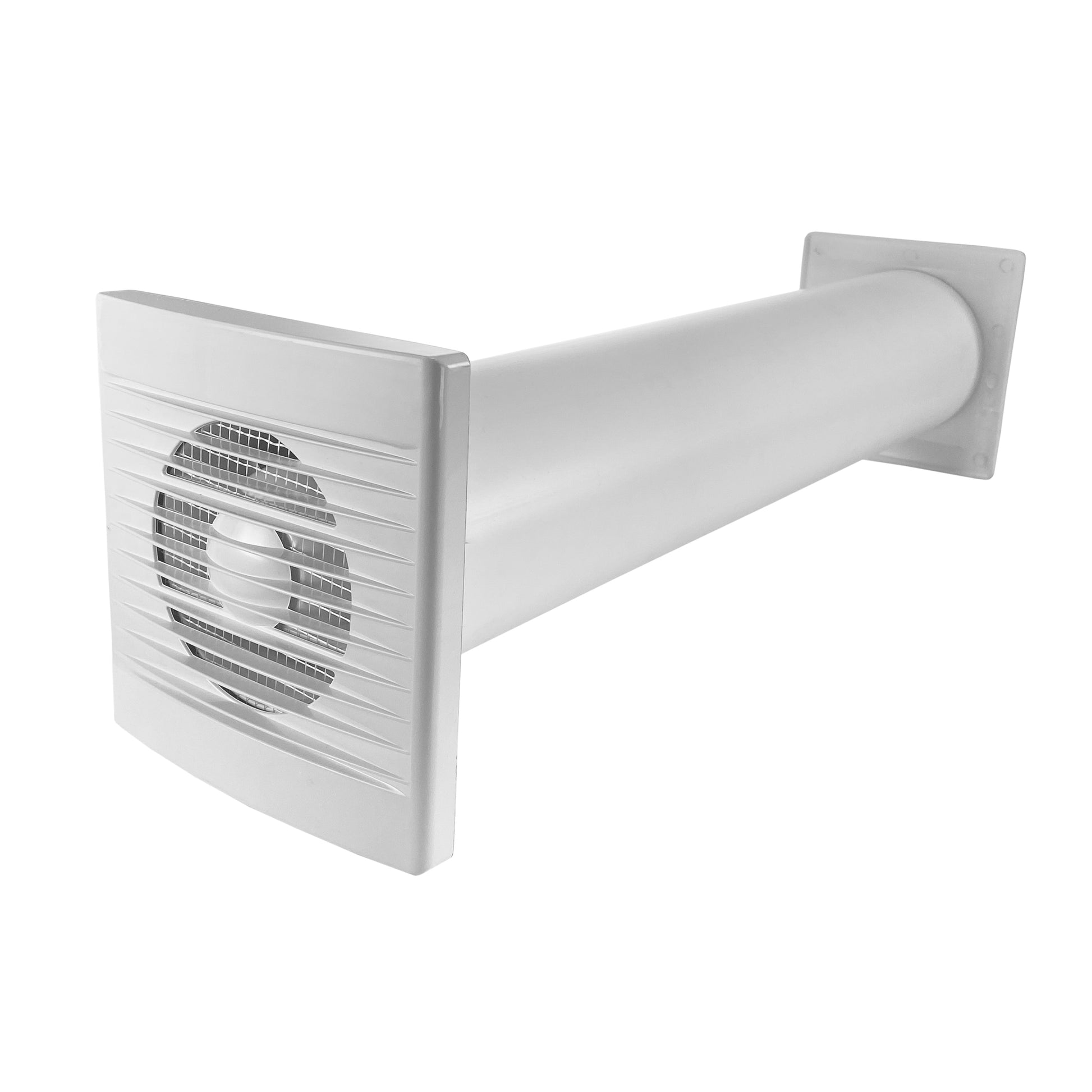

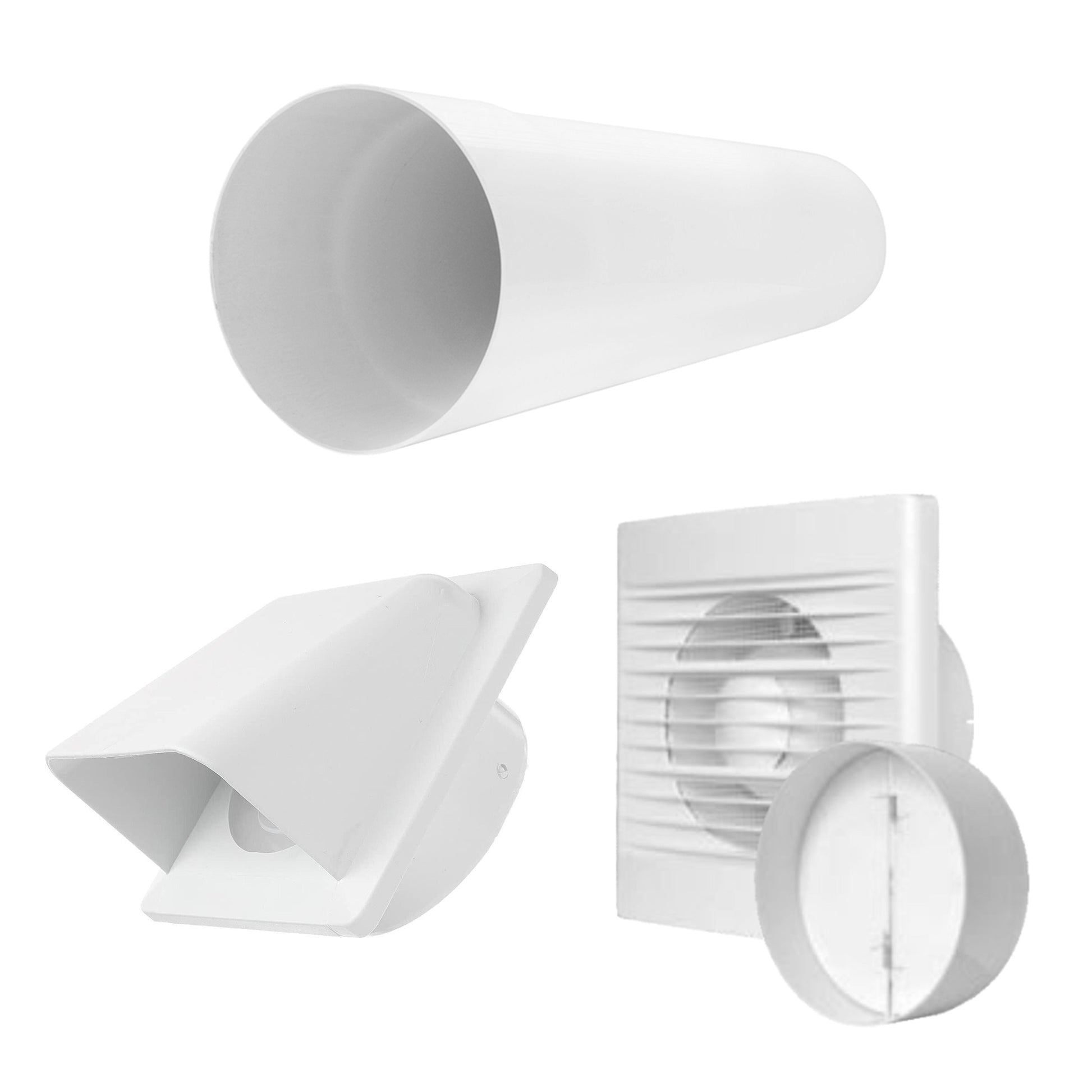

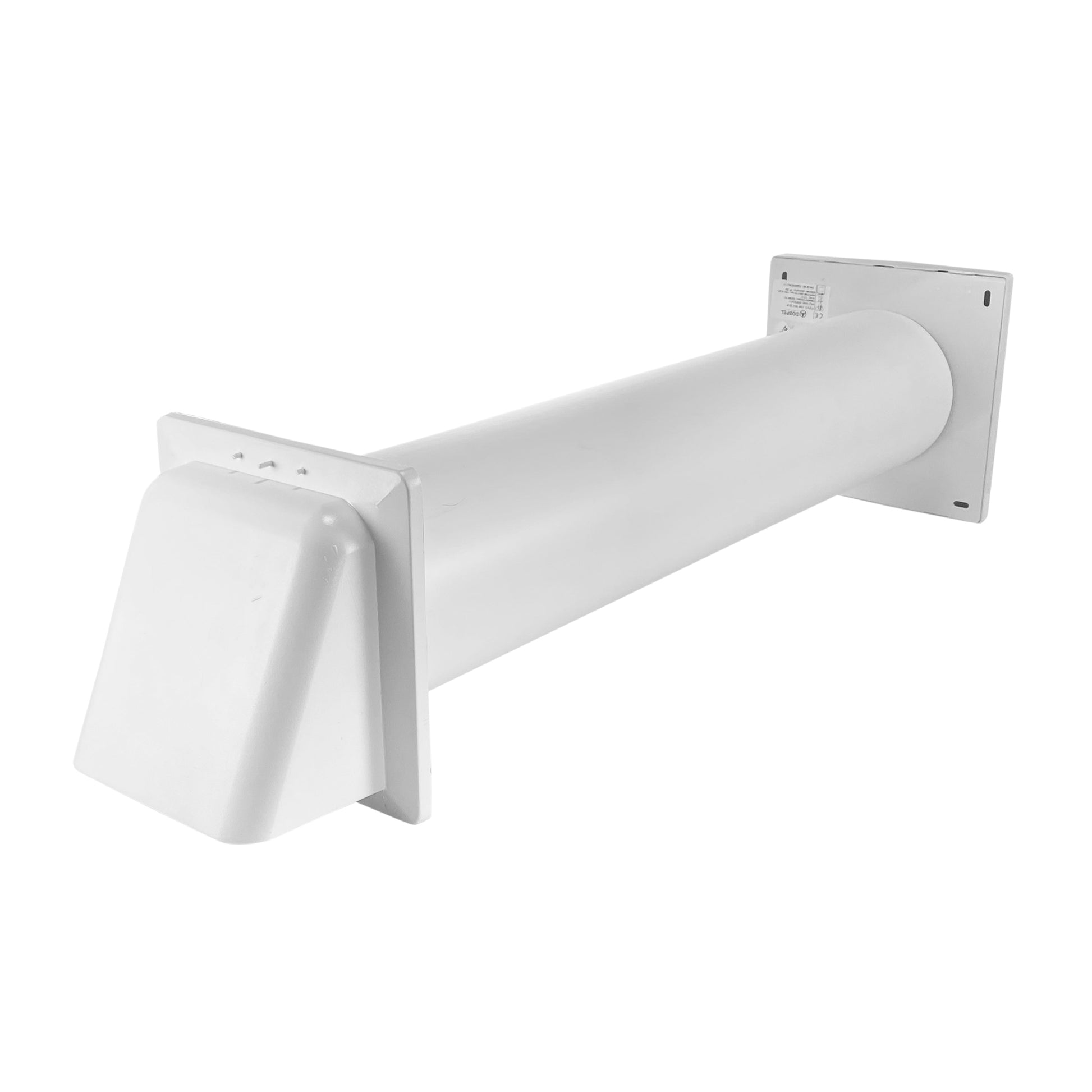

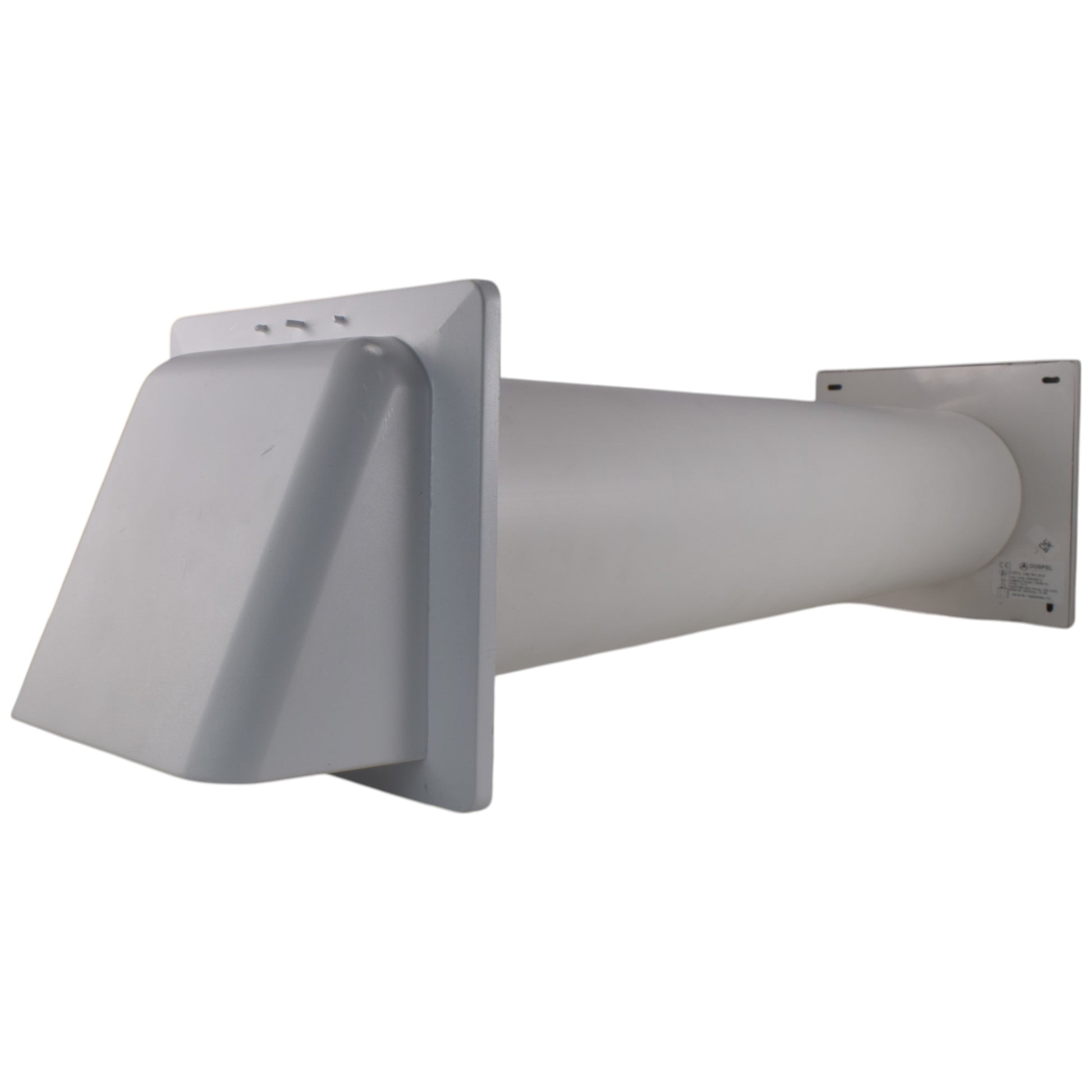

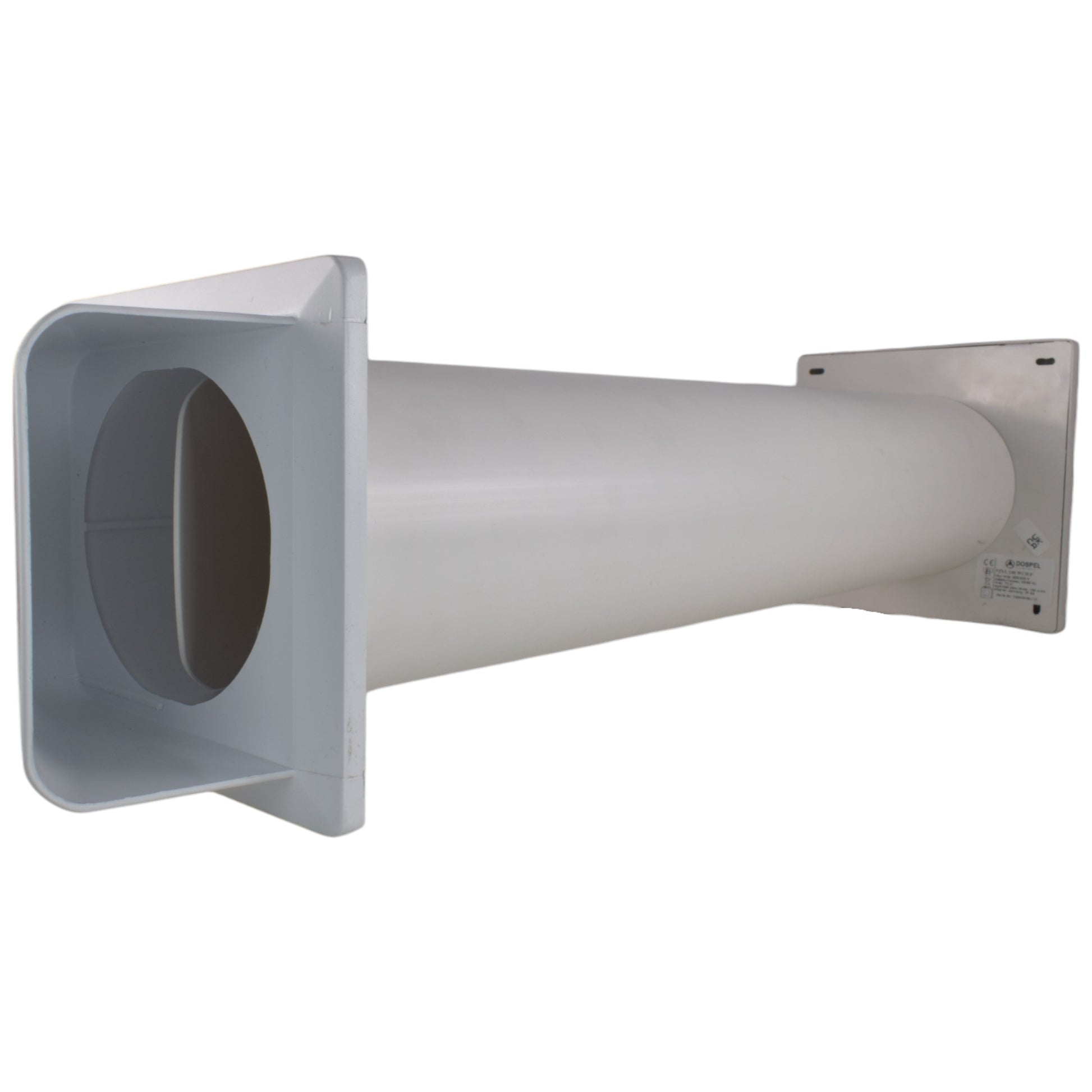

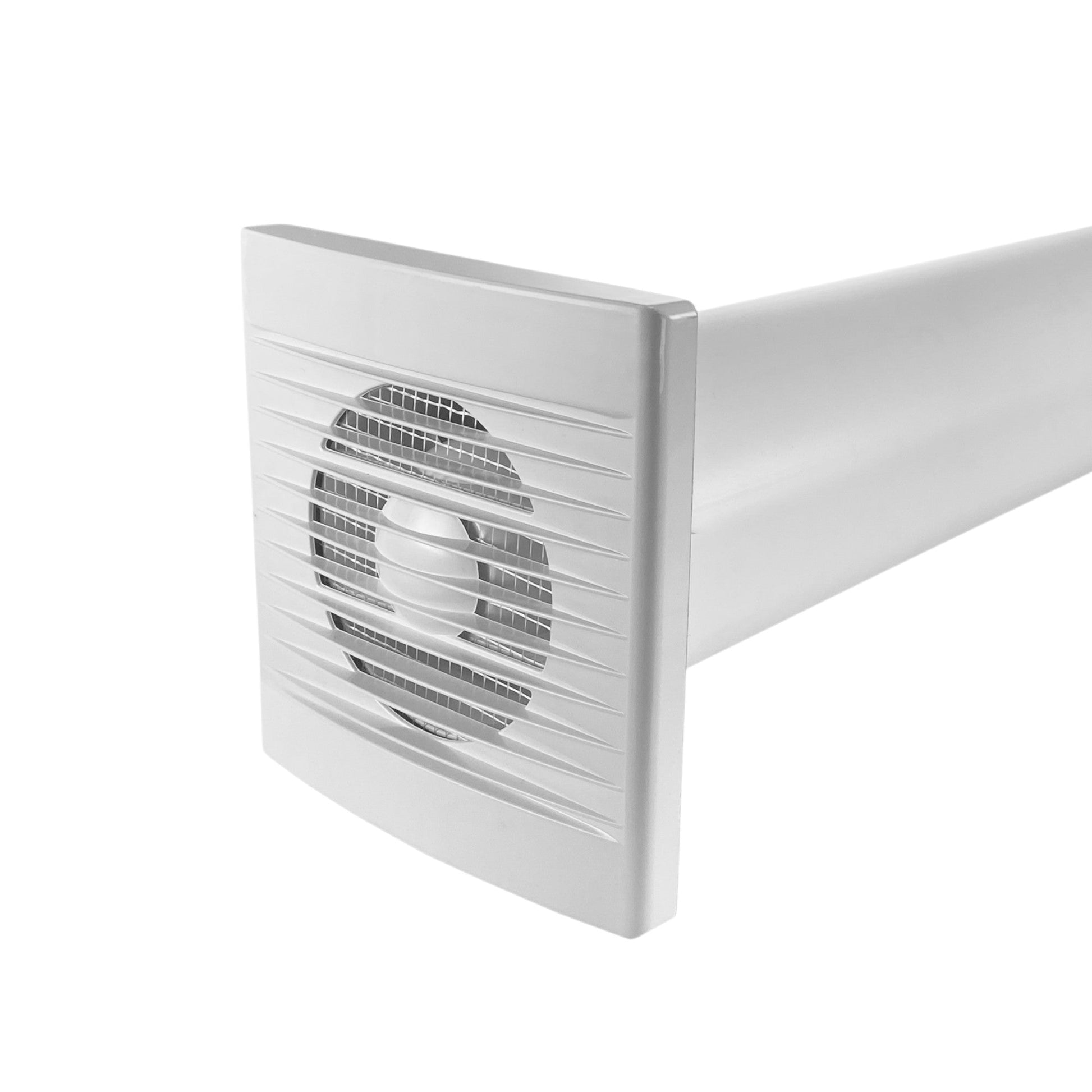

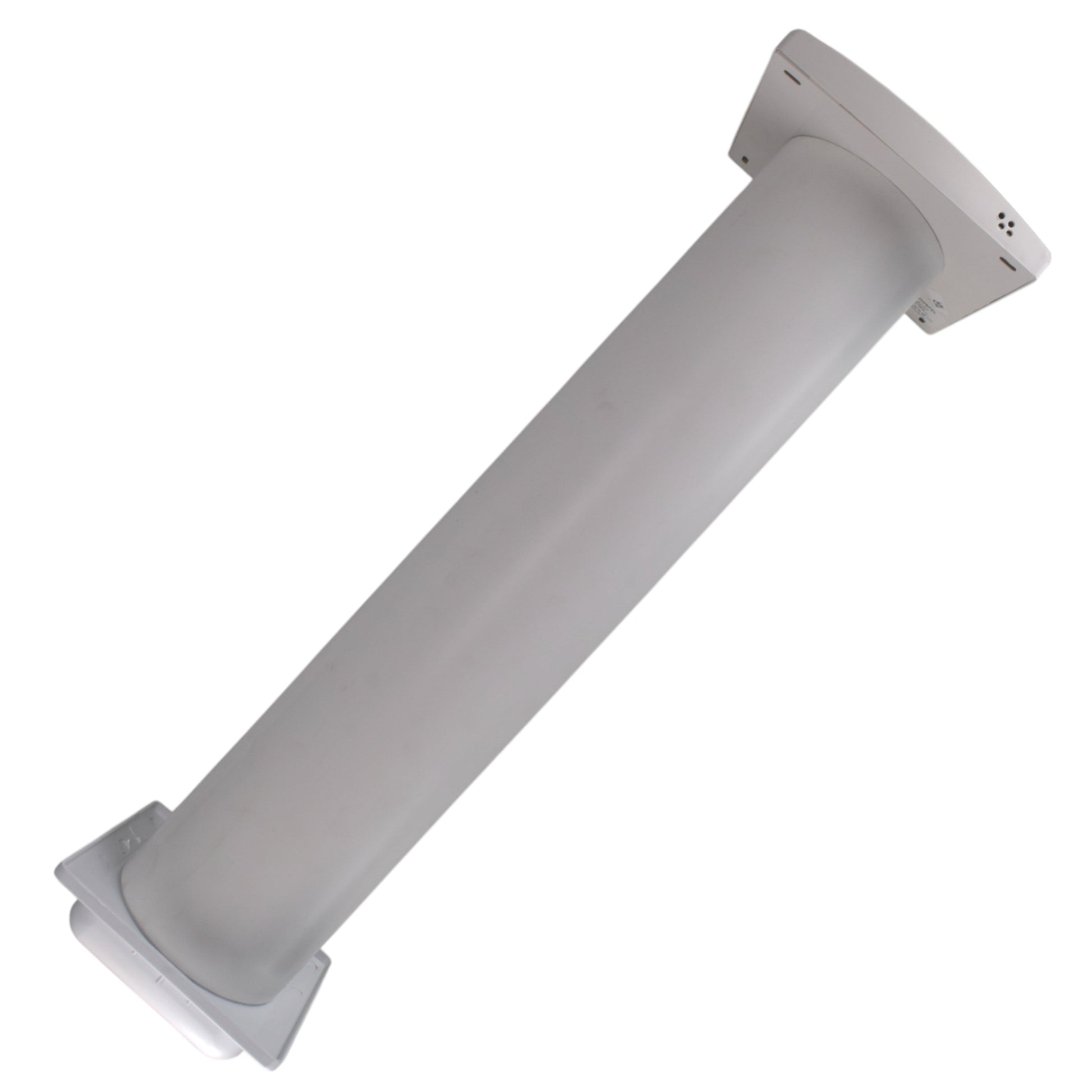

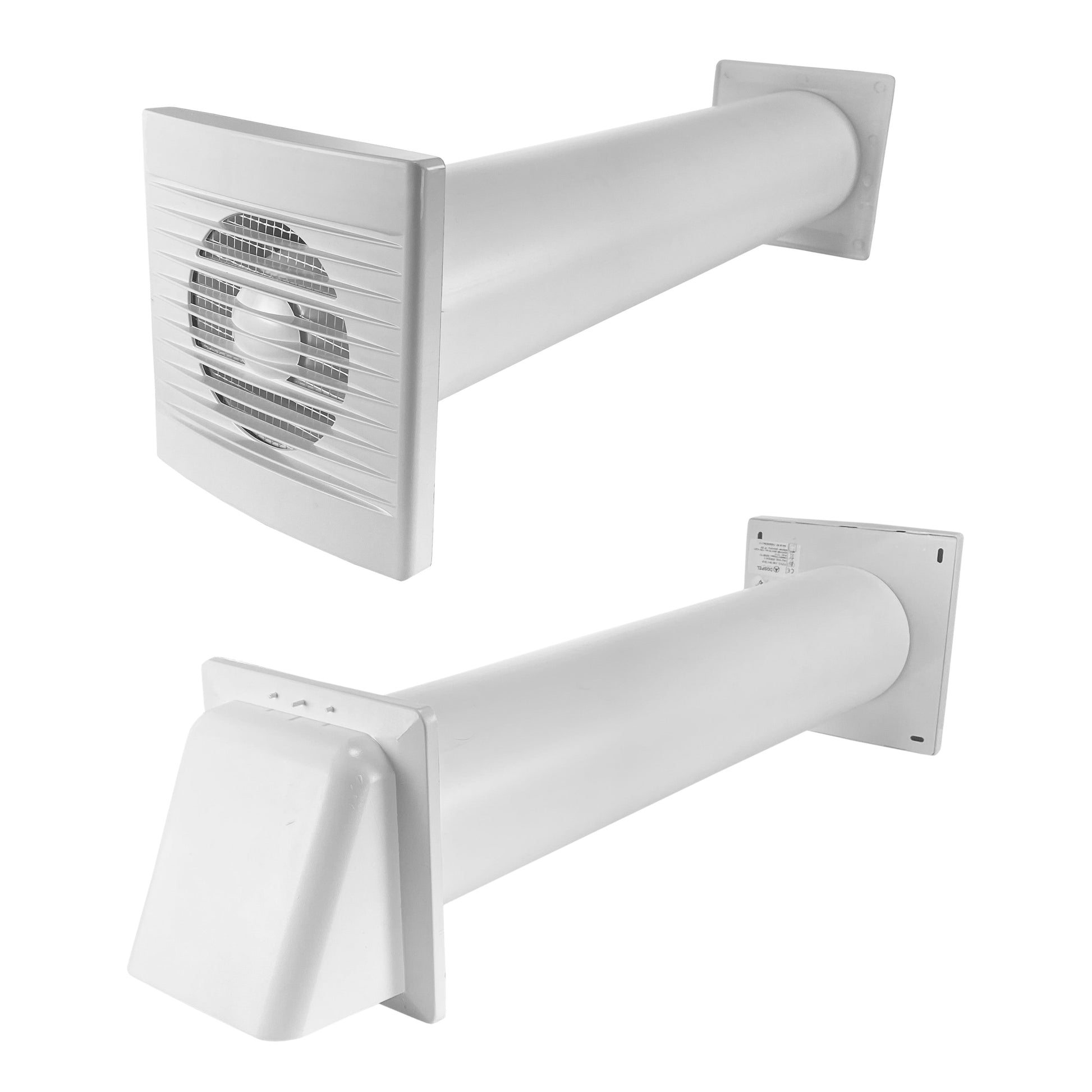

This complete wall ventilation kit includes:
- 1 x STYL 100mm Fan with Timer and Humidistat (F-STYL-100WCHP)
- 1 x 50cm Rigid PVC Ducting Pipe (V-P100R50CM)
- 1 x White External Hooded Louvre Vent (VC-KRD0201-100-W)

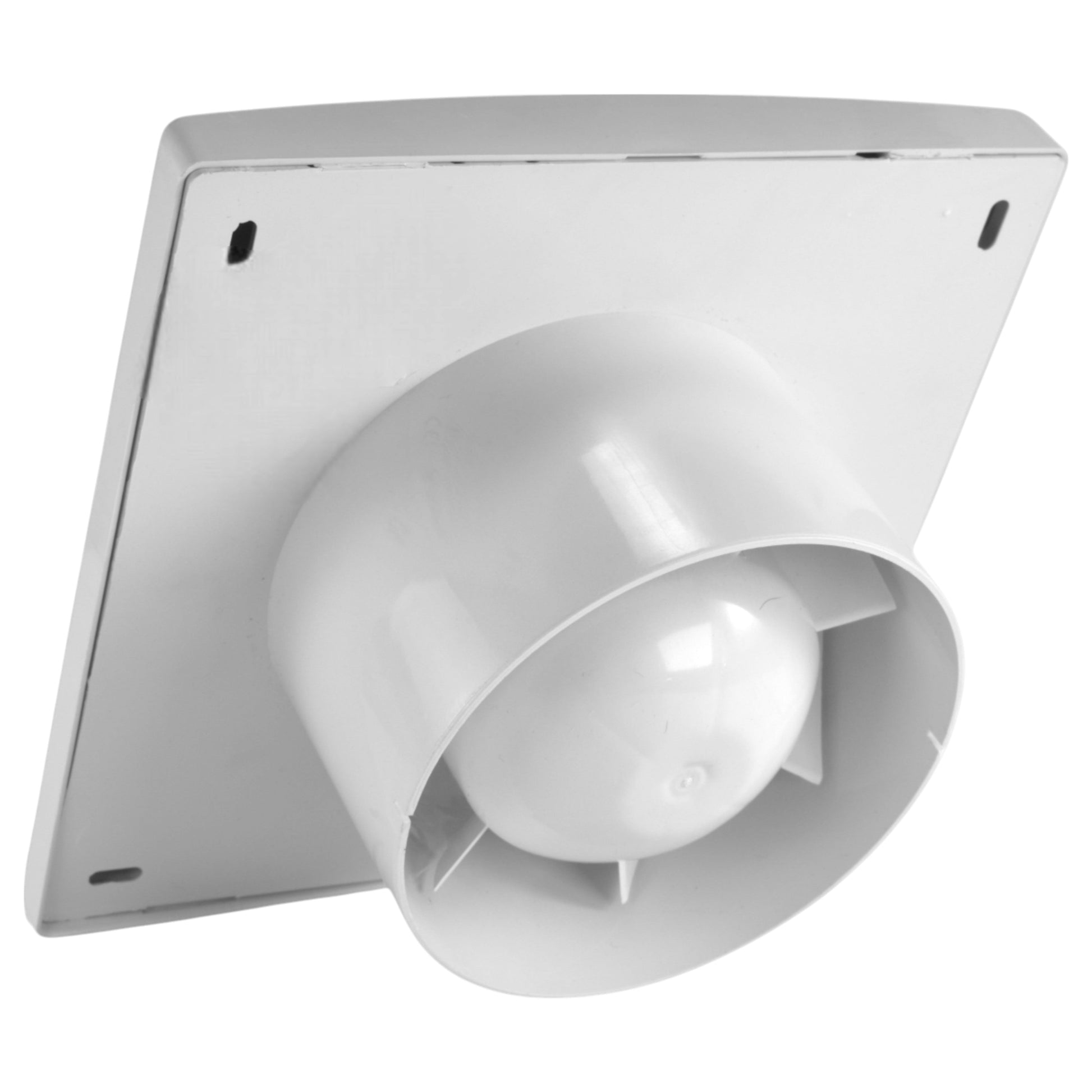

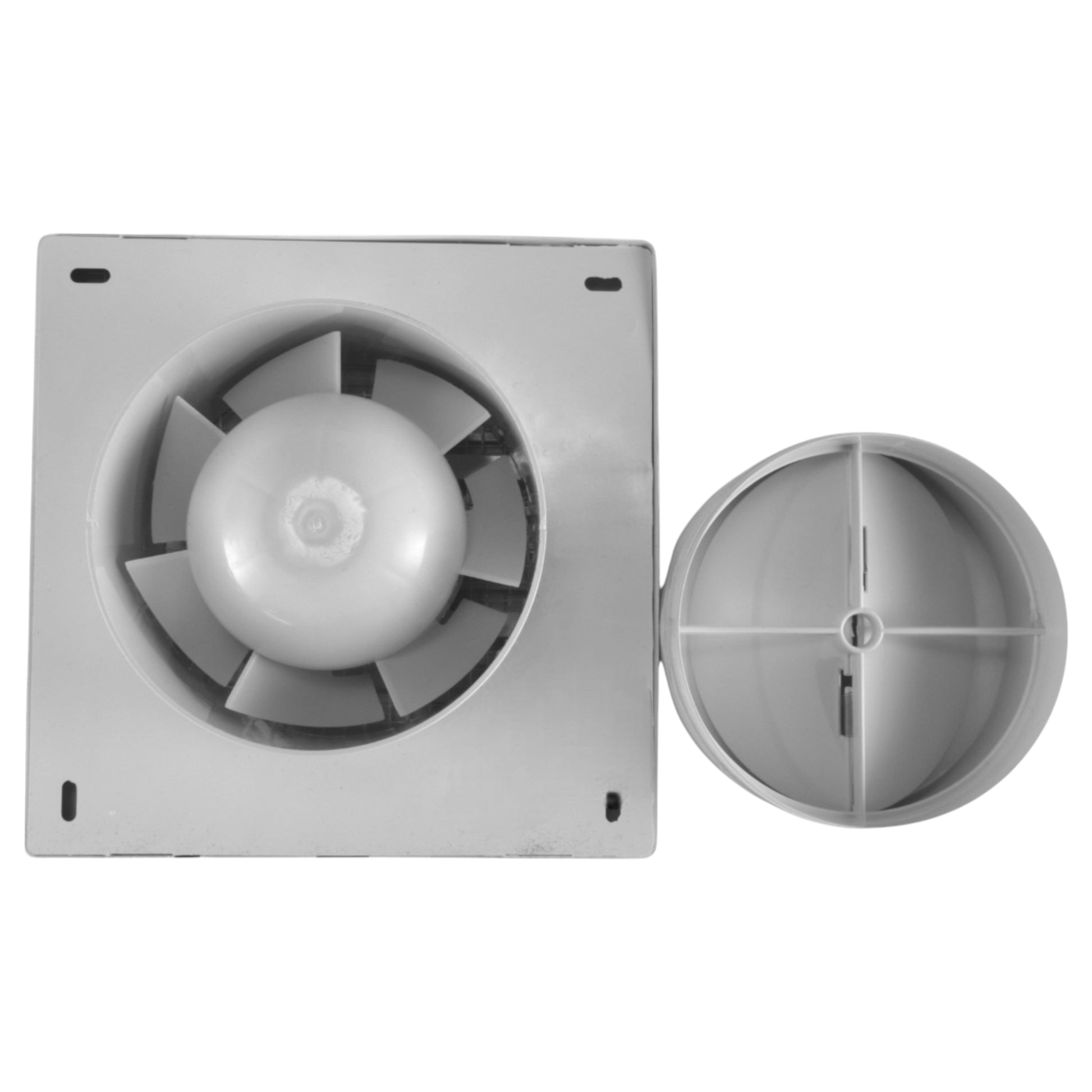

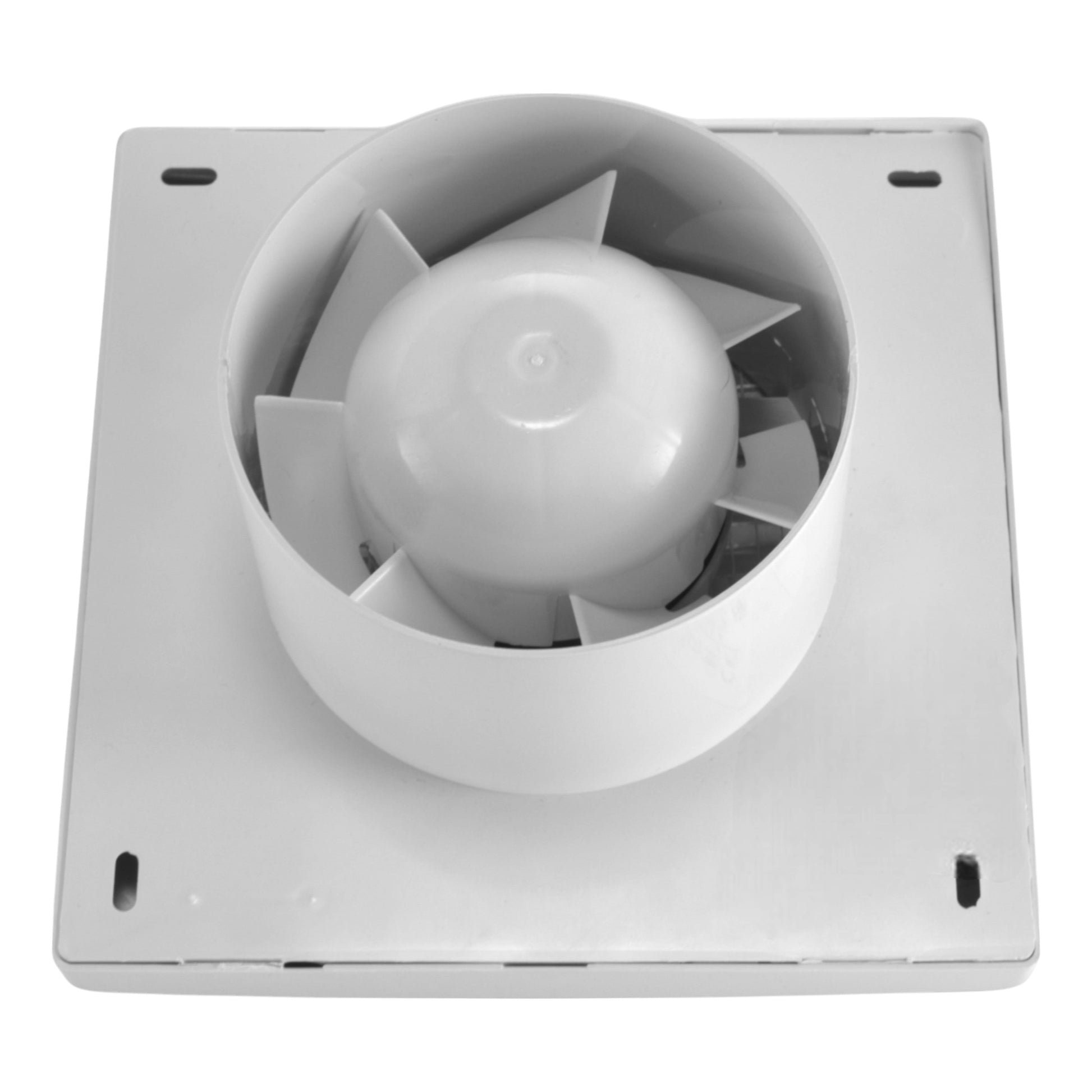

F-STYL-100WCHP

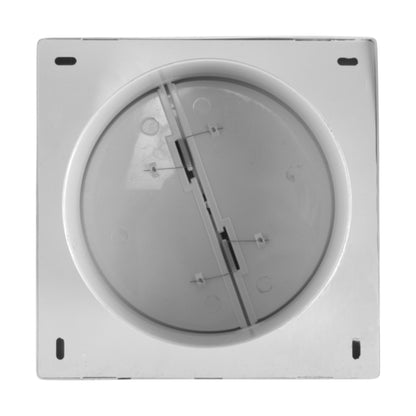

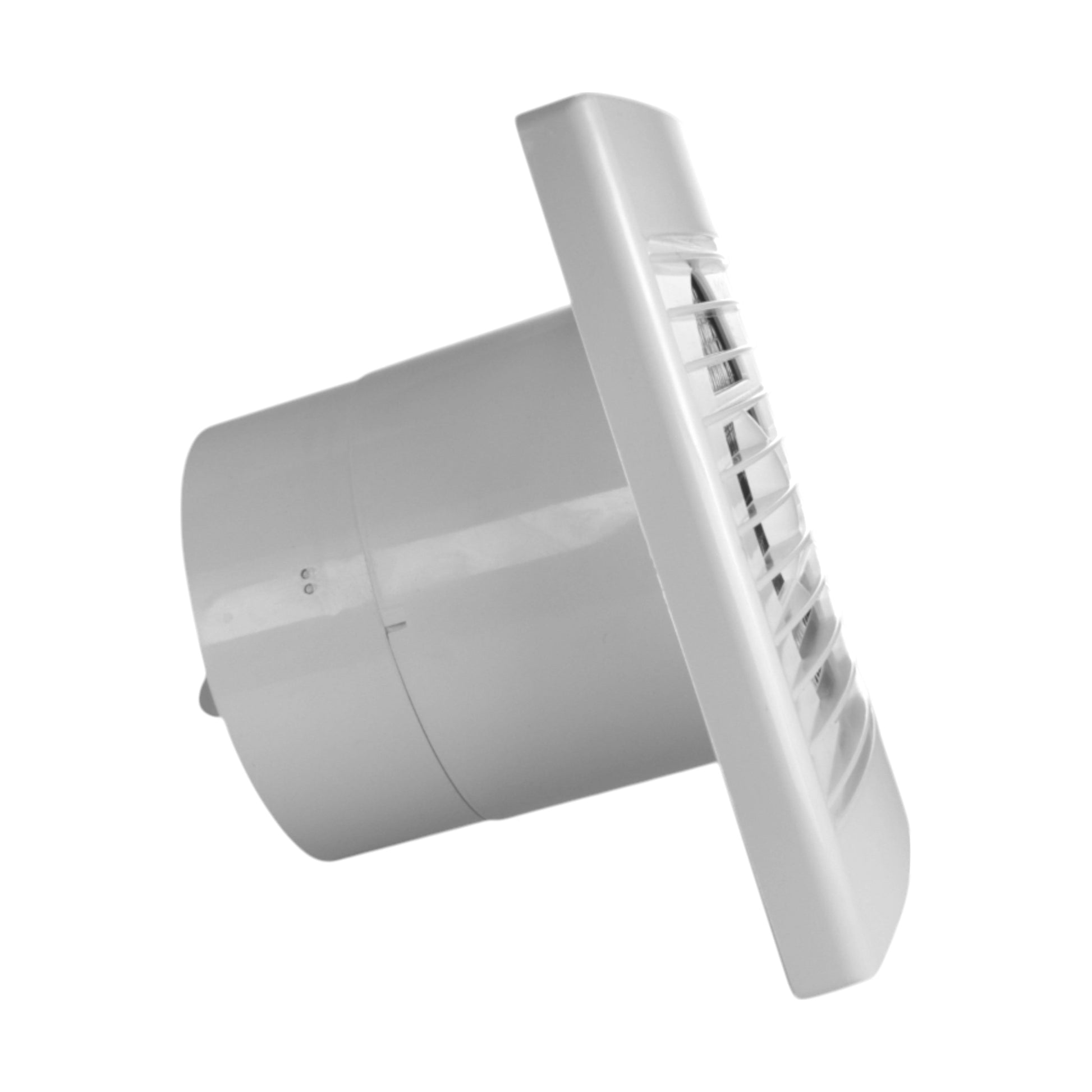

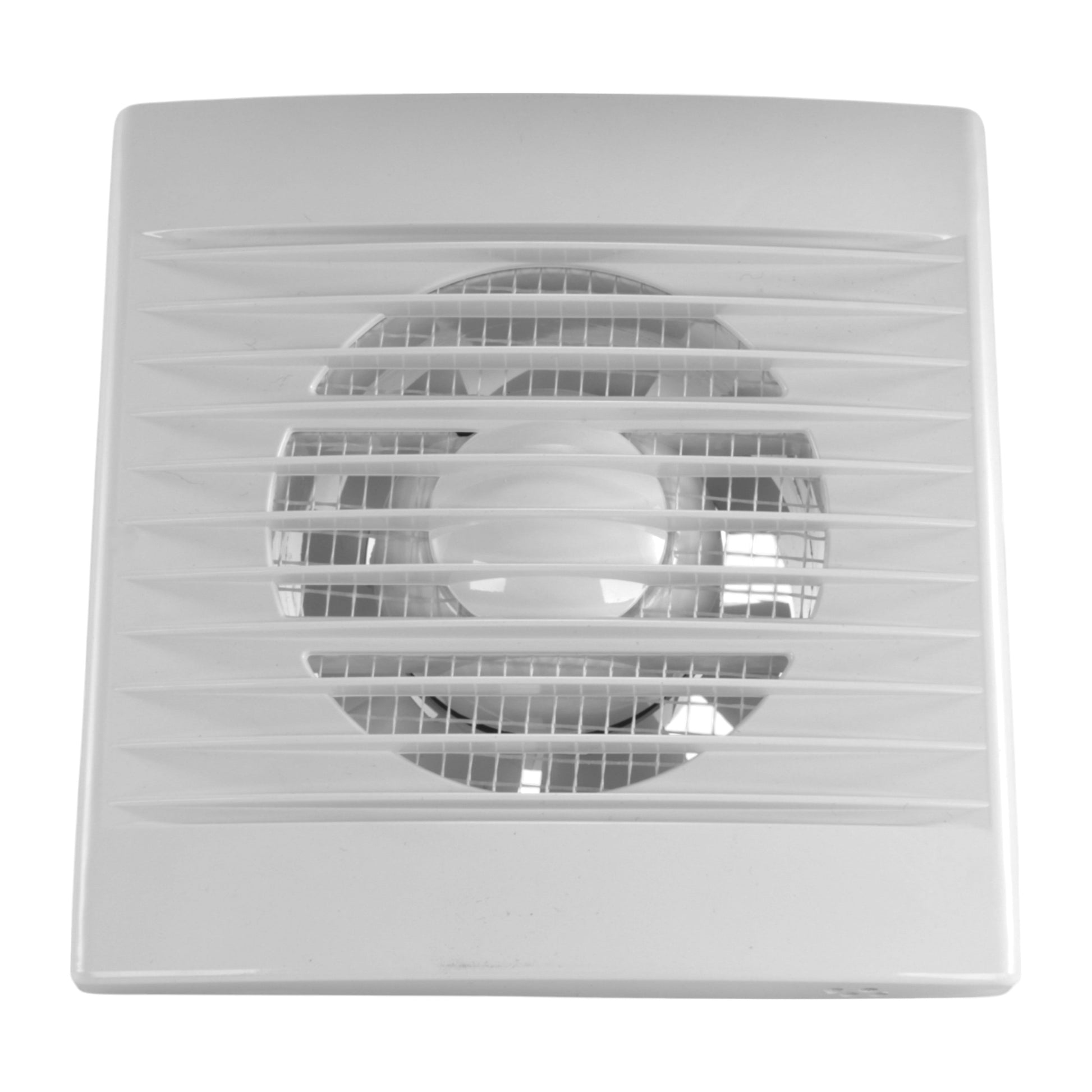

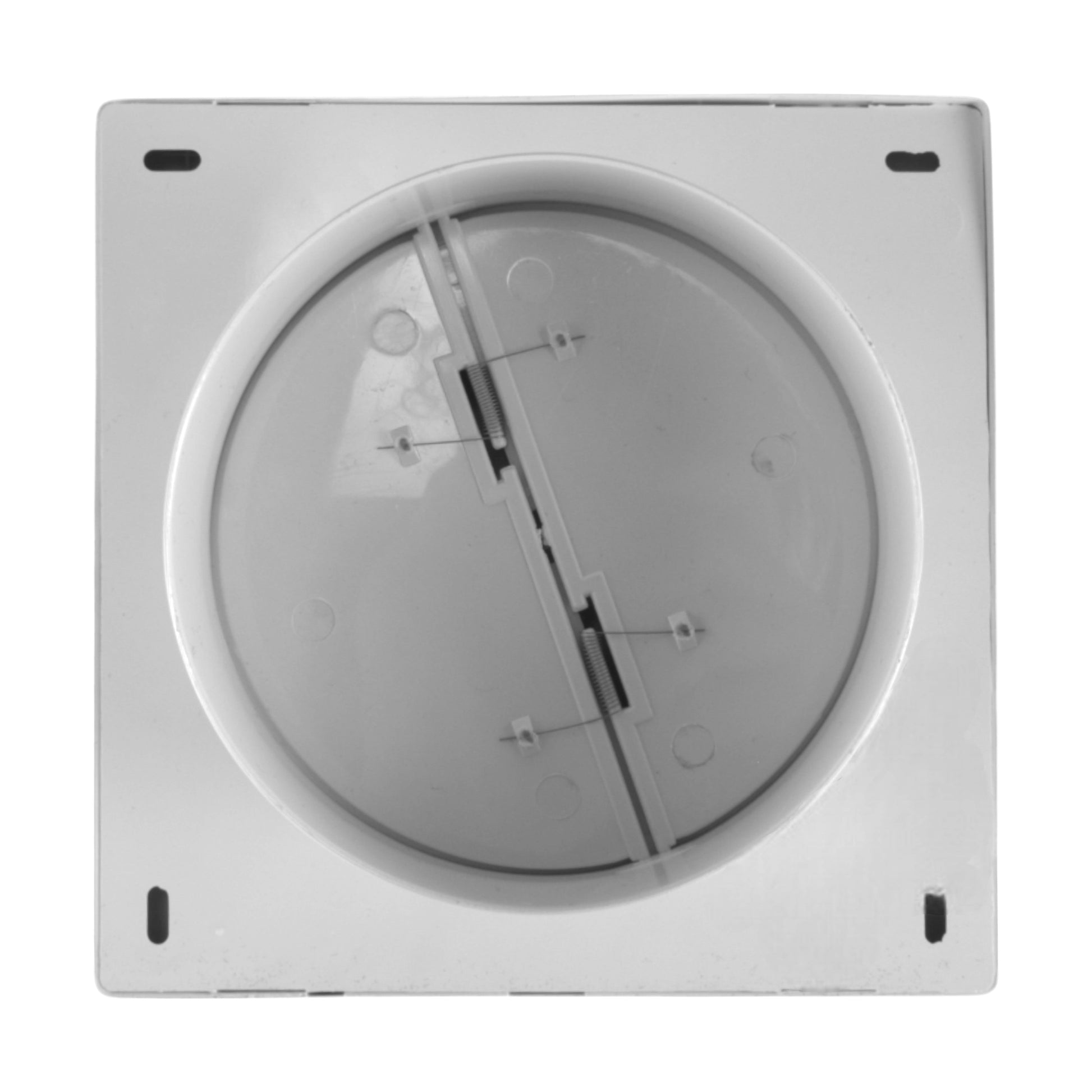

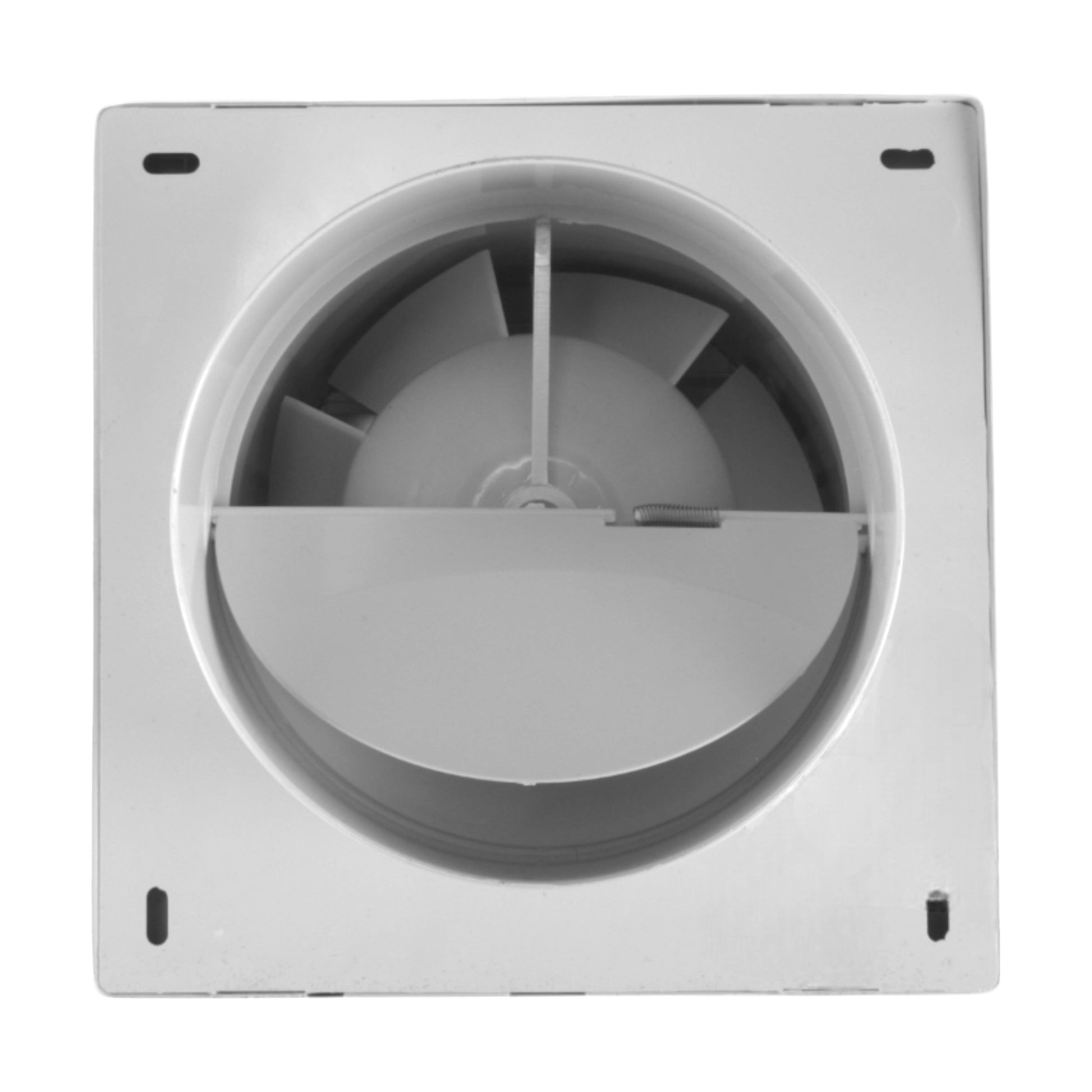

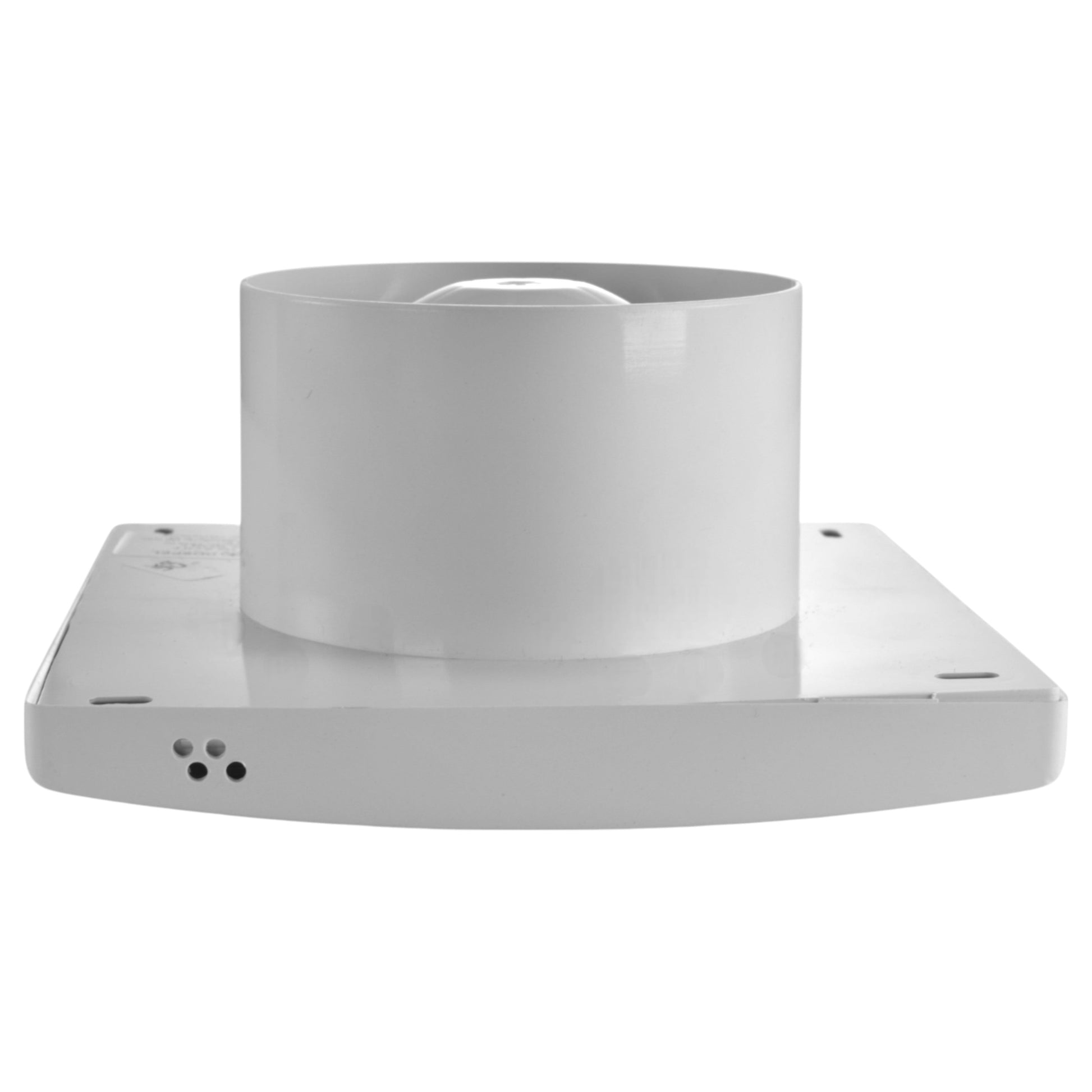

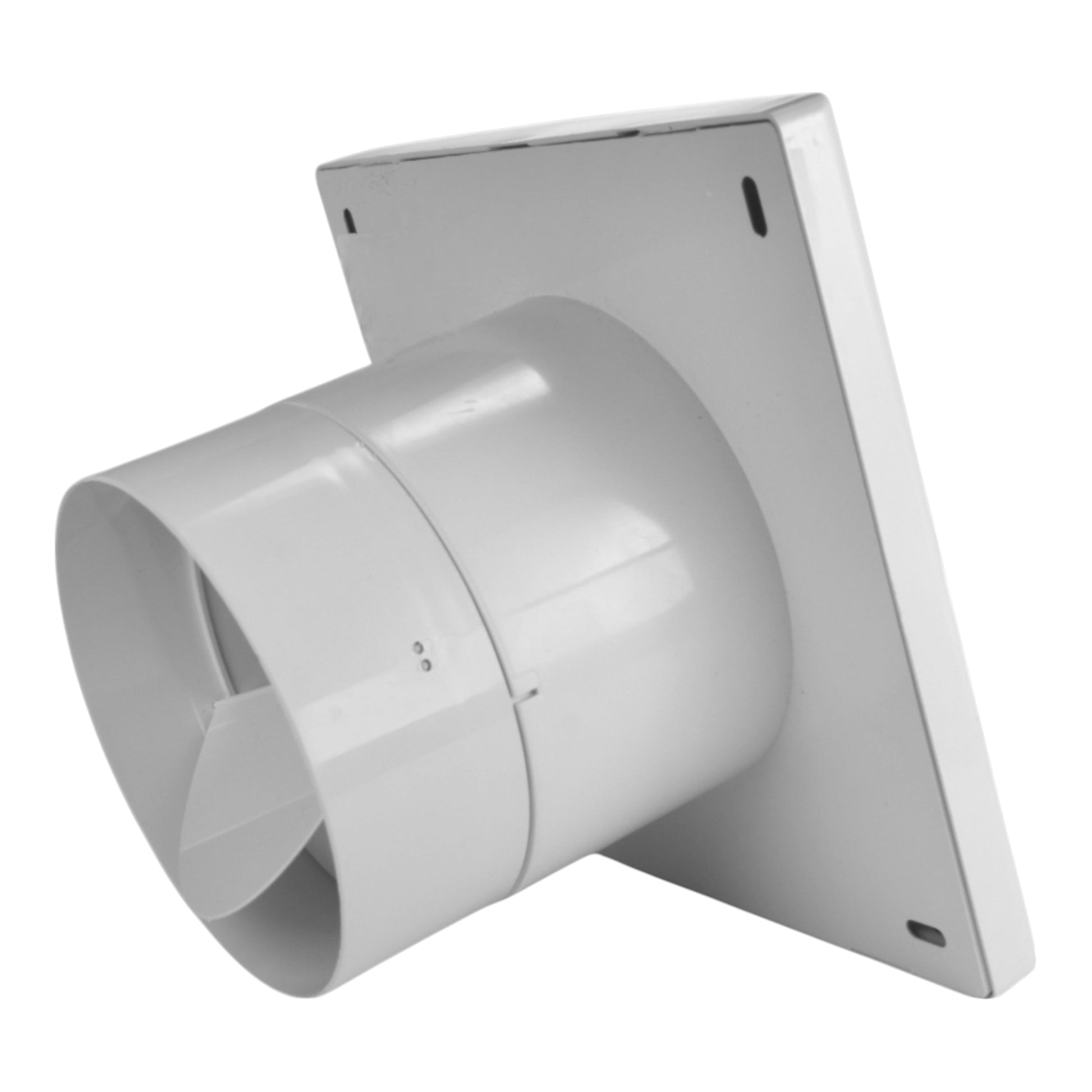

The STYL axial wall fan is a modern and compact extraction unit, designed for efficient one-way air movement. Equipped with a non-return damper, it prevents backdrafts and blocks insects from entering, ensuring cleaner indoor air. Its tough ABS plastic body provides lightweight durability, ideal for use in homes or light commercial spaces.
With a 15-watt motor, this fan delivers an airflow rate of 100 m³/h and static pressure of 34 Pa (3.47 mm H₂O). The motor runs at 2650 rpm and operates quietly at just 40 dB(A), combining performance with comfort. It works on a standard 230 V/50 Hz power supply, drawing just 0.12 A, and is rated for up to 40°C operating temperature with insulation class II, making it both energy-efficient and safe.
V-P100R50CM

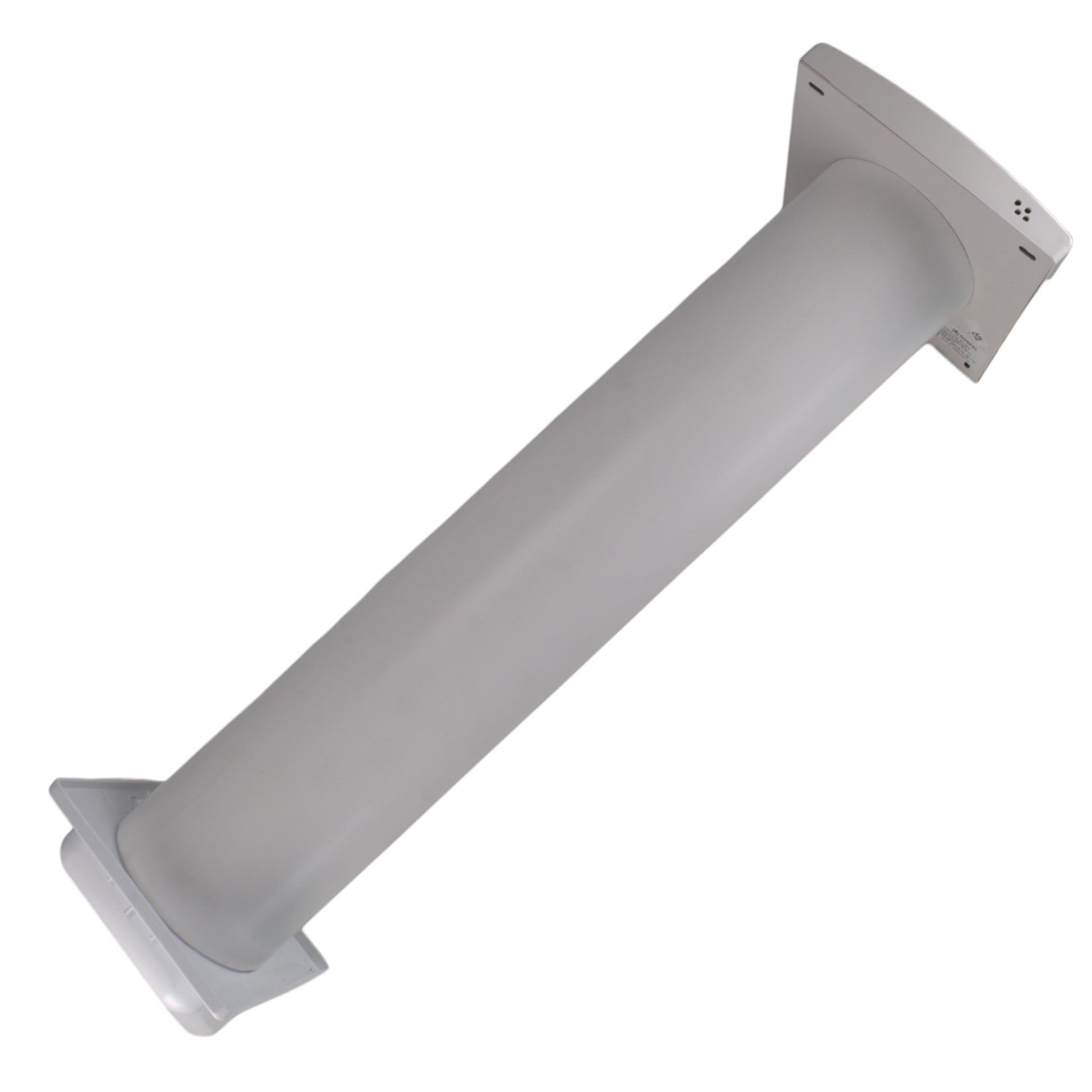

This 50 cm rigid round ducting pipe is made of strong PVC and is designed to fit between the fan and external vent. It creates a direct, protected air passage through the wall, keeping out dust and insulation material. The pipe is easily cut to length with a hand saw and suits both DIY and professional installations.

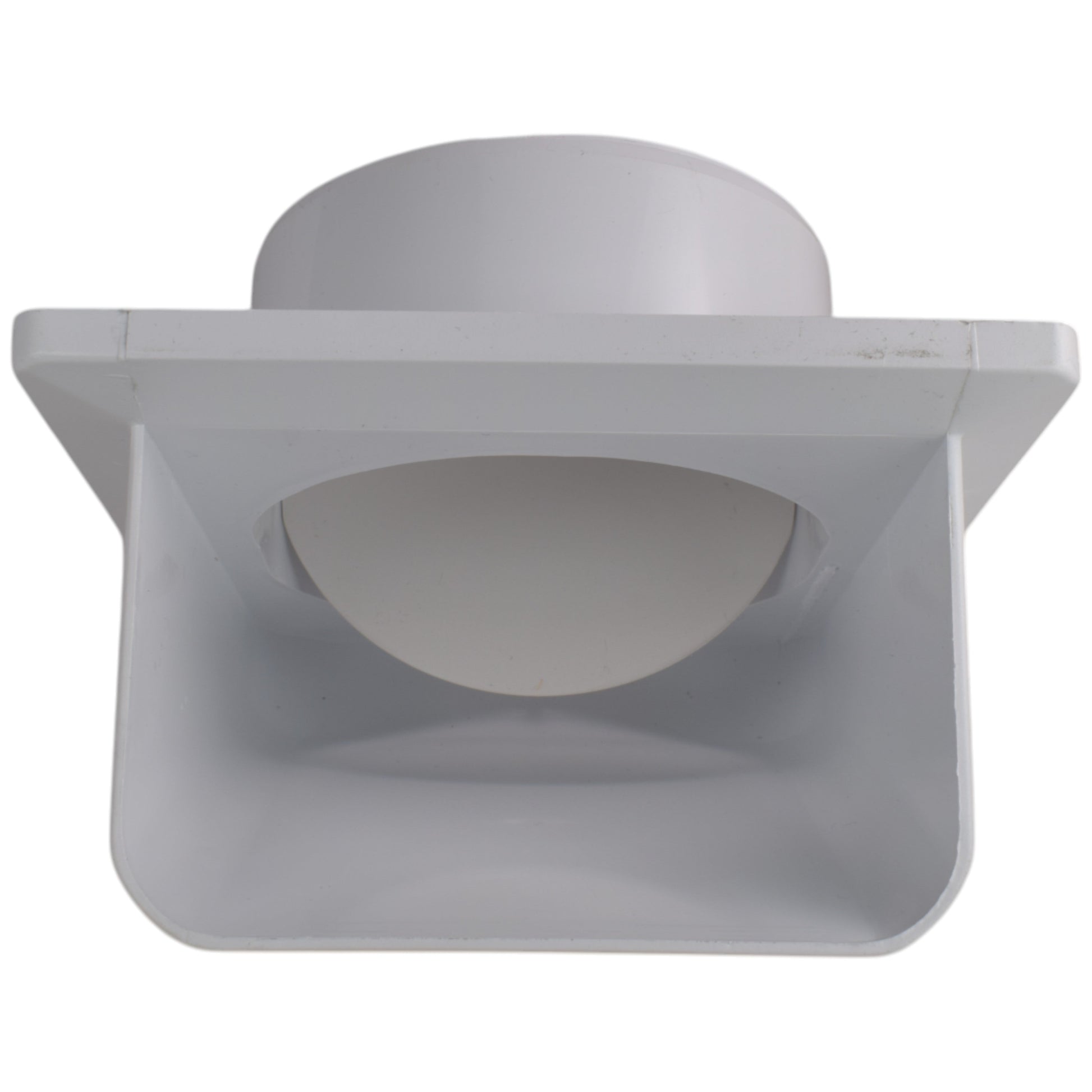

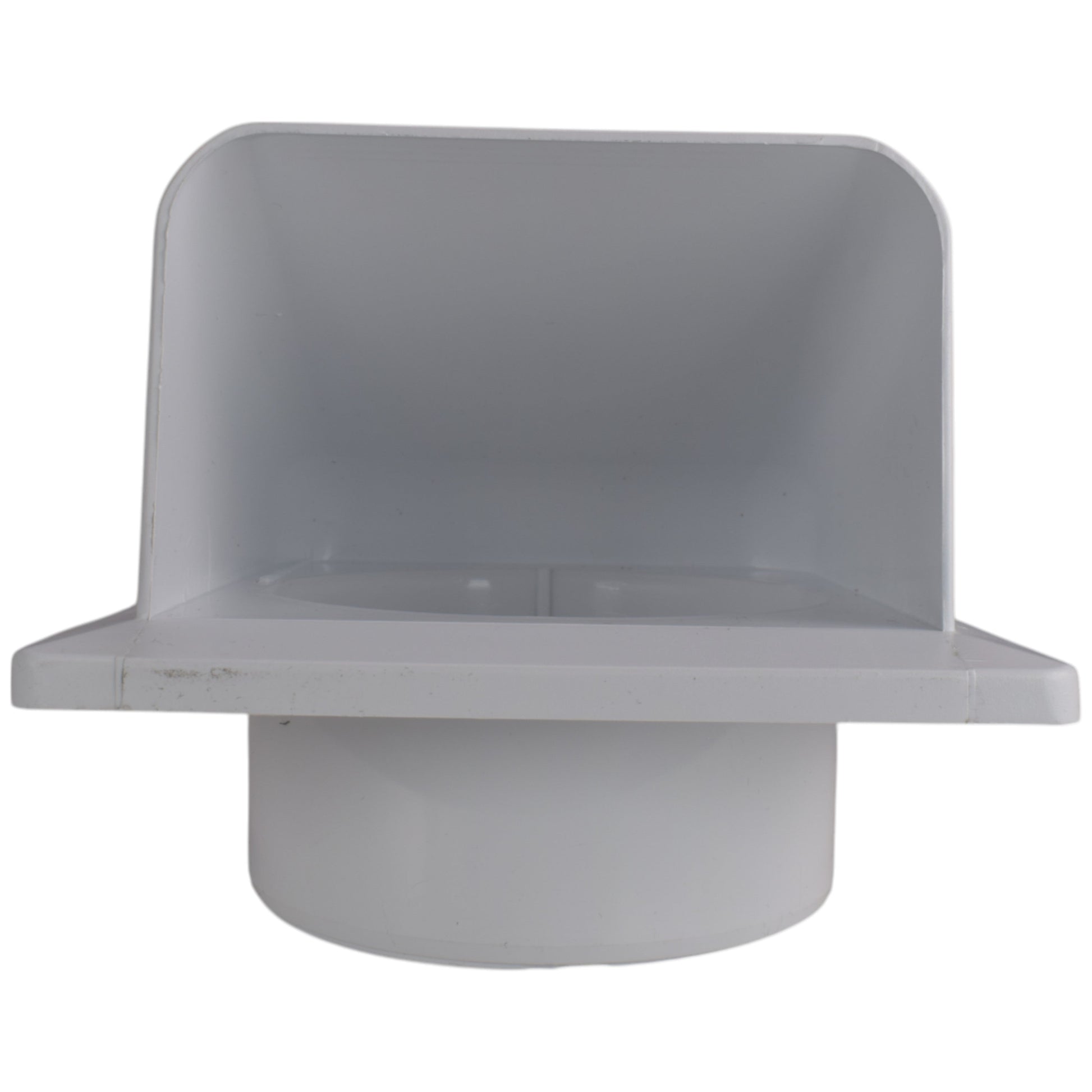

VC-KRD0201-100-W
The white external louvre grille with integrated damper offers excellent airflow control and outdoor protection. The built-in damper regulates air volume, while the hooded louvre design prevents rain and debris from entering the system. It enhances both performance and longevity of your ventilation setup.
Made from high-impact ABS plastic, this grille is resistant to chemicals and weathering, maintaining its form and appearance over time. It’s suitable for both indoor and outdoor environments, ensuring low-maintenance, long-term performance. Perfect for residential, commercial, or industrial ventilation needs, it combines function, durability, and clean aesthetics.
