20mm MDPE Wall Flange Set Including Lever Valve with ½" Barb Outlet

WF20KIT047

This kit includes:

• 1 x 20mm MDPE Wall Flange with ½” BSP connection (MDPEWF20-12BSPF)

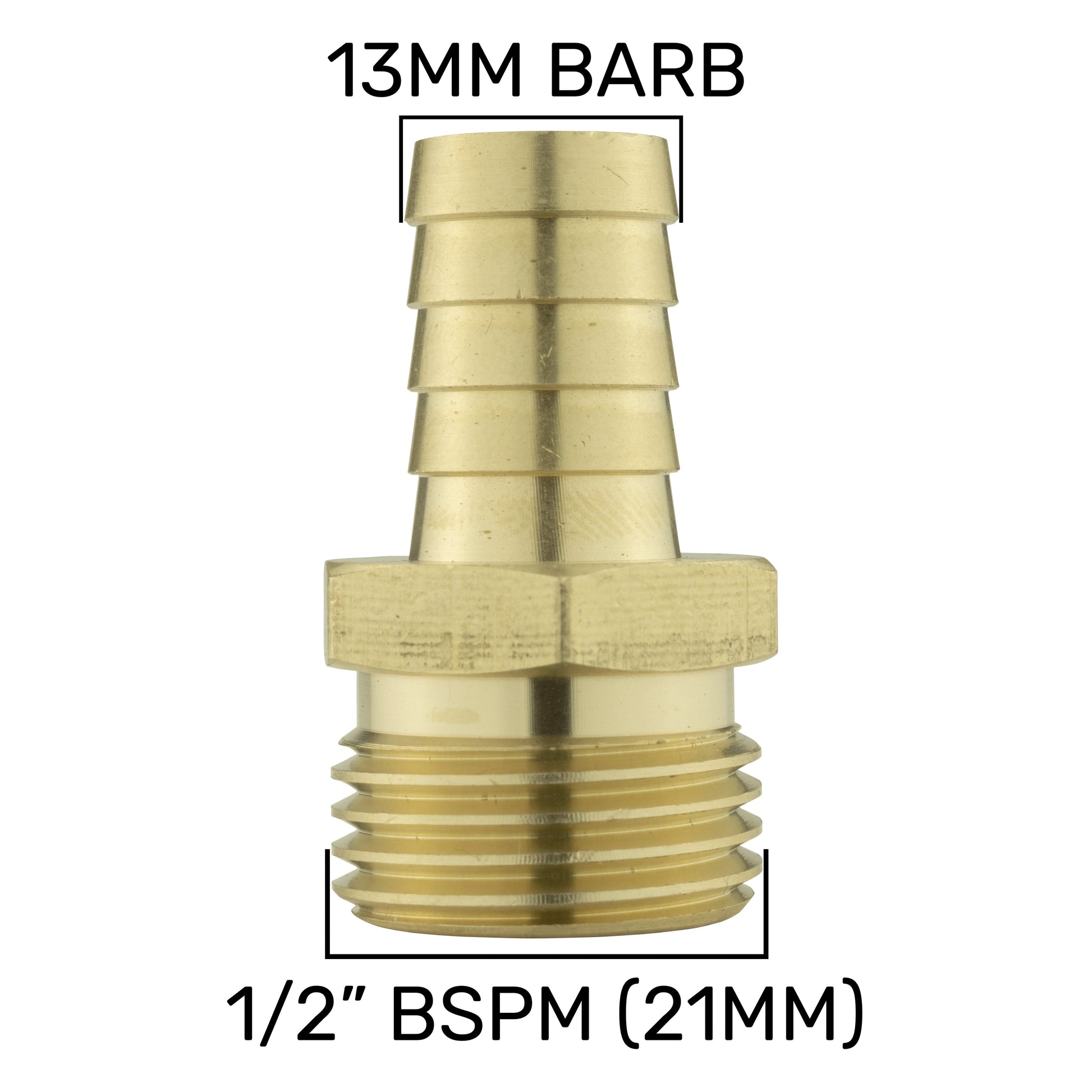

• 1 x Brass Straight Joiner 13mm to ½” BSP Male Thread (BRSTR13B-12BSPM)
• 1 x Nickel-Plated Brass Lever Valve with BSP Male-Female Thread (BRVALVE12BSPM-F)

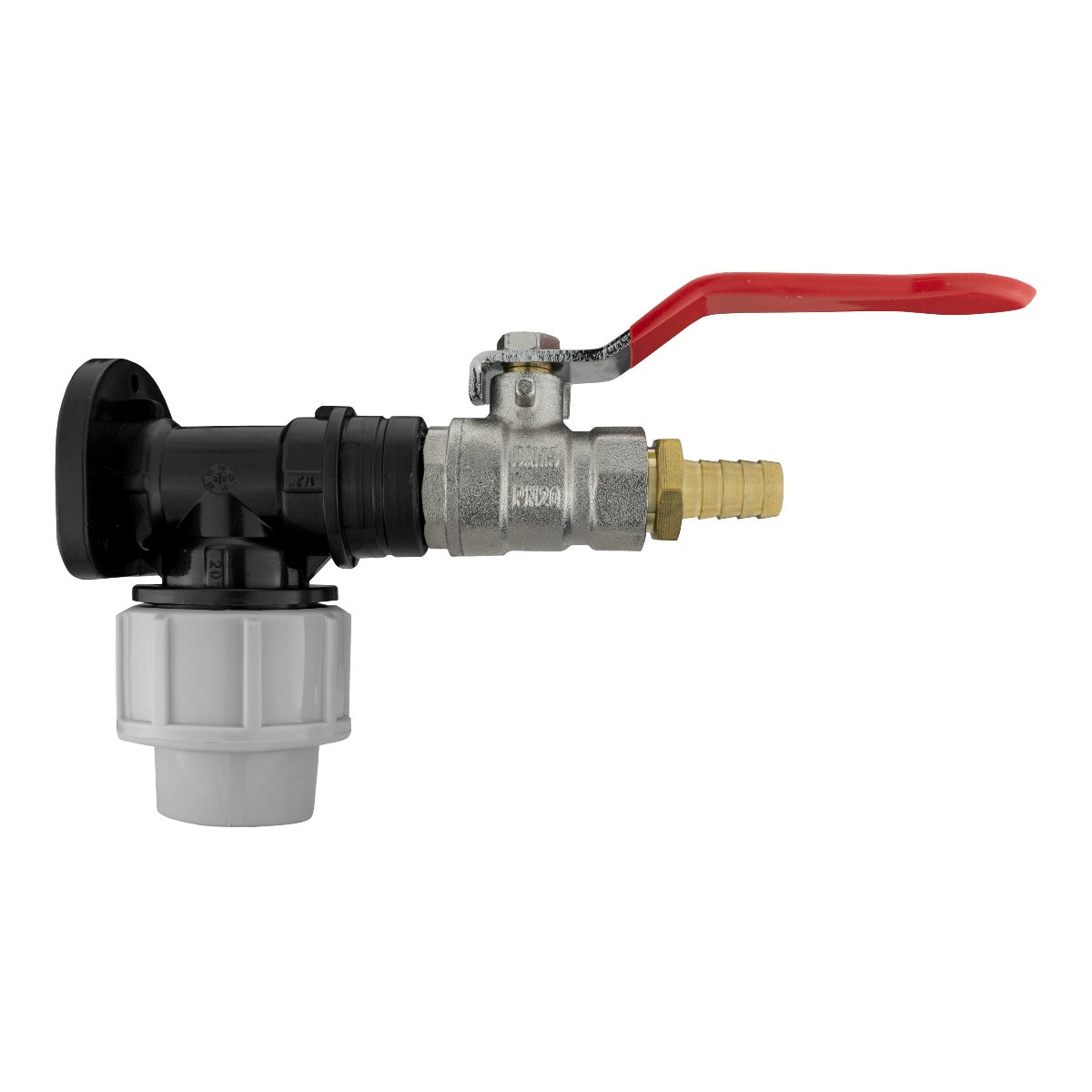

The MDPE wall plate tap kit is a versatile and sturdy solution, designed to connect MDPE pipes efficiently to external water outlets.

MDPE (Medium-Density Polyethylene) fittings play a vital role in piping systems, especially made for joining MDPE pipes. Known for their durability, flexibility, and chemical resistance, these fittings are widely used in water supply, irrigation, and industrial sectors. They feature threaded compression connections that secure a tight, leak-proof seal without the need for specialised equipment, making installation simple and cost-effective. MDPE wall flange compression fittings enable pipes to be mounted onto flat surfaces, improving system versatility.

MDPE PN10 fittings are rated to endure pressures of up to 10 bars (approximately 145 psi), ensuring the system's reliability under various conditions. These fittings are resilient, able to withstand harsh weather, mechanical stresses, and corrosion caused by chemicals and acids, which extends their service life and lowers maintenance demands. Overall, MDPE fittings offer a dependable, flexible, and efficient solution suitable for many piping applications.

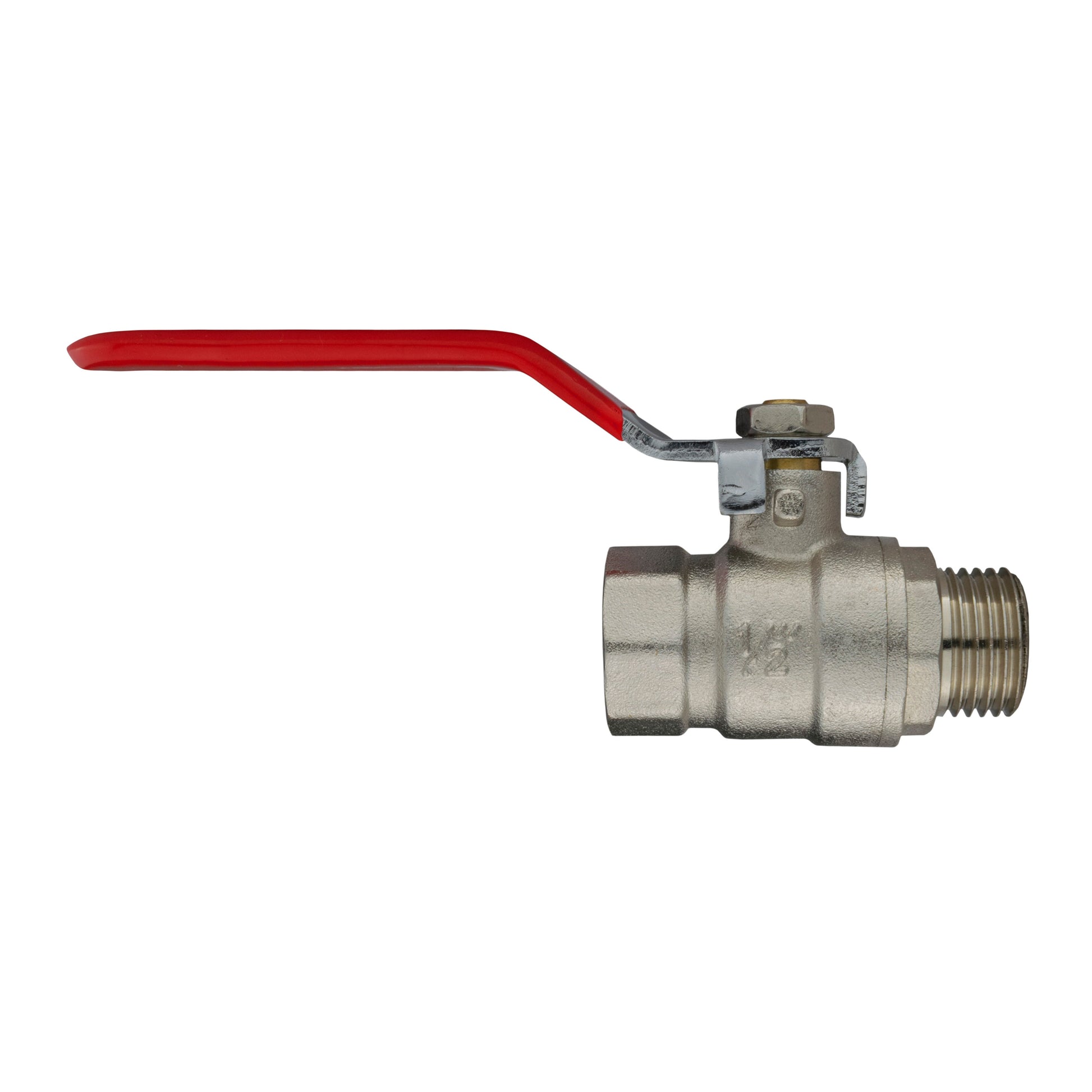

The brass nickel-plated lever valve with BSP male-female threading is crafted from robust, high-quality brass, known for its strength and resistance to corrosion. The nickel plating provides an extra layer of protection against wear, tarnishing, and environmental impacts, ensuring long-lasting performance even in demanding environments. This valve features an ergonomic lever handle, allowing smooth and precise on/off flow control. The lever mechanism is reliable and comfortable to operate, offering consistent performance across repeated use, making it ideal for both domestic and commercial plumbing installations.

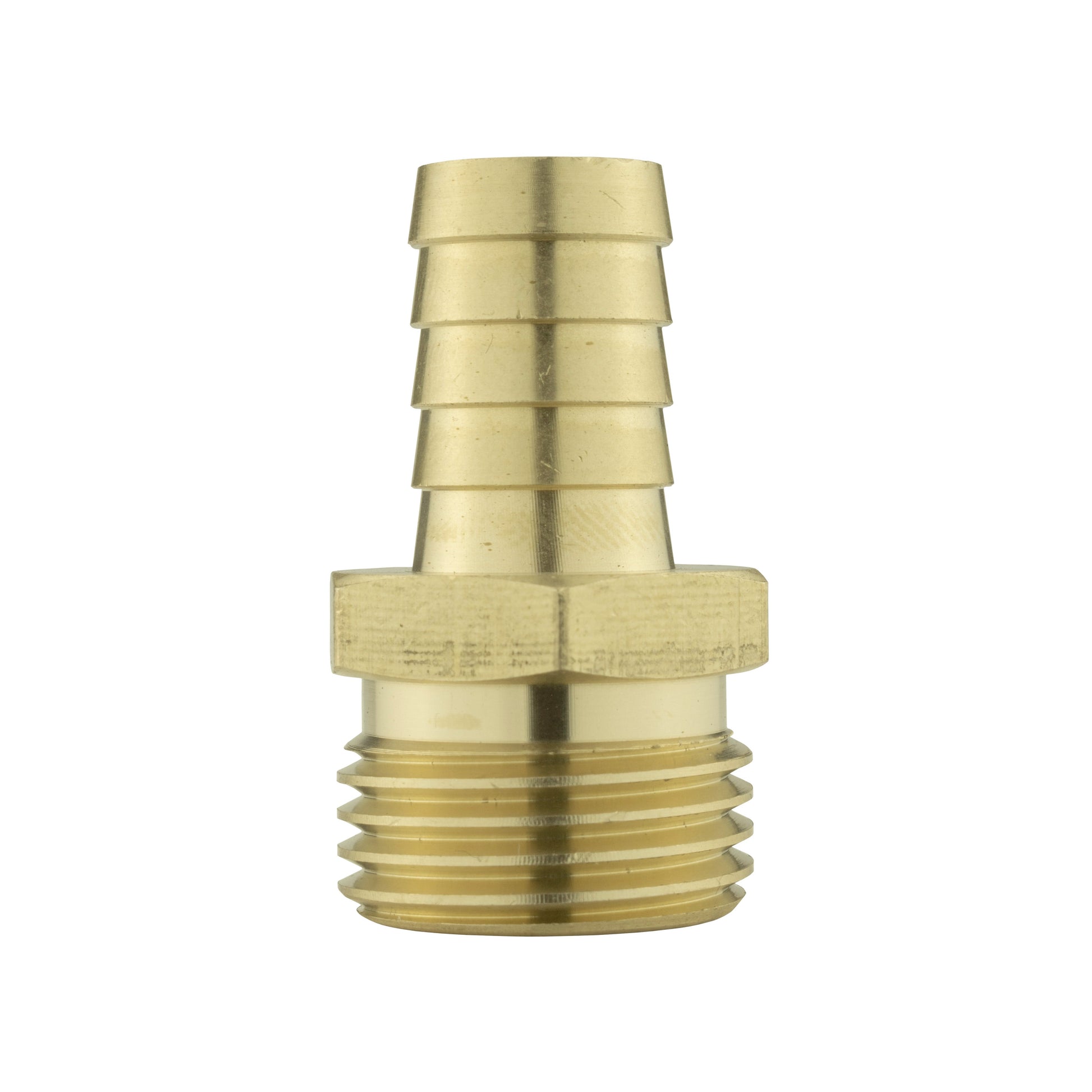

The brass straight joiner fitting is a key component for plumbing and industrial uses, designed to provide a secure connection between hose pipes and threaded fixtures. One end has a barbed design to grip the hose firmly, preventing leaks and accidental disconnections under pressure. The other end features a British Standard Pipe (BSP) thread, ensuring compatibility with standard pipe fittings.

Made from premium brass, this fitting is highly durable and resistant to corrosion, wear, and impact. It withstands harsh environmental conditions and heavy usage, providing a long service life in demanding applications.

Please note: PTFE tape is not included and must be purchased separately.
