20mm MDPE Wall Flange Set with Lever Valve and 20mm MDPE Tee Connection

WF20KIT037

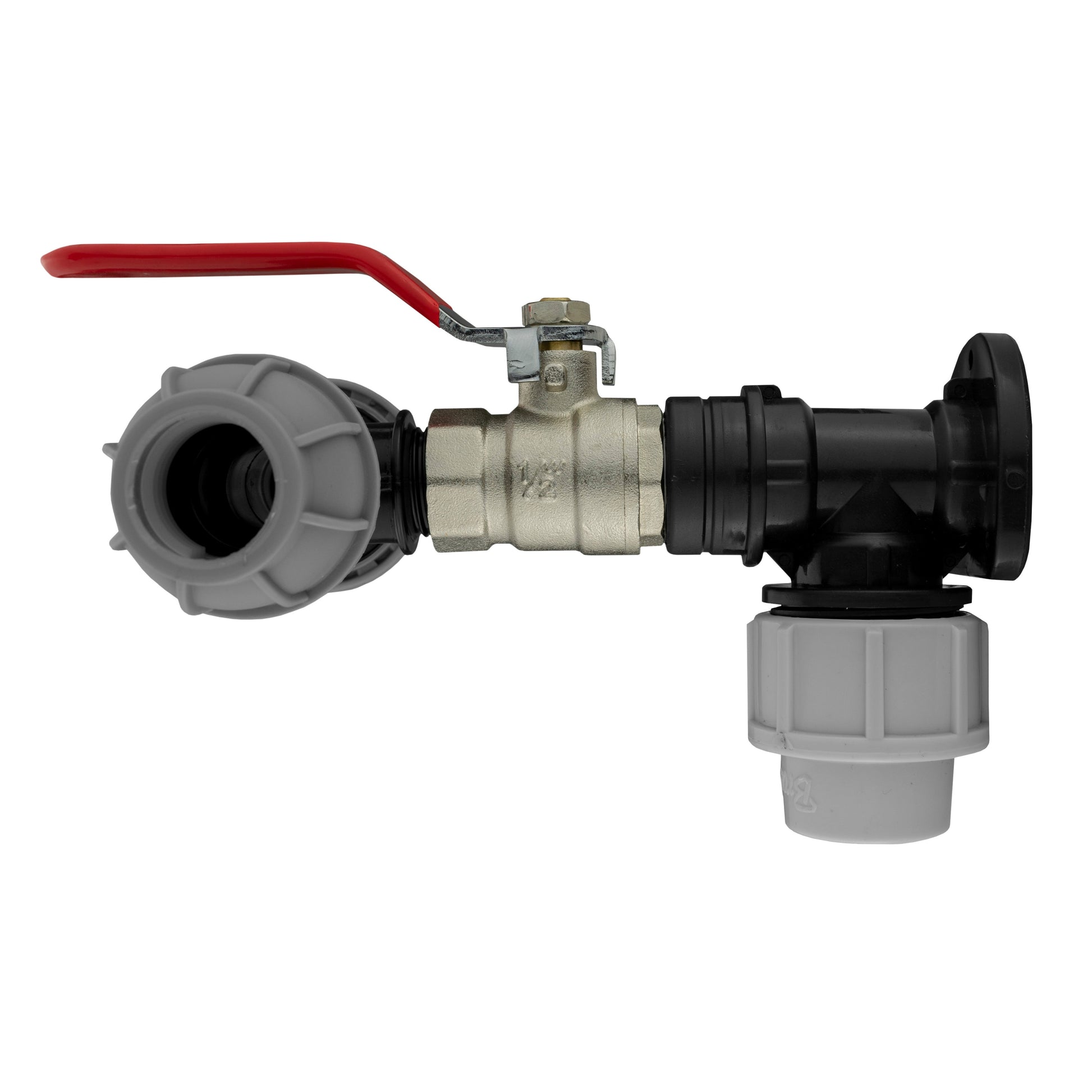

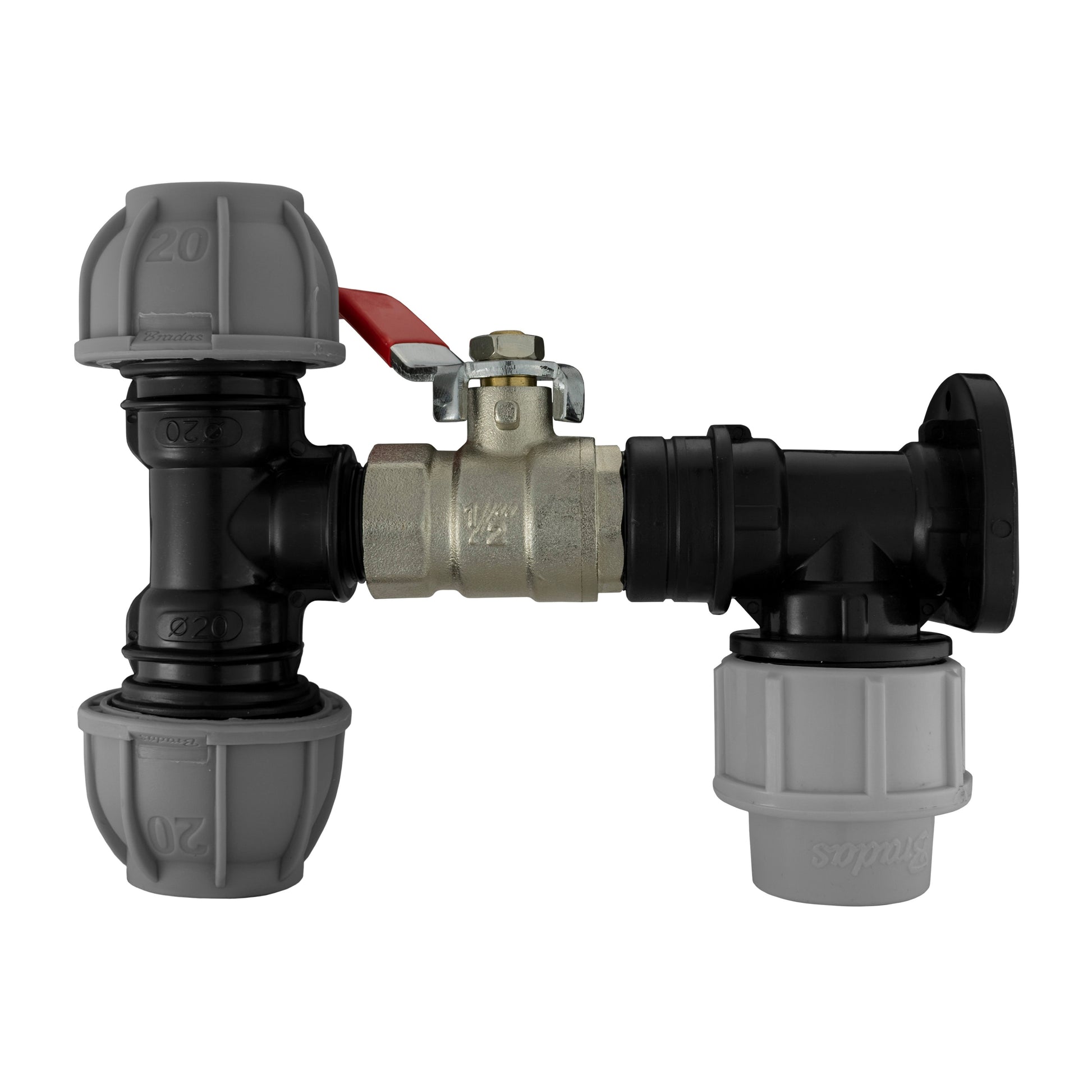

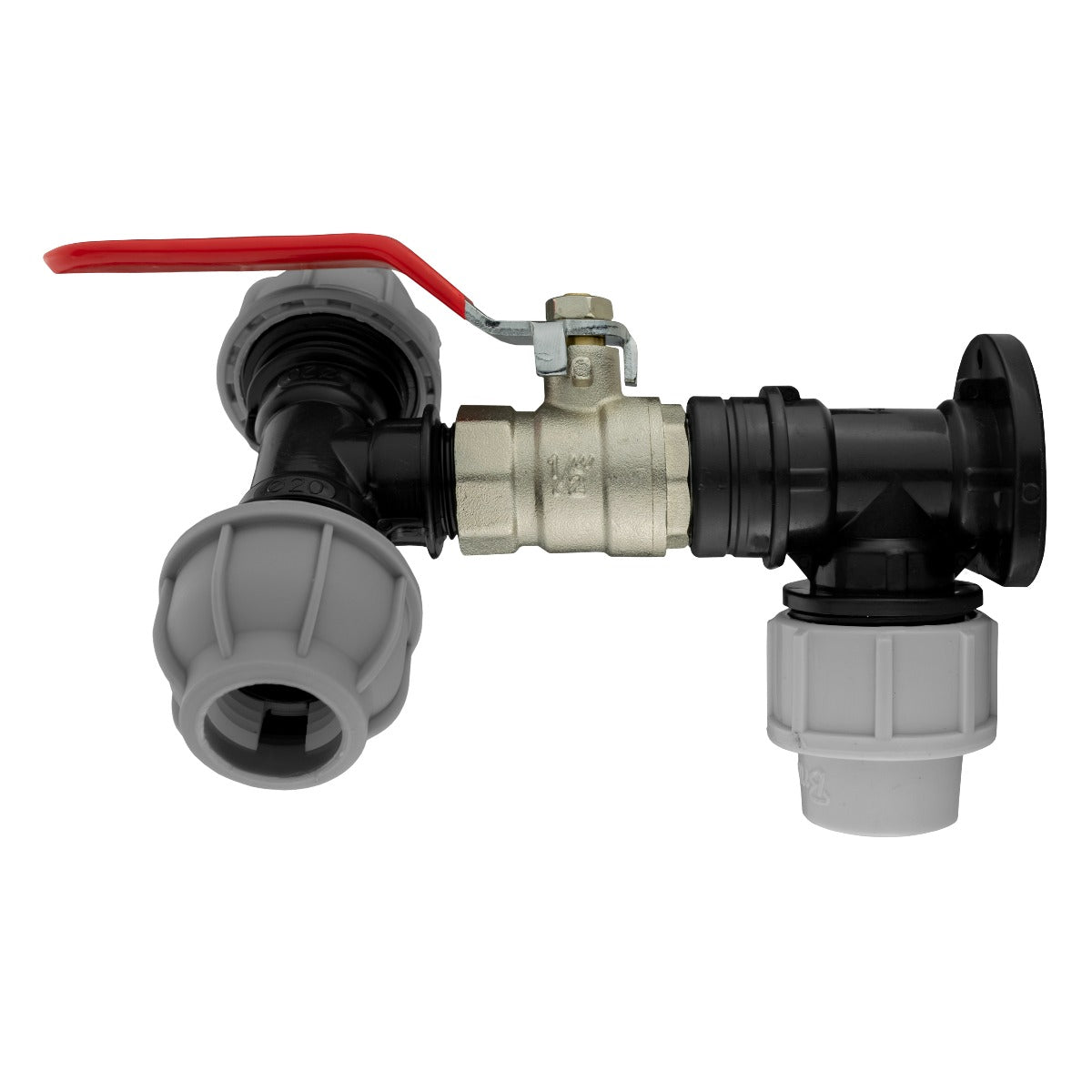

This kit includes:

• 1 x 20mm MDPE Wall Flange with ½” BSP connection (MDPEWF20-12BSPF)

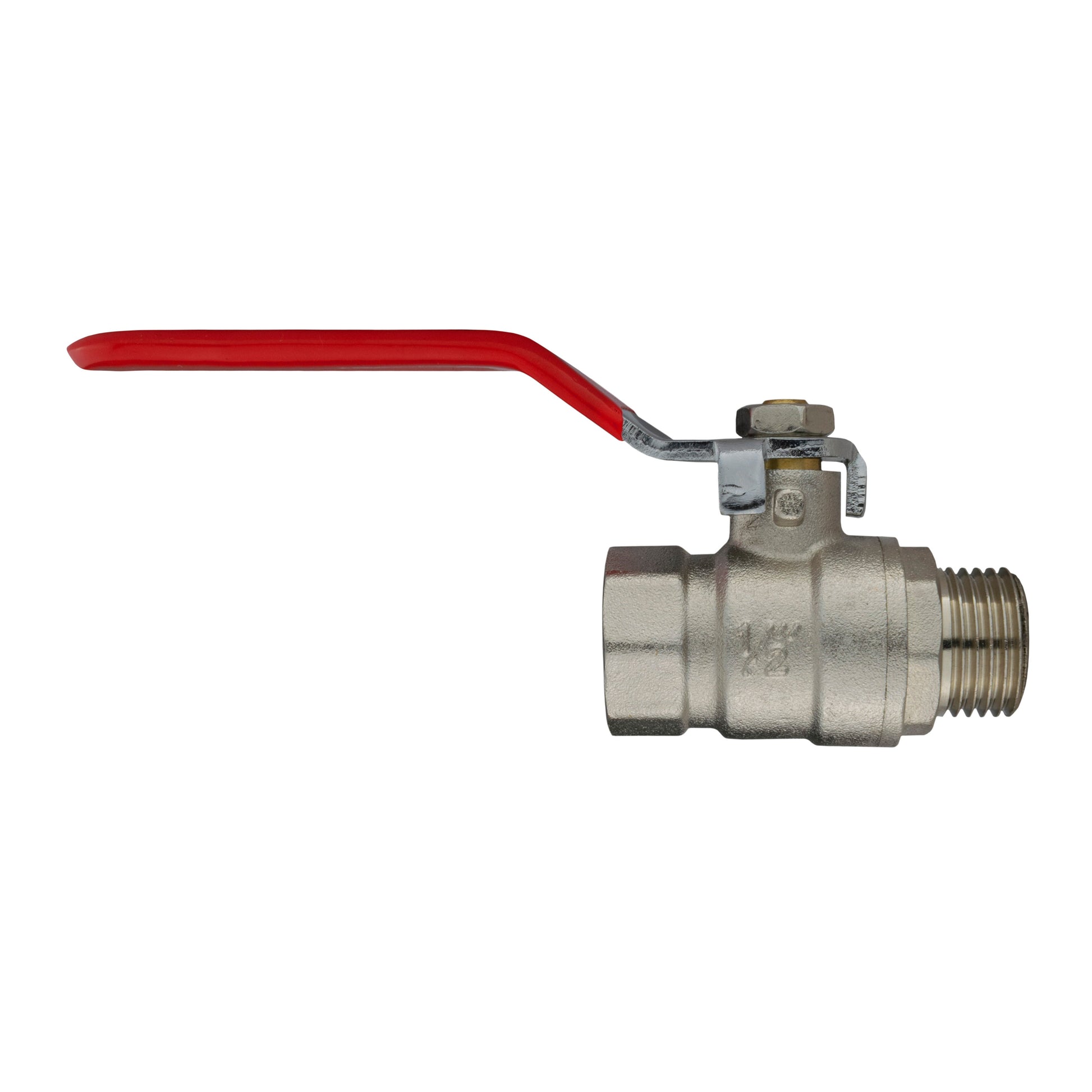

• 1 x Nickel-Plated Brass Lever Valve with BSP Male-Female Thread (BRVALVE12BSPM-F)

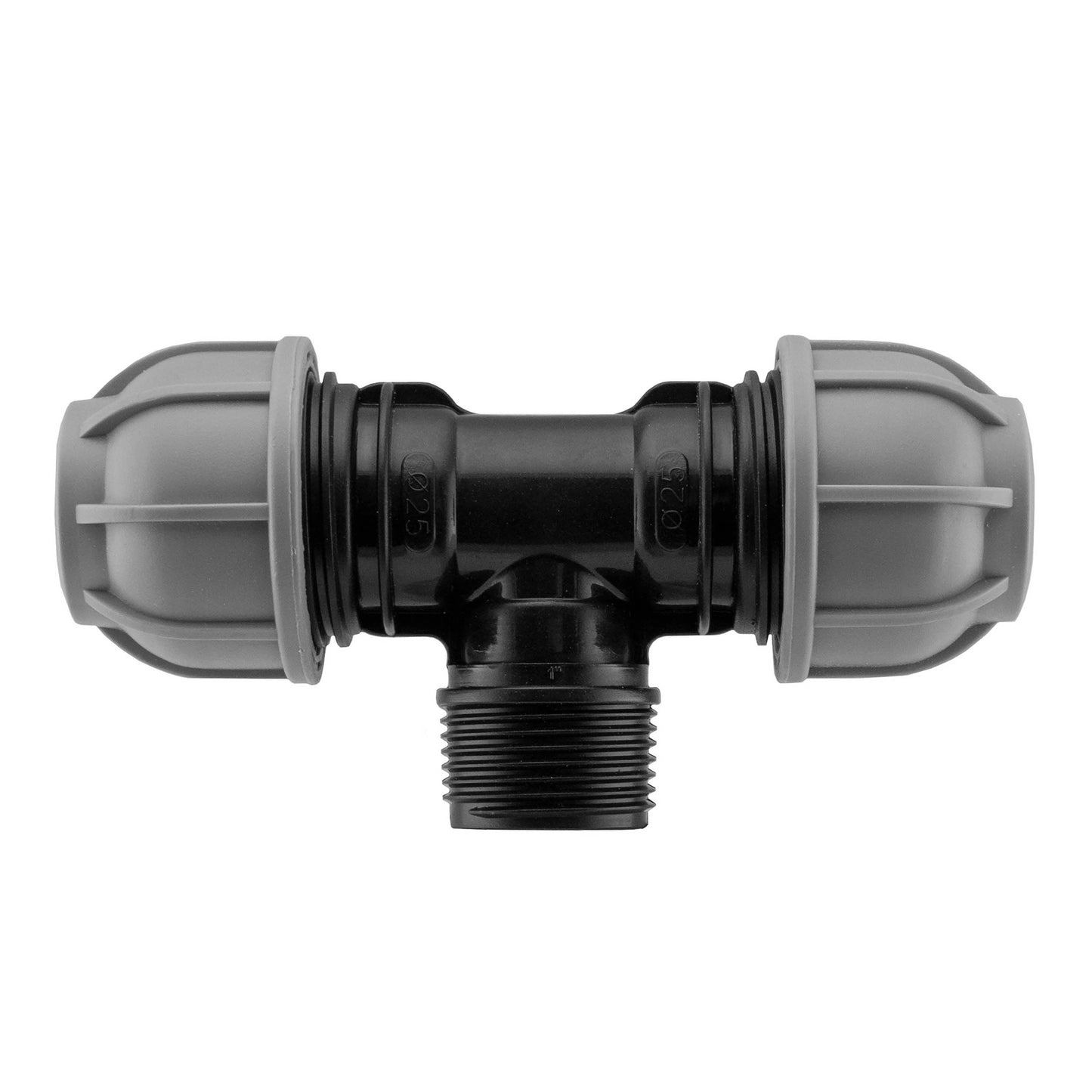

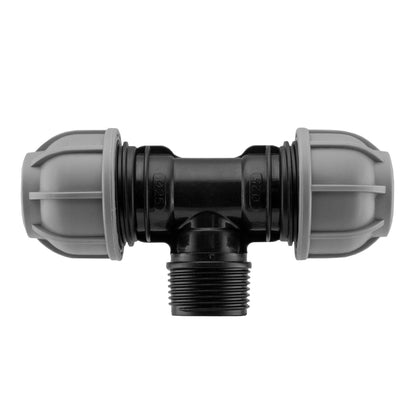

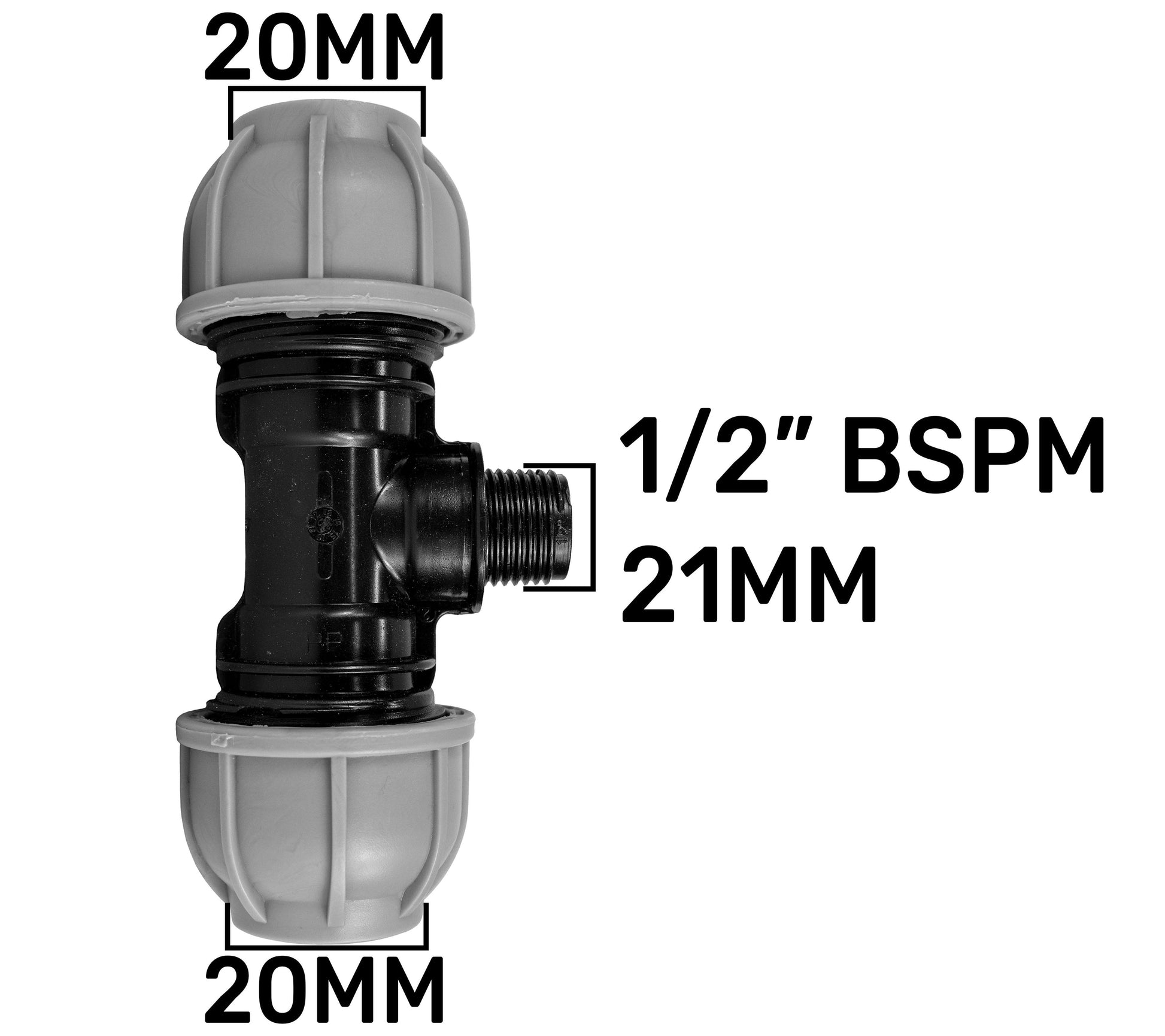

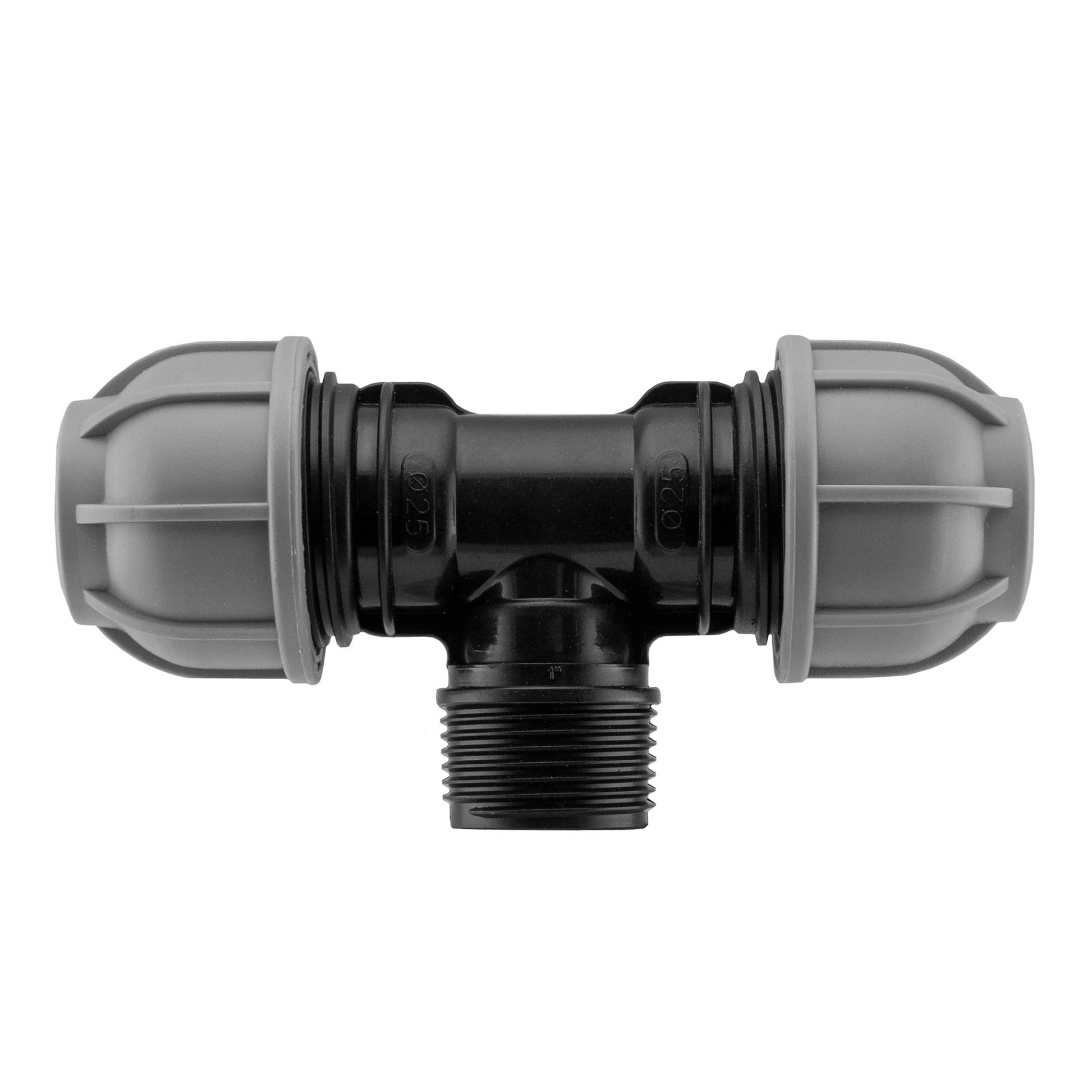

• 1 x 20mm MDPE Tee with 90° Branch and ½” BSP Male Thread (MDPETEE20-12BSPM)

The MDPE wall plate tap kit is a sturdy and versatile solution, designed to connect MDPE pipes efficiently to an external water source.

MDPE (Medium-Density Polyethylene) fittings are critical components in piping systems, specifically manufactured for joining MDPE pipes. Recognised for their toughness, flexibility, and chemical resistance, these fittings are commonly used in water supply, irrigation, and industrial contexts. They feature threaded compression connections that ensure a secure, leak-free seal without the need for specialised tools, making installation straightforward and cost-effective.

MDPE wall flange compression fittings fix pipes firmly to flat surfaces, increasing system adaptability. The MDPE tee fitting facilitates branching a pipeline into two directions at a 90-degree angle, allowing smooth diversion of flow.

MDPE PN10 fittings are built to withstand pressures up to 10 bars (approximately 145 psi), guaranteeing long-term service and integrity of the piping system under a variety of conditions. These fittings are robust, resistant to harsh weather, mechanical stress, and corrosion from chemicals and acids, contributing to their longevity and lowering maintenance requirements. Altogether, MDPE fittings offer a dependable, flexible, and efficient piping solution.

The brass nickel-plated lever valve with BSP male-female threads is crafted from high-quality, durable brass known for its strength and excellent corrosion resistance, making it suitable for demanding plumbing or industrial uses. The nickel plating provides an additional protective layer against wear, tarnishing, and environmental effects.

Equipped with an ergonomically designed lever handle, the valve offers smooth and precise on/off operation. The comfortable lever design allows effortless control of fluid flow with minimal effort, ensuring reliable performance even after repeated use. This makes it an excellent option for both domestic and commercial installations.

Please note: PTFE tape is not included with this kit and must be purchased separately.
