20mm MDPE Wall Flange Set with Lever Valve and 25mm MDPE Tee Connection

WF20KIT038

This kit includes:

• 1 x 20mm MDPE Wall Flange with ½” BSP connection (MDPEWF20-12BSPF)

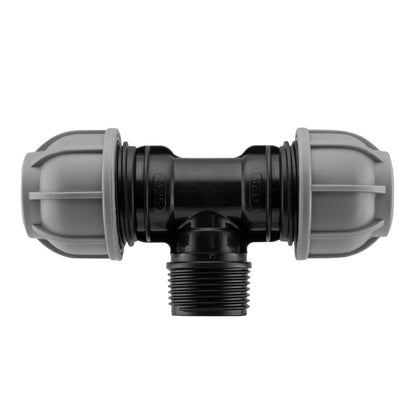

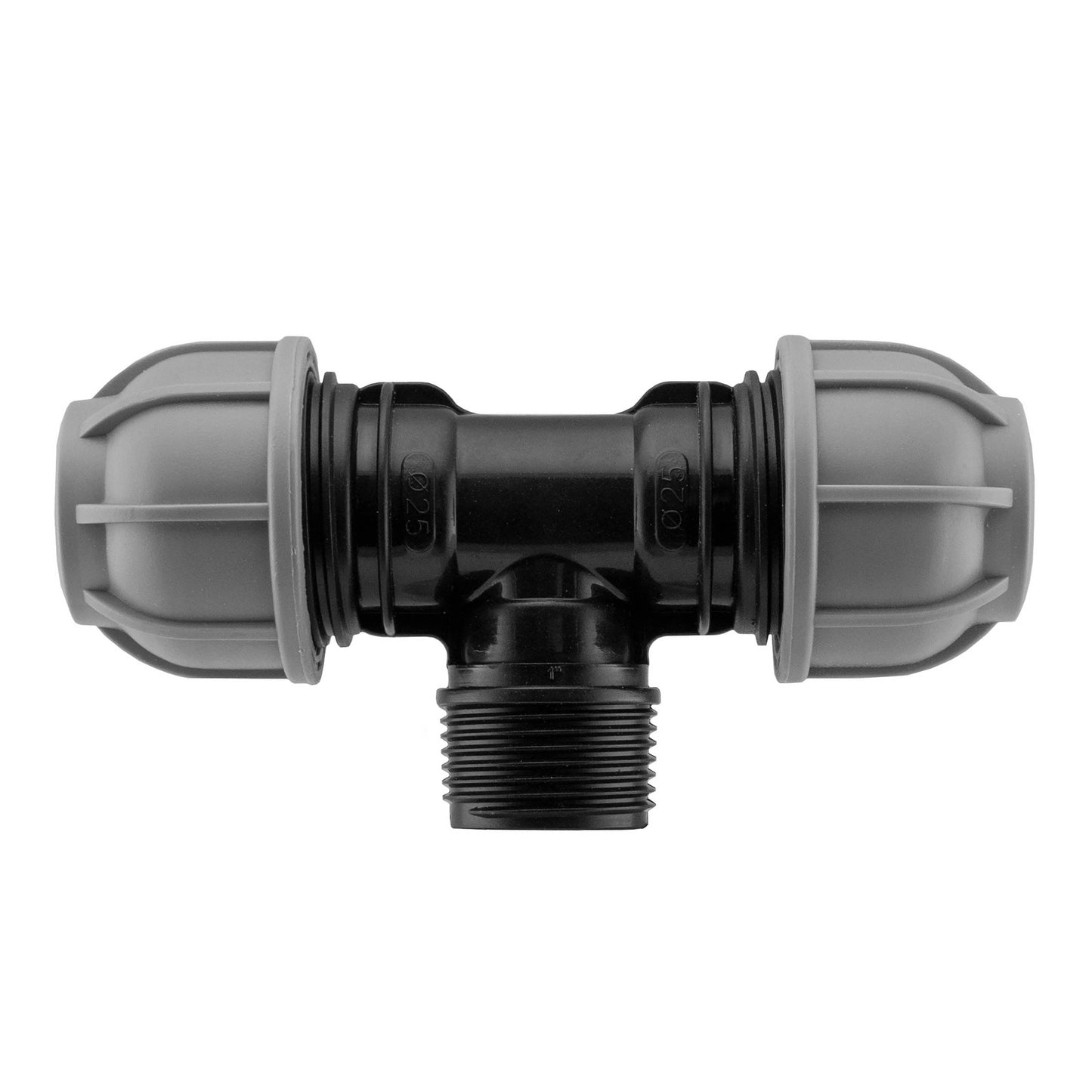

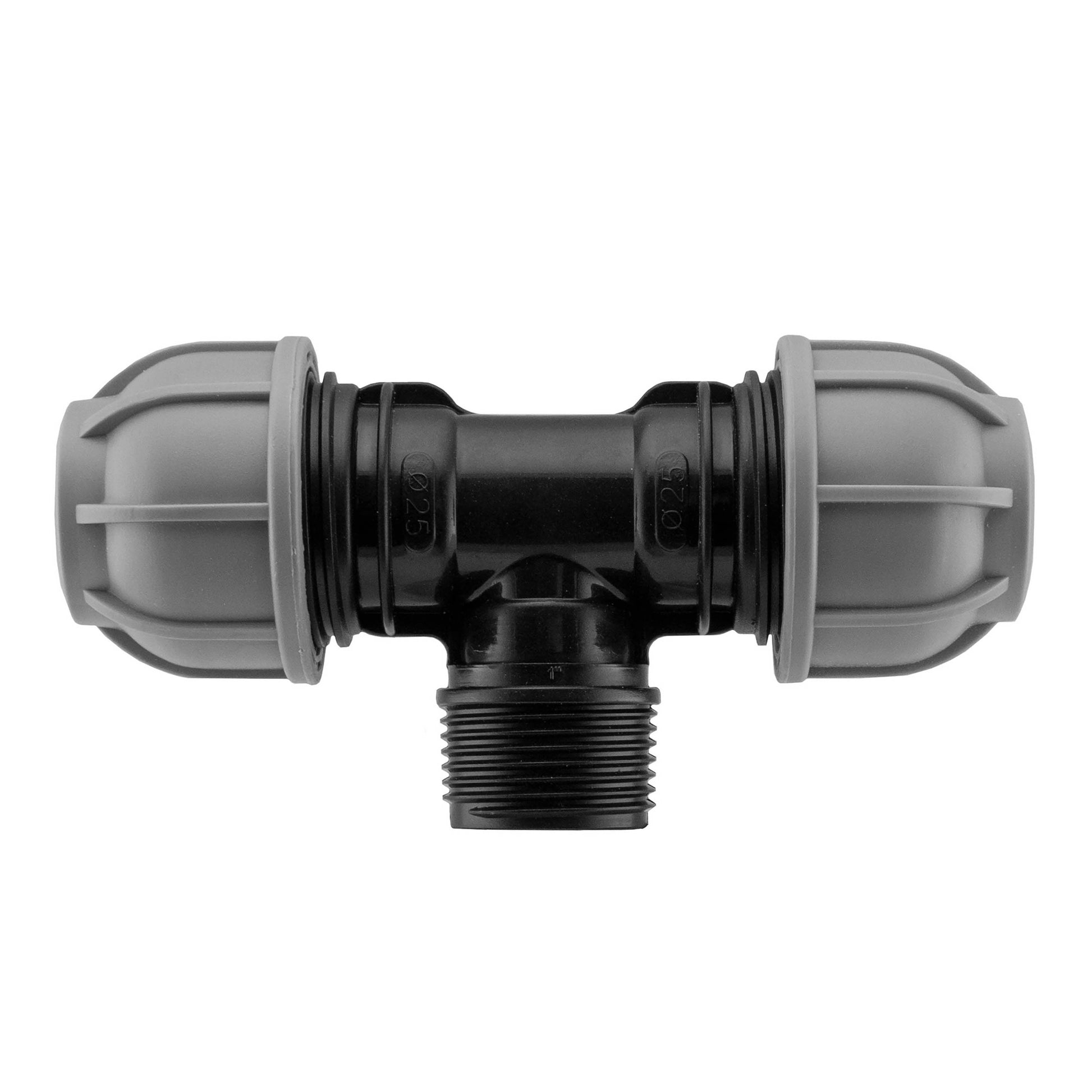

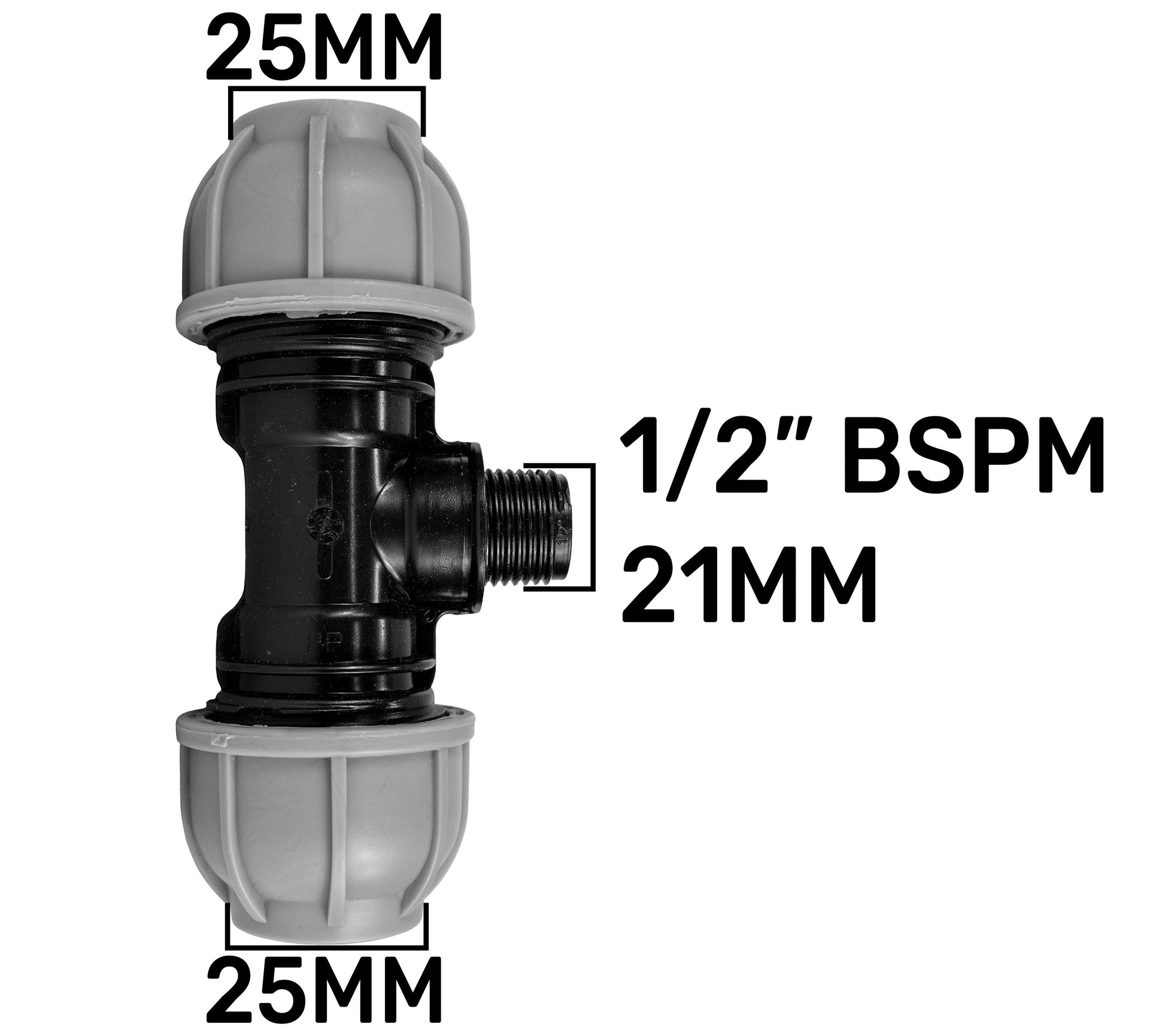

• 1 x 25mm MDPE Tee with ½” BSP Male Thread (MDPETEE25-12BSPM)

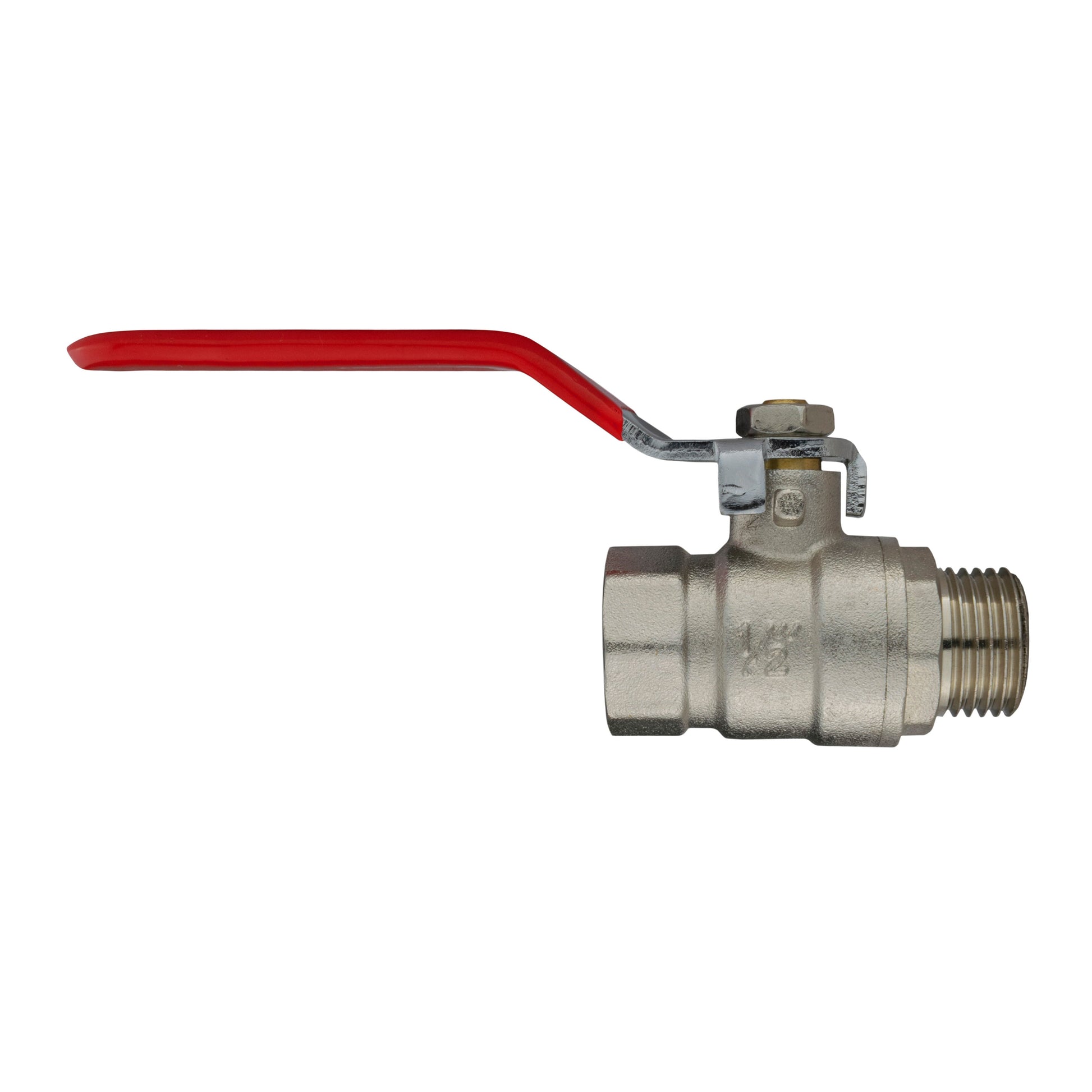

• 1 x Nickel-Plated Brass Lever Valve with BSP Male-Female Thread (BRVALVE12BSPM-F)

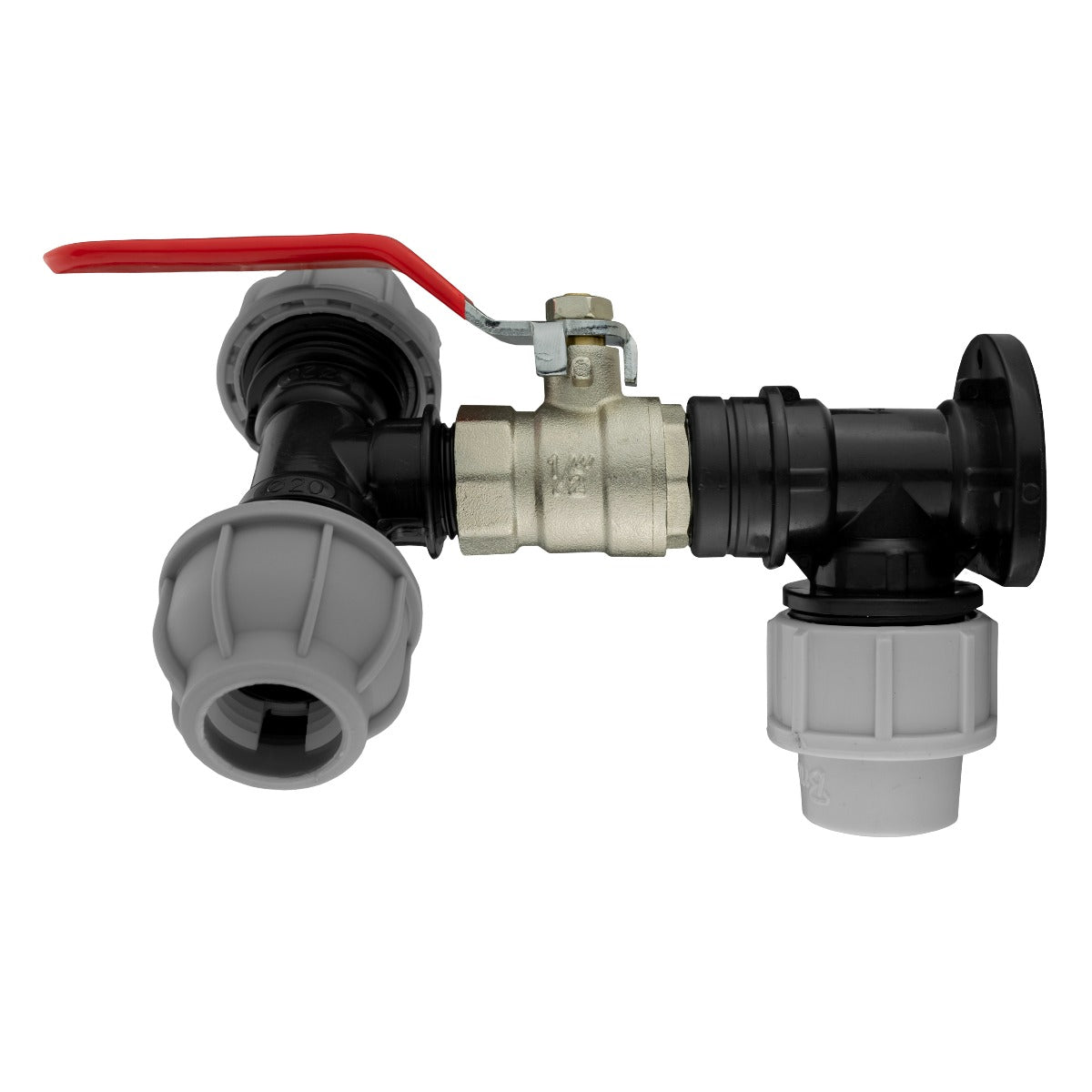

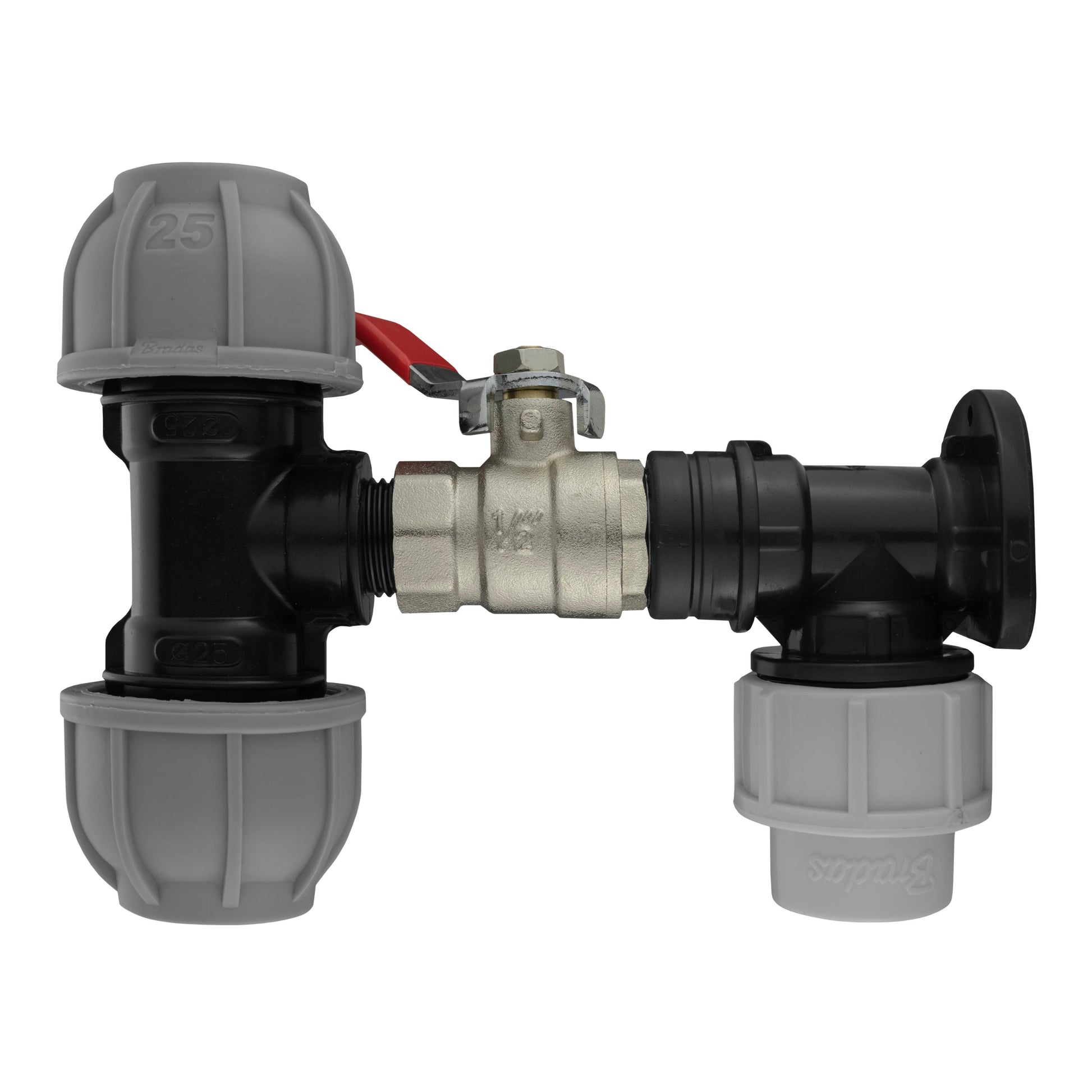

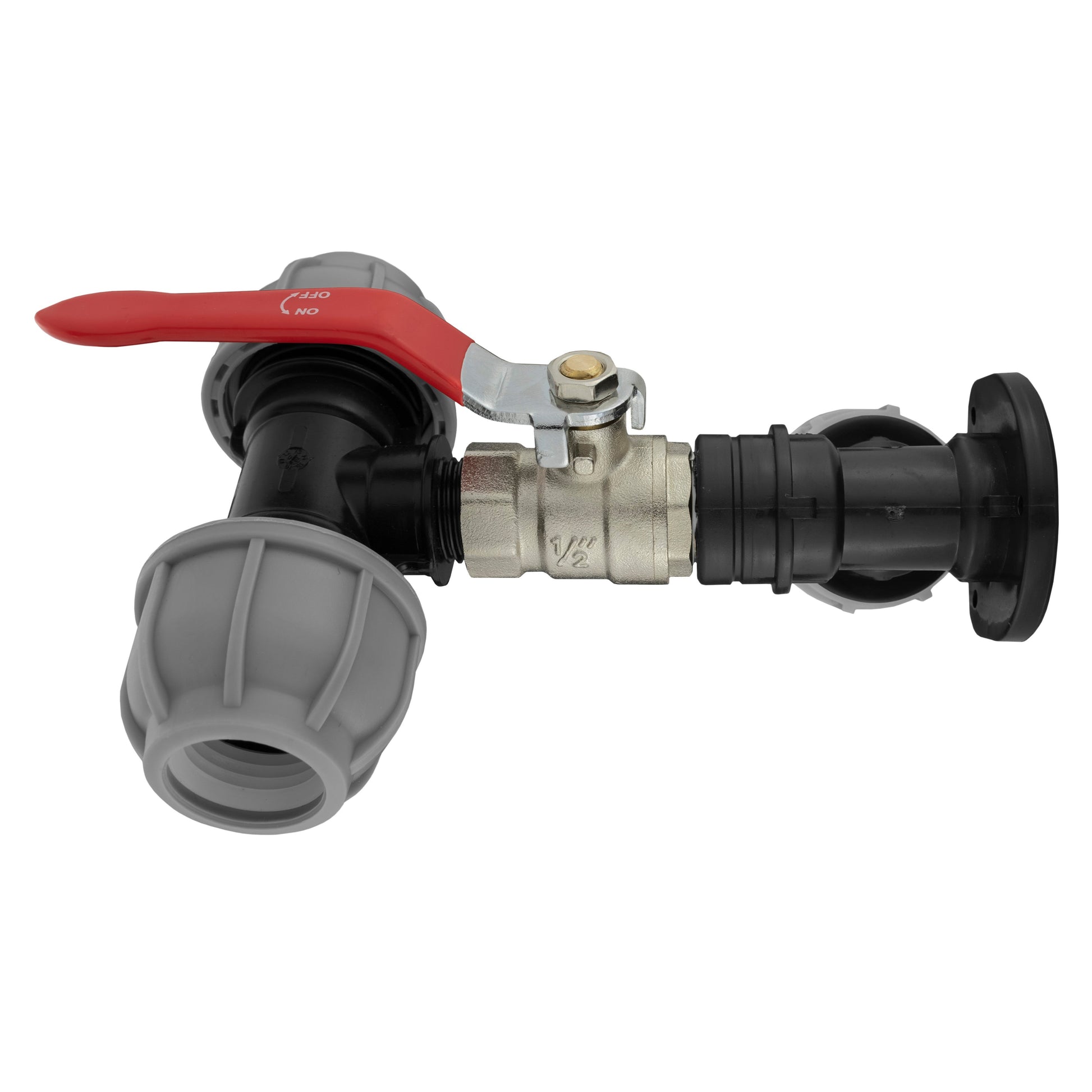

The MDPE wall plate tap kit provides a robust and versatile solution to connect MDPE pipes seamlessly to an external water outlet.

MDPE (Medium-Density Polyethylene) fittings are key components in piping systems, designed specifically for use with MDPE pipes. They are well-known for their durability, flexibility, and resistance to chemicals, making them popular in water supply, irrigation, and industrial applications. These fittings feature threaded compression connections that ensure a secure, leak-tight seal without requiring specialised tools, offering a straightforward and cost-effective installation.

MDPE wall flange compression fittings fix pipes firmly to flat surfaces, enhancing system versatility. The included 25mm MDPE tee fitting allows the pipeline to branch into two directions at a 90-degree angle, facilitating effective flow distribution where needed.

MDPE PN10 fittings are engineered to withstand pressures of up to 10 bars (around 145 psi), ensuring the piping system remains reliable under various operating conditions. These fittings are tough, able to endure harsh weather, mechanical loads, and resist corrosion from chemicals and acids, which extends their lifespan and decreases maintenance.

The brass nickel-plated lever valve with BSP male-female threading is constructed from high-quality, durable brass renowned for its strength and corrosion resistance. The nickel plating adds an extra protective layer against wear, tarnishing, and environmental factors, ensuring long-term performance even in challenging environments.

Equipped with an ergonomically designed lever handle, the valve offers smooth and precise on/off control. This design ensures comfortable operation, allowing users to regulate fluid flow easily and reliably over repeated use. Suitable for both residential and commercial plumbing installations, it provides a dependable valve solution.

Please note: PTFE tape is not included in this kit and must be purchased separately.
