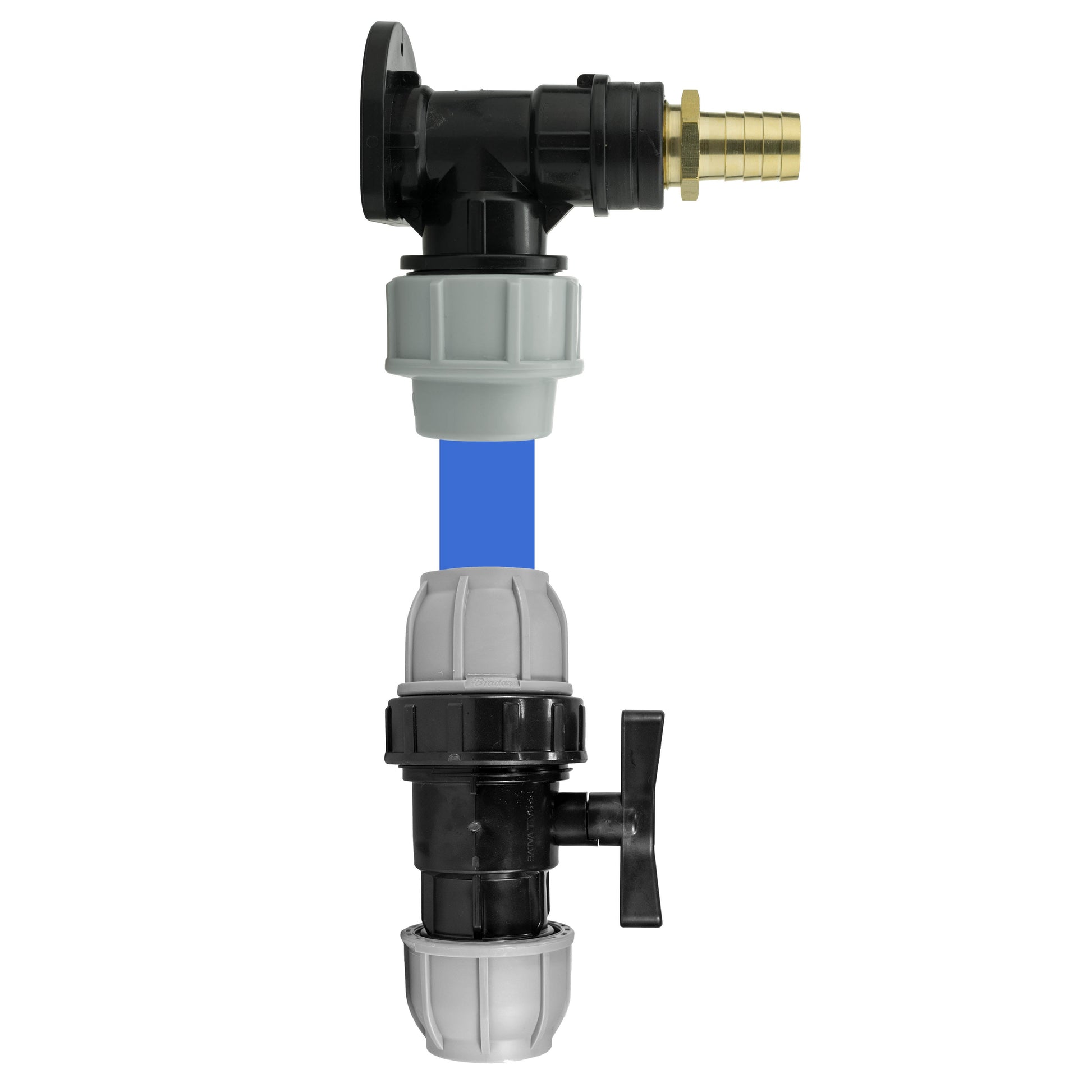

25mm MDPE Wall Flange Set with 25mm Valve and 19mm Brass Barb Coupling

WF25KIT026

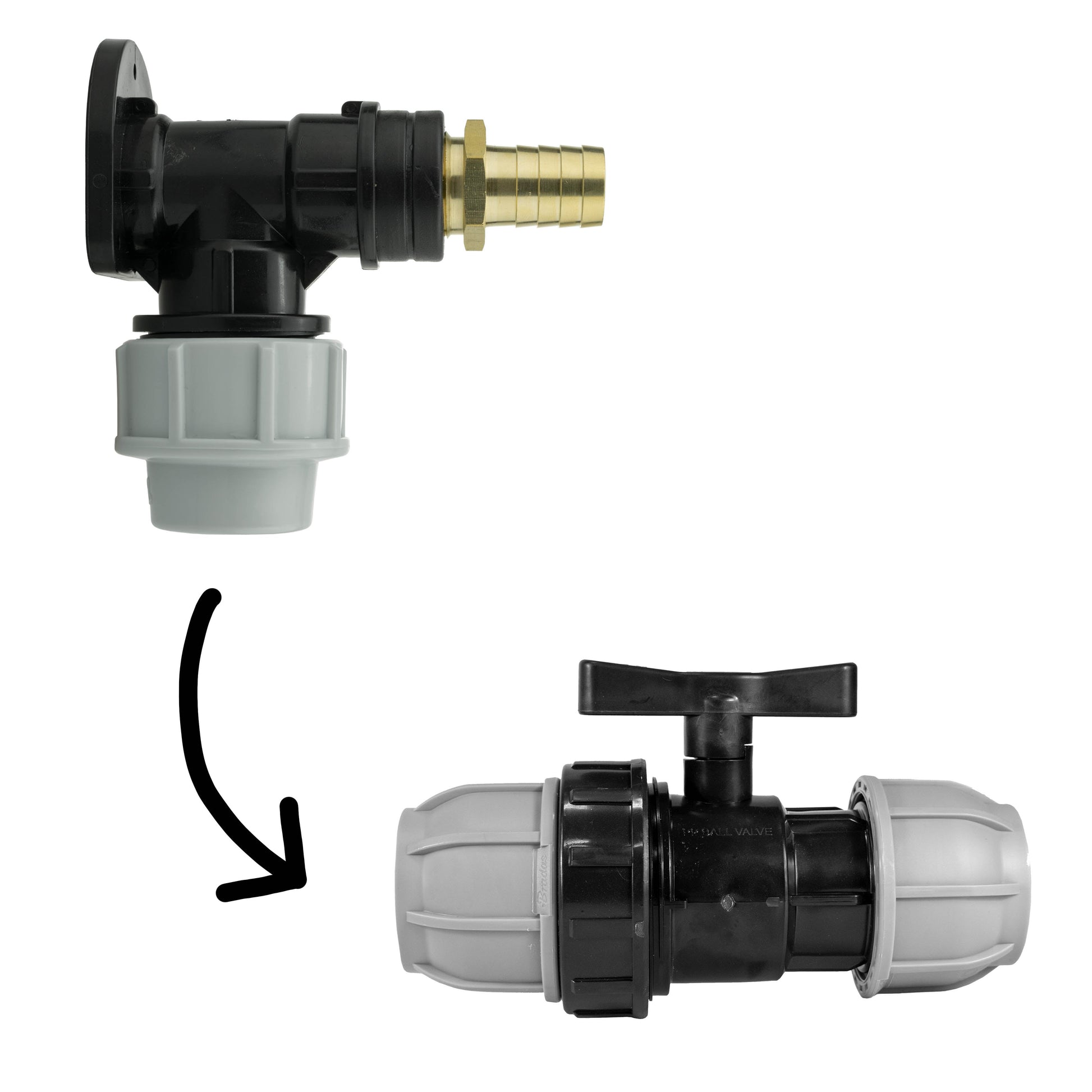

This kit includes:

• 1 x MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF)

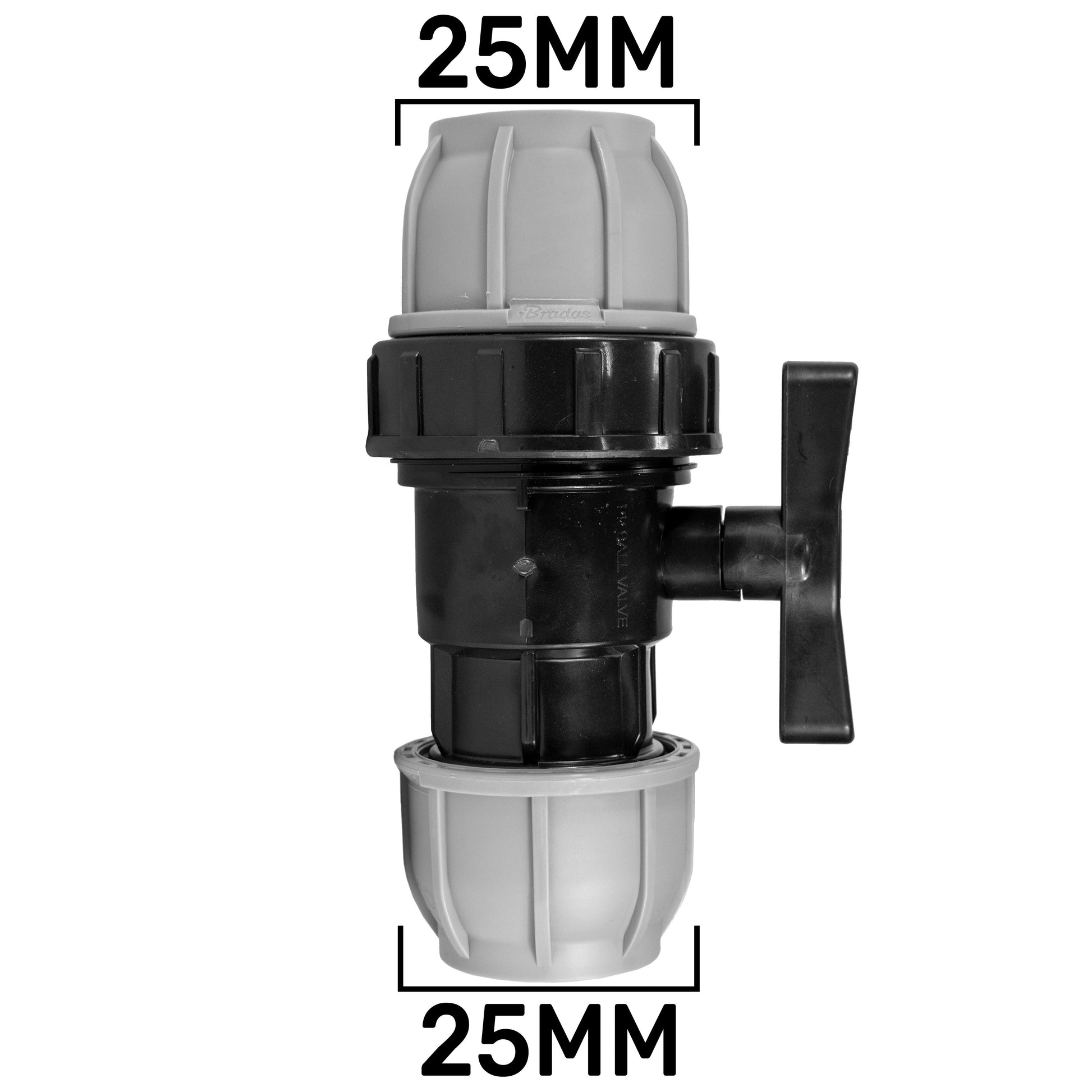

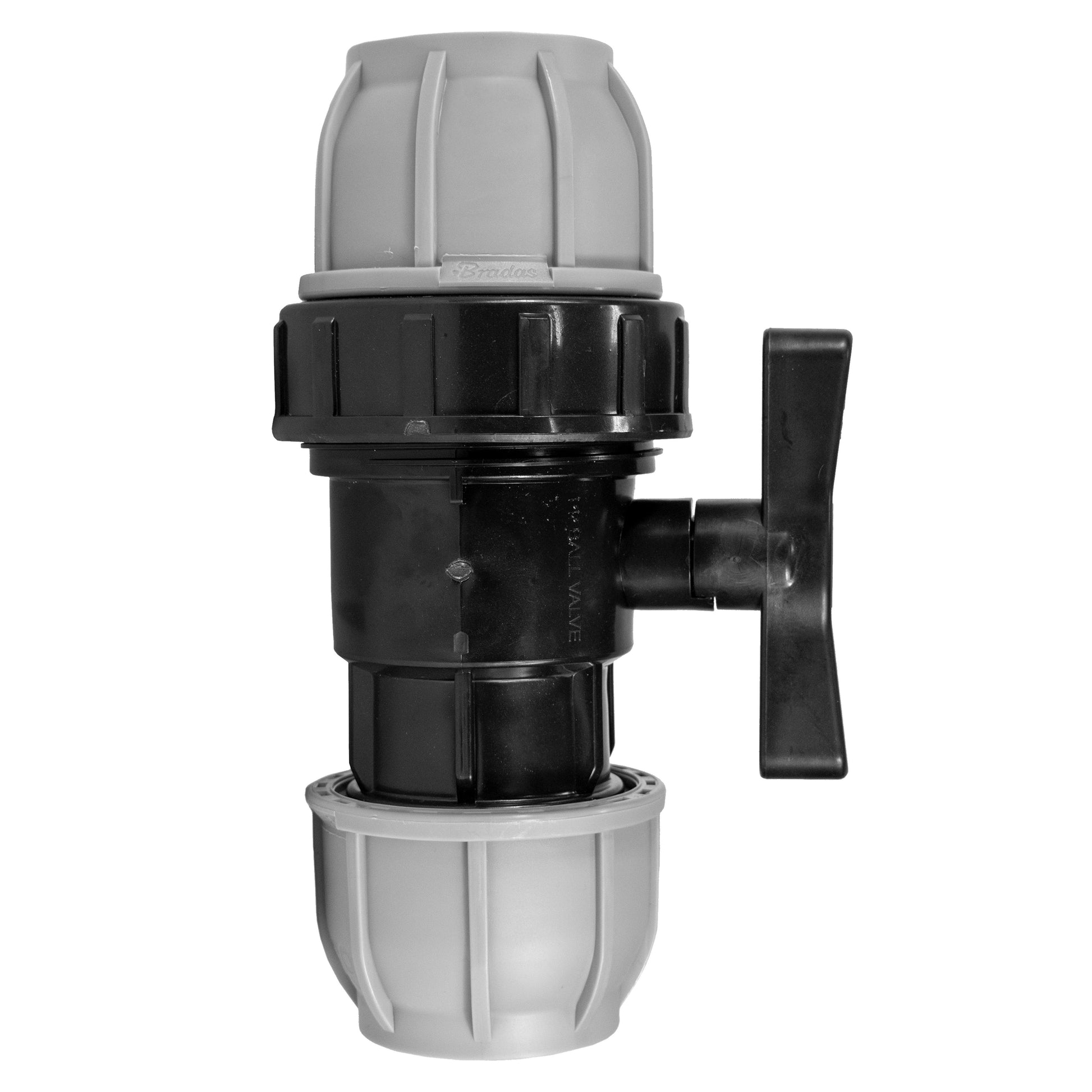

• 1 x MDPE Valve 25mm (MDPEVALVE25)

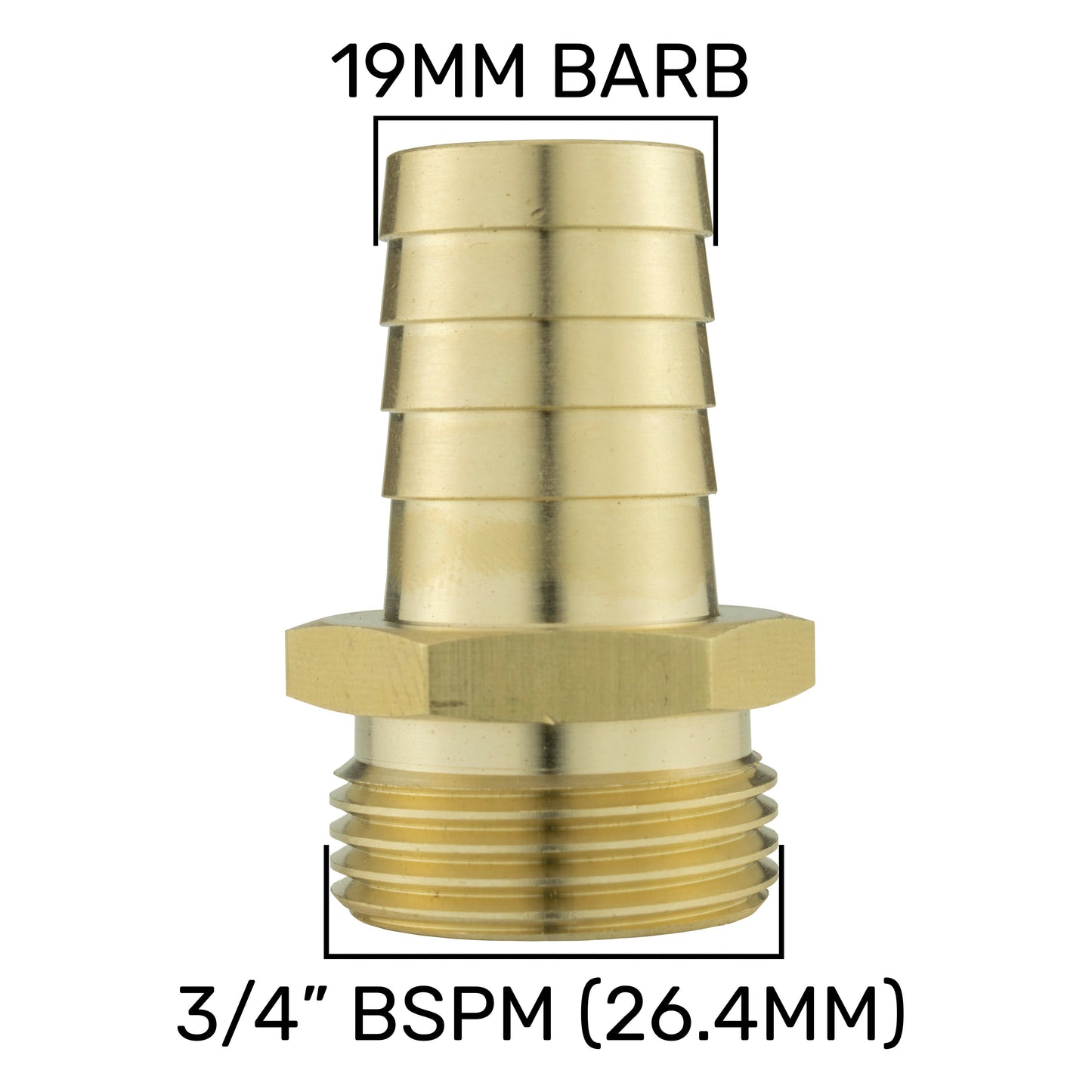

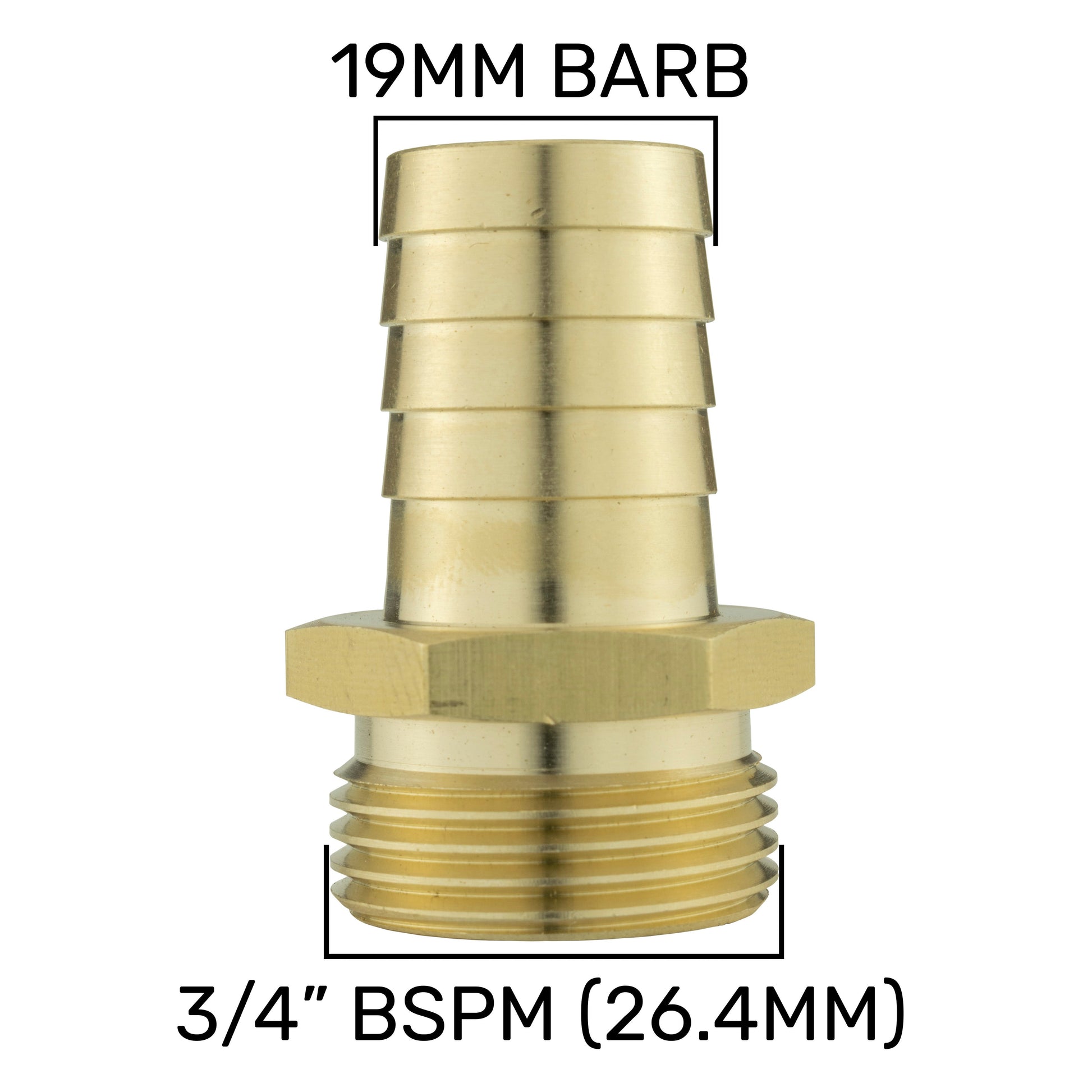

• 1 x Brass Straight Joiner 19mm – ¾” BSP (BRSTR19B-34BSPM)

MDPE (Medium-Density Polyethylene) fittings are crucial parts of piping systems, specifically designed to connect MDPE pipes. Known for their toughness, flexibility, and chemical resistance, these fittings are widely utilised in water supply, irrigation, and industrial sectors. They feature threaded compression connections that provide a secure, leak-proof seal without the need for specialised tools, making installation both cost-effective and straightforward.

MDPE wall flange compression fittings serve to attach pipes securely to flat surfaces, increasing system adaptability. The MDPE valve included is specifically designed for MDPE piping, allowing effective control of fluid or gas flow within the system.

MDPE PN10 fittings are rated to withstand pressures up to 10 bar (approximately 145 psi), guaranteeing system integrity under varied conditions. These fittings are durable enough to resist harsh weather and mechanical stresses, as well as corrosion from chemicals and acids, which prolongs their lifespan and reduces maintenance requirements. Overall, MDPE fittings provide a reliable, versatile, and efficient solution for numerous piping applications.

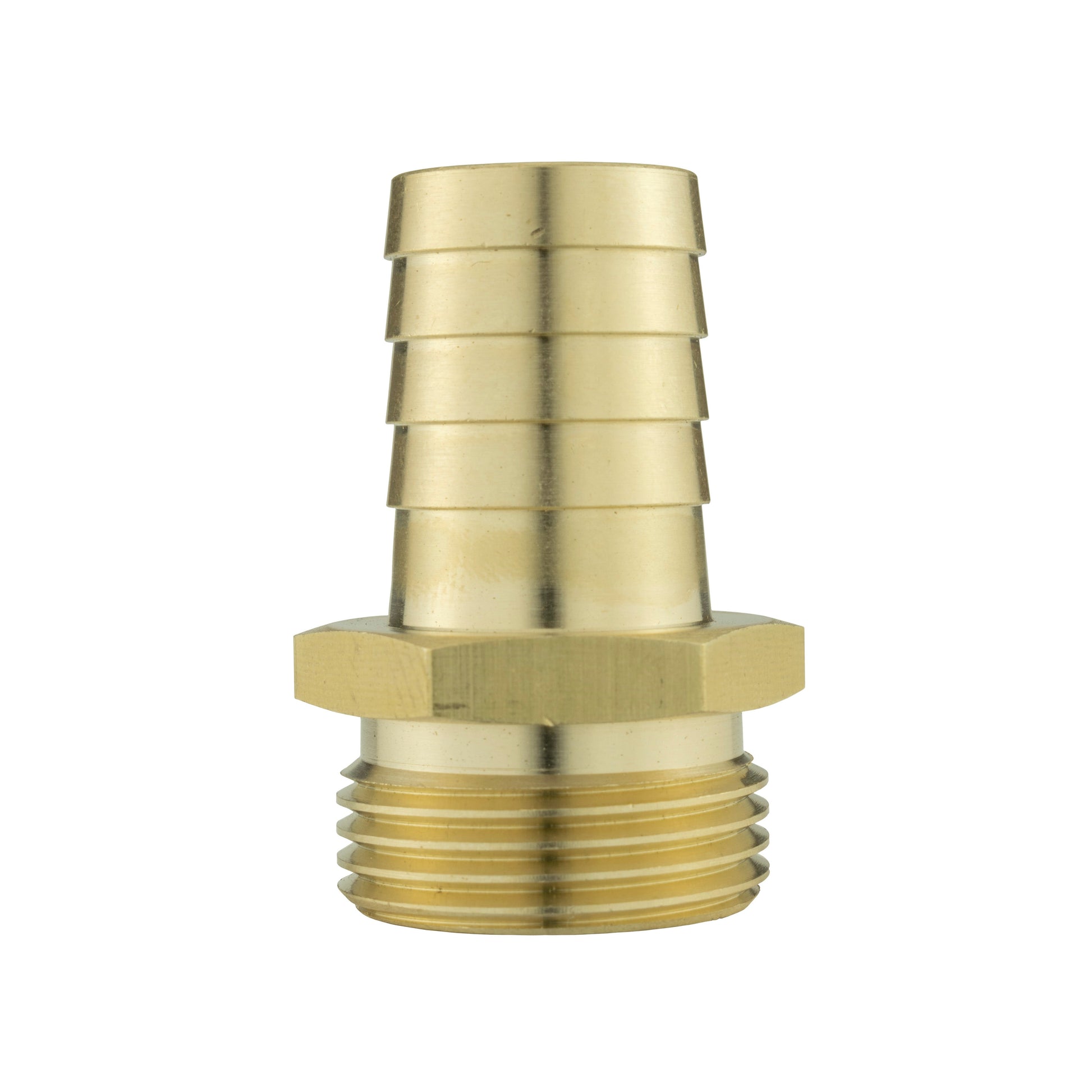

The brass straight joiner is a vital fitting used widely in plumbing and industrial contexts, facilitating secure connections between hose pipes and threaded components. It features a barbed end designed to grip the hose firmly, preventing leaks and disconnections even under pressure. This barbed connection ensures a tight seal suitable for both low and high-pressure uses. The opposite end has a British Standard Pipe (BSP) thread for secure attachment.

Manufactured from premium-quality brass, this joiner is robust and highly durable, able to withstand demanding environmental conditions and heavy usage. Brass offers excellent resistance to corrosion, wear, and impact, ensuring a long operational life in challenging applications.

Please note: PTFE tape is not included with this kit and must be purchased separately.
