WF25KIT043

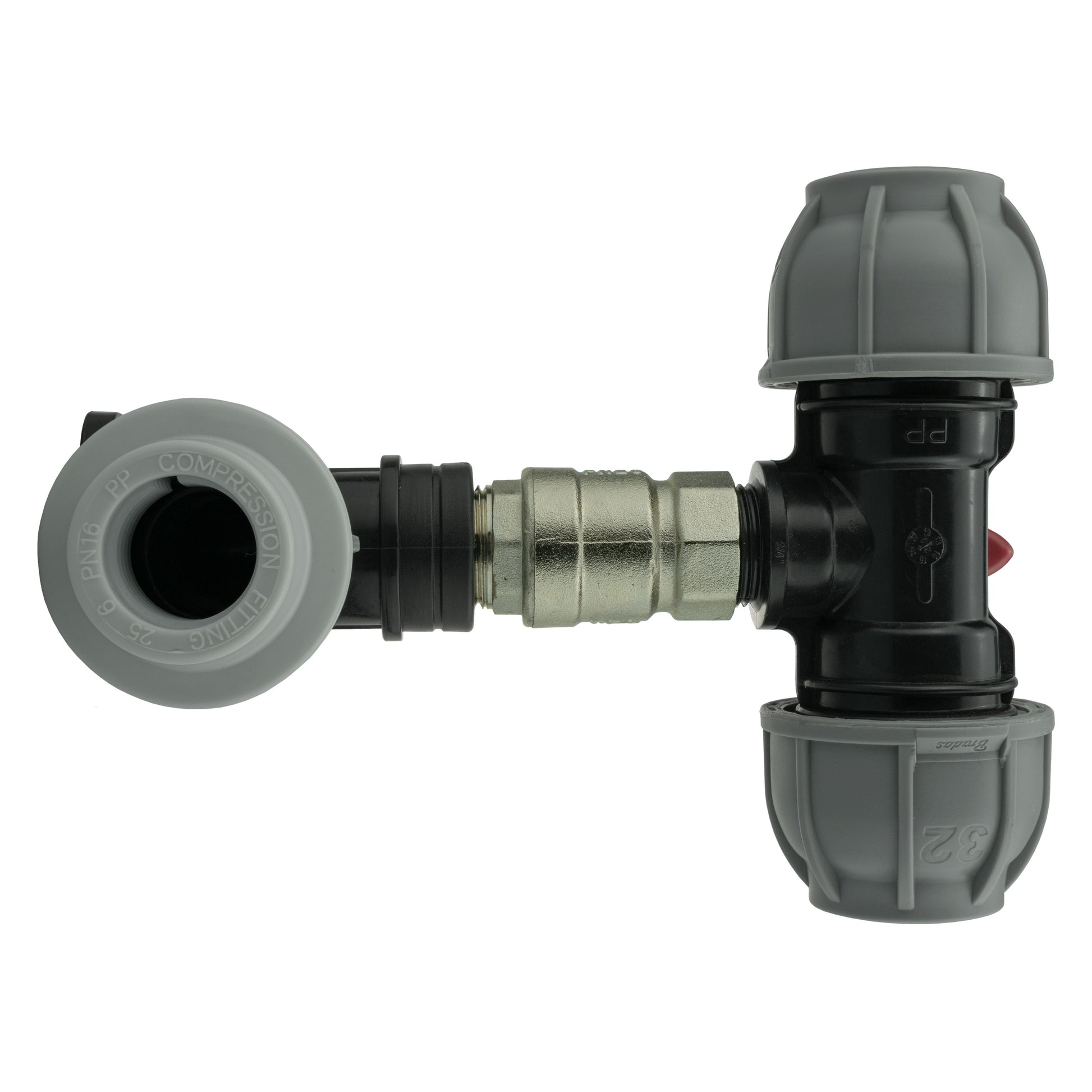

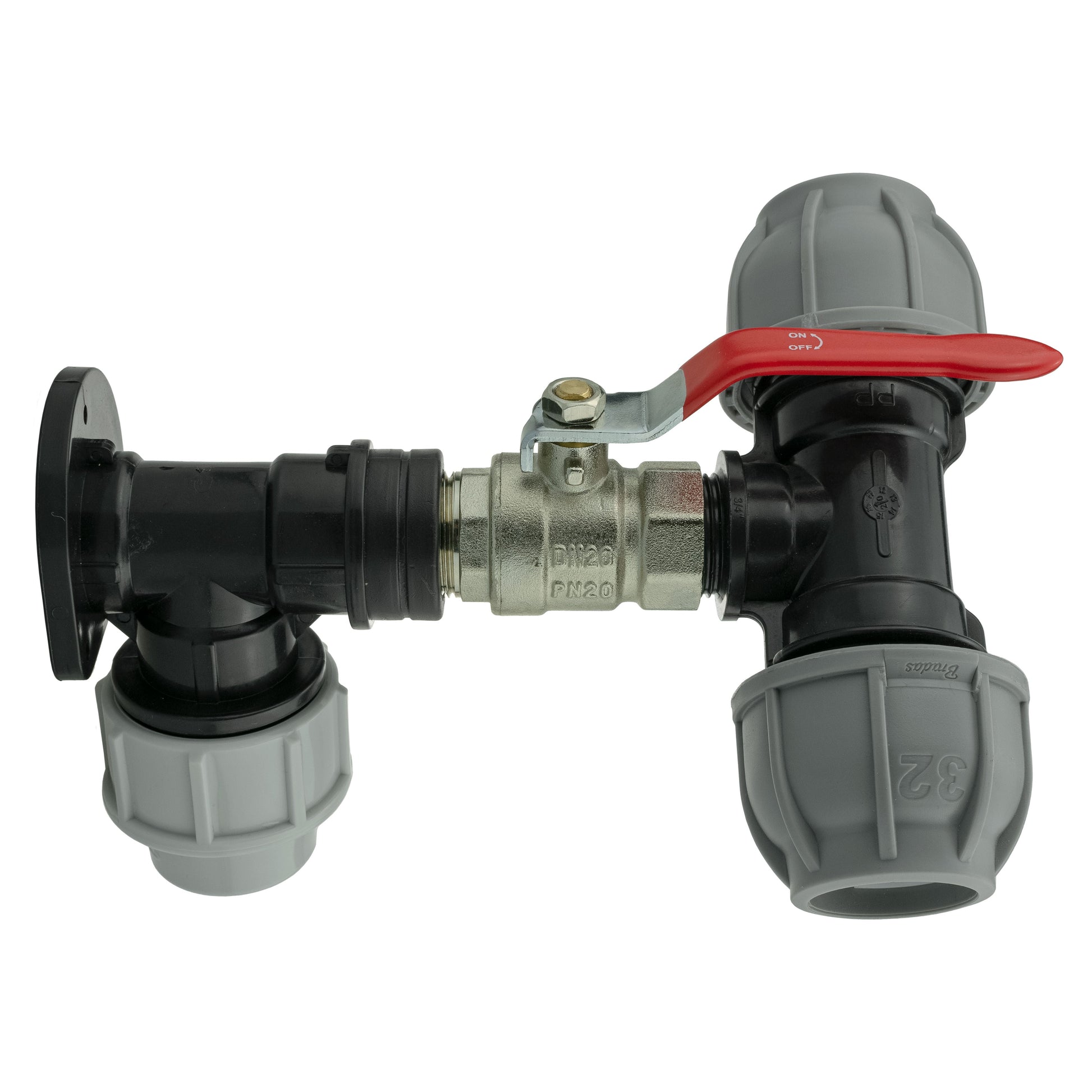

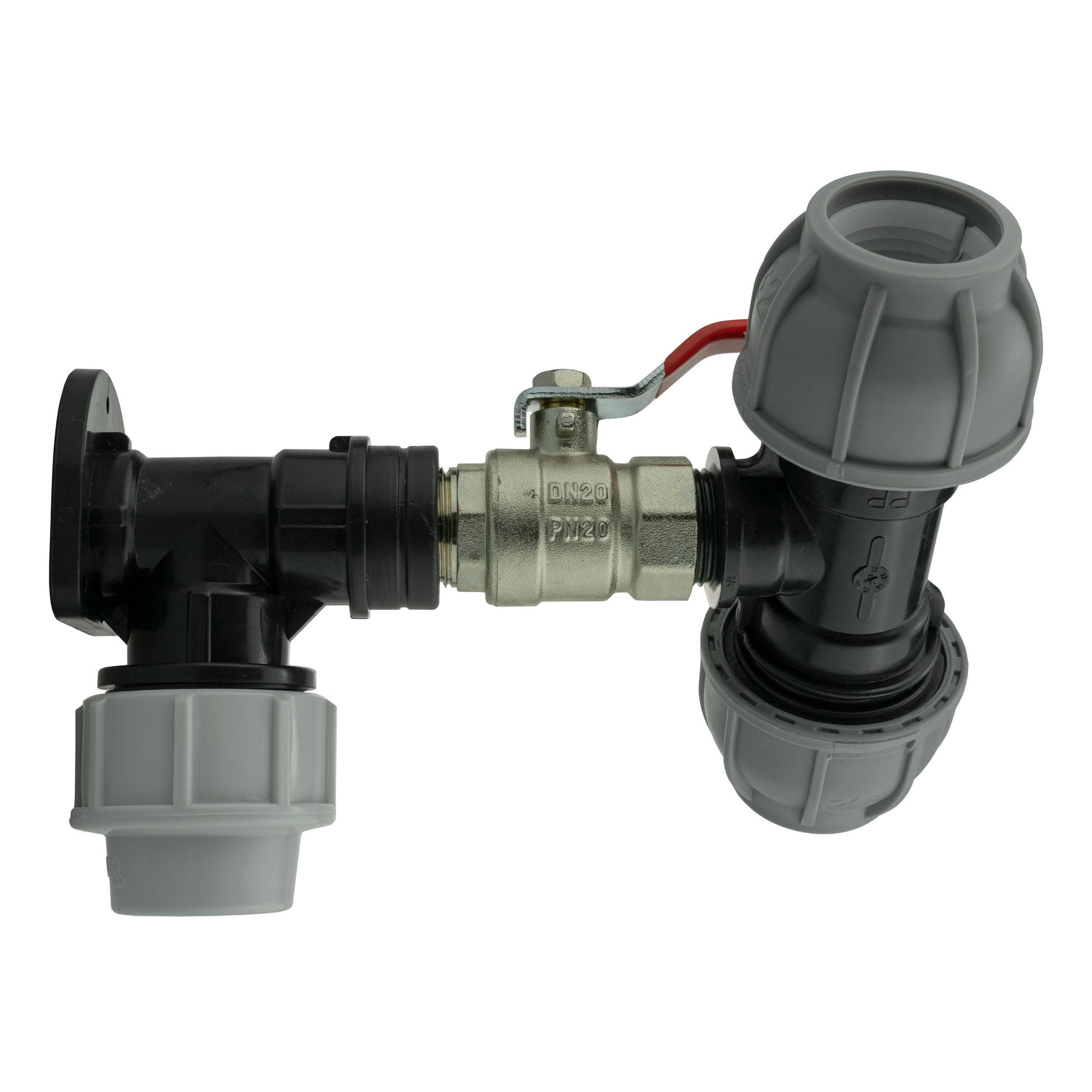

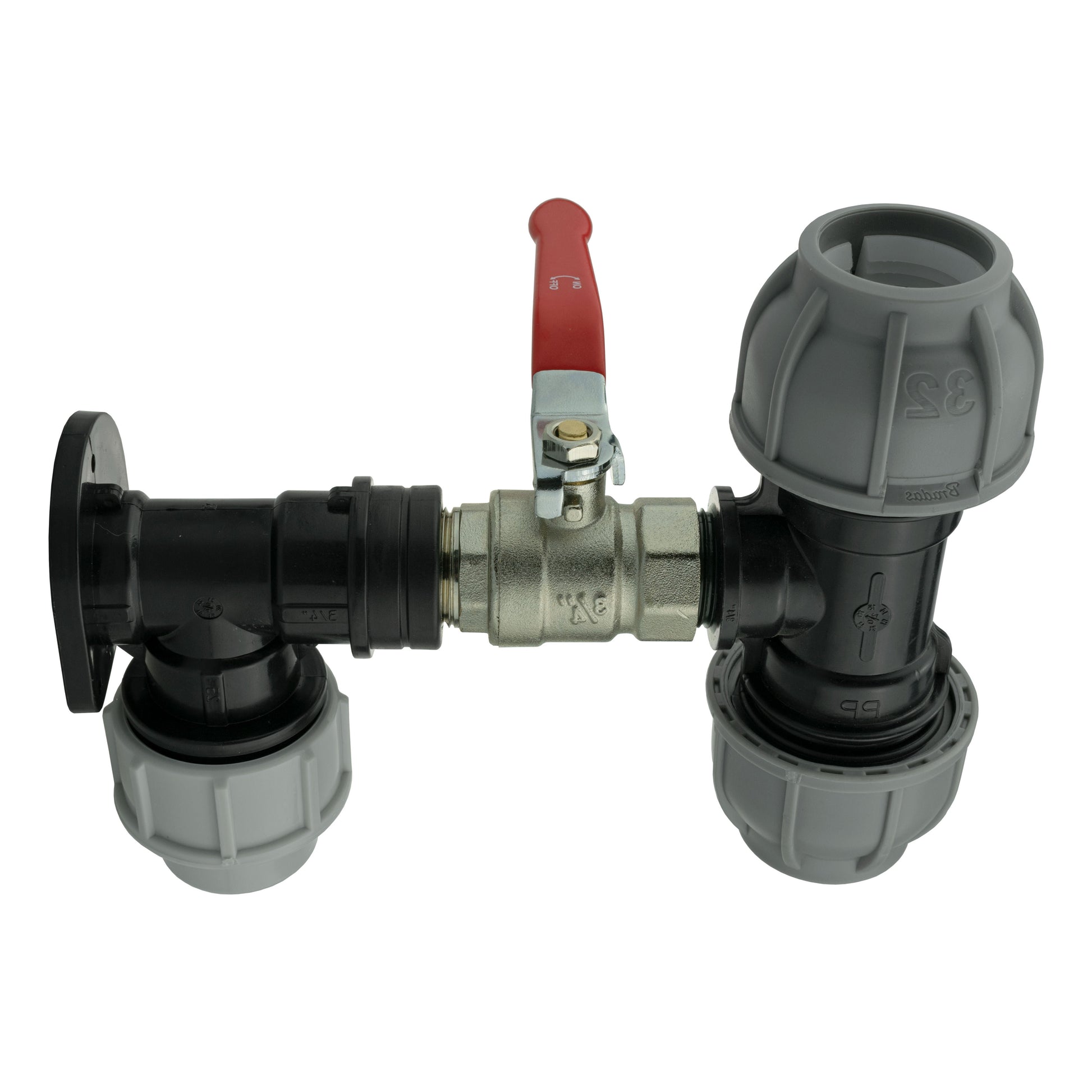

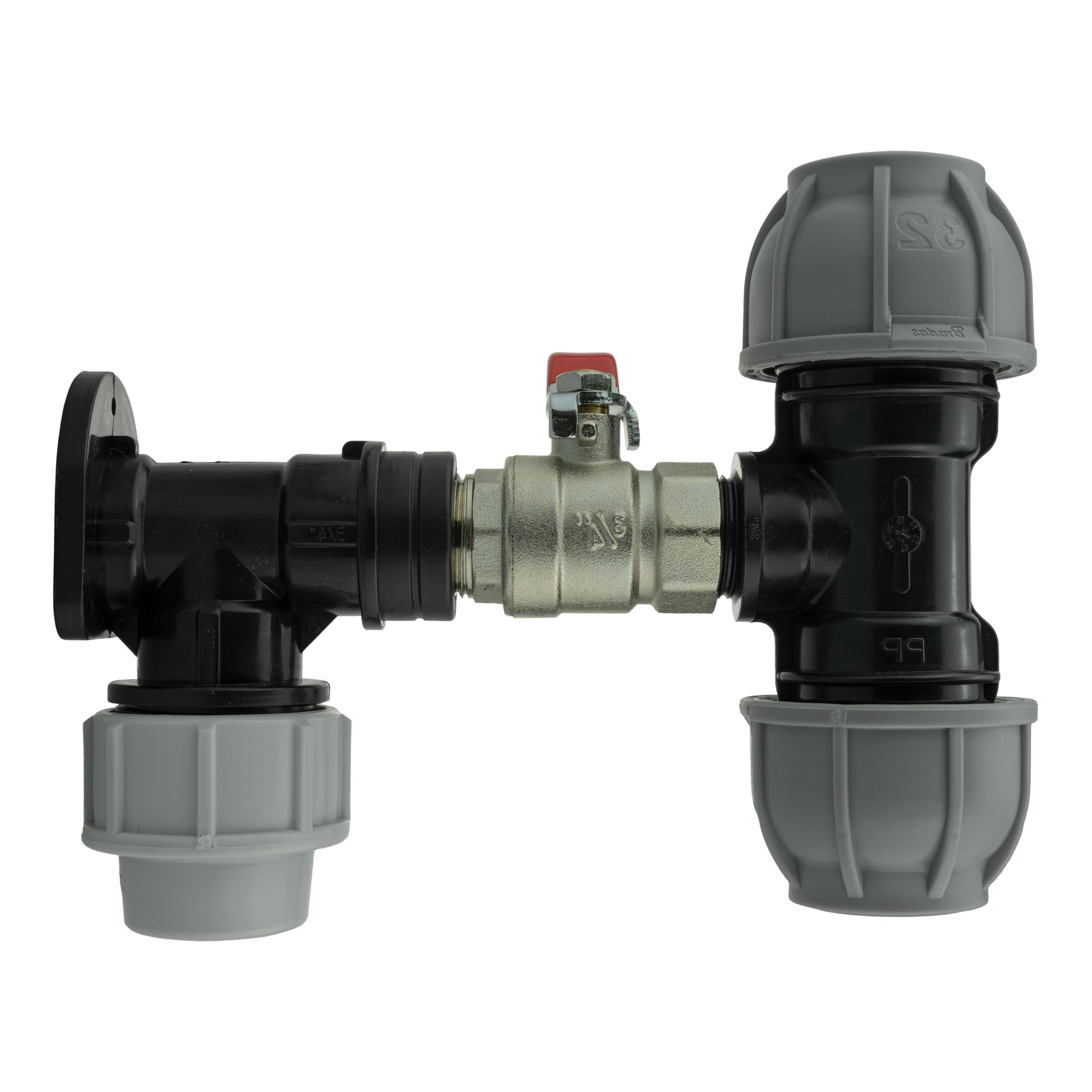

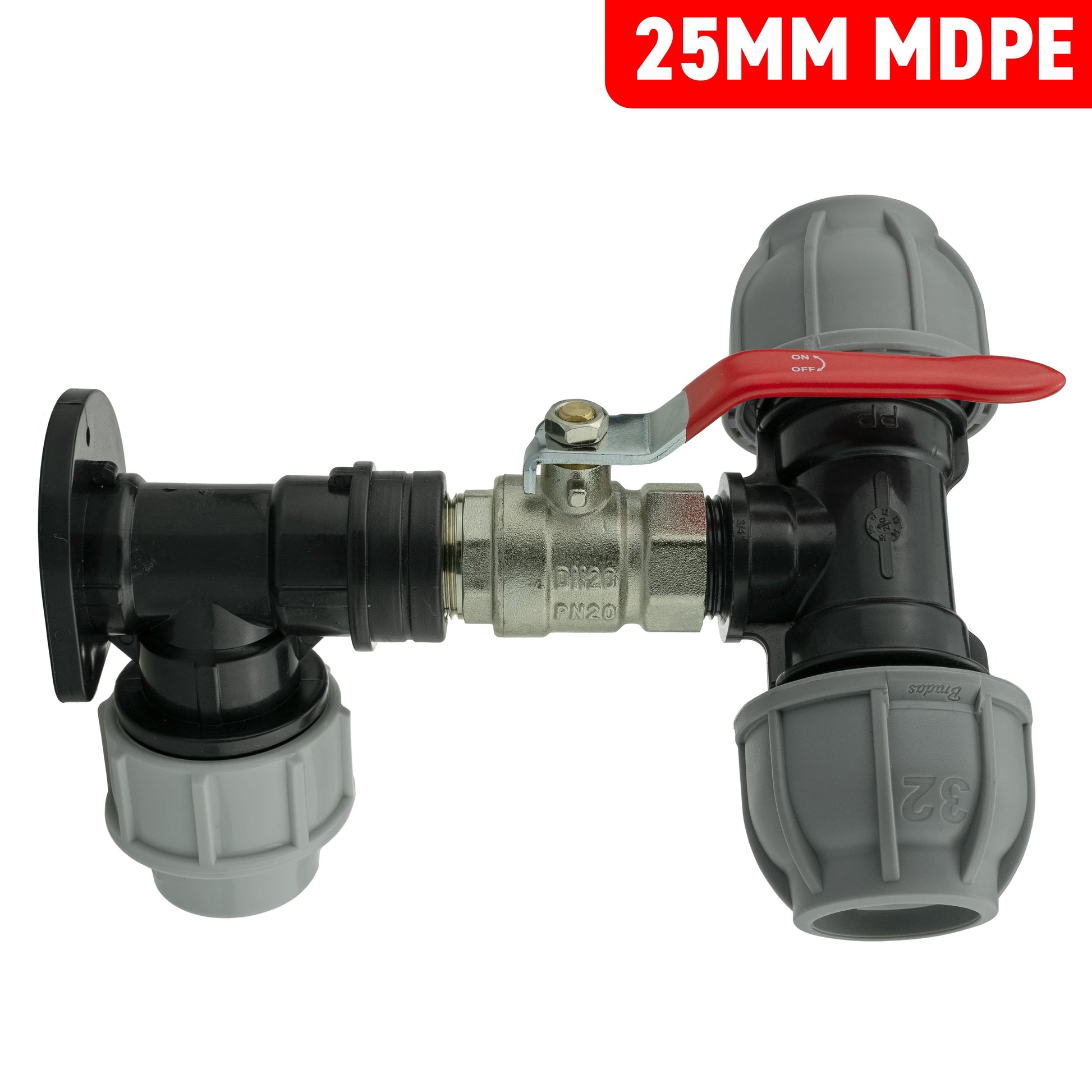

This kit contains:
- 1 x MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF)

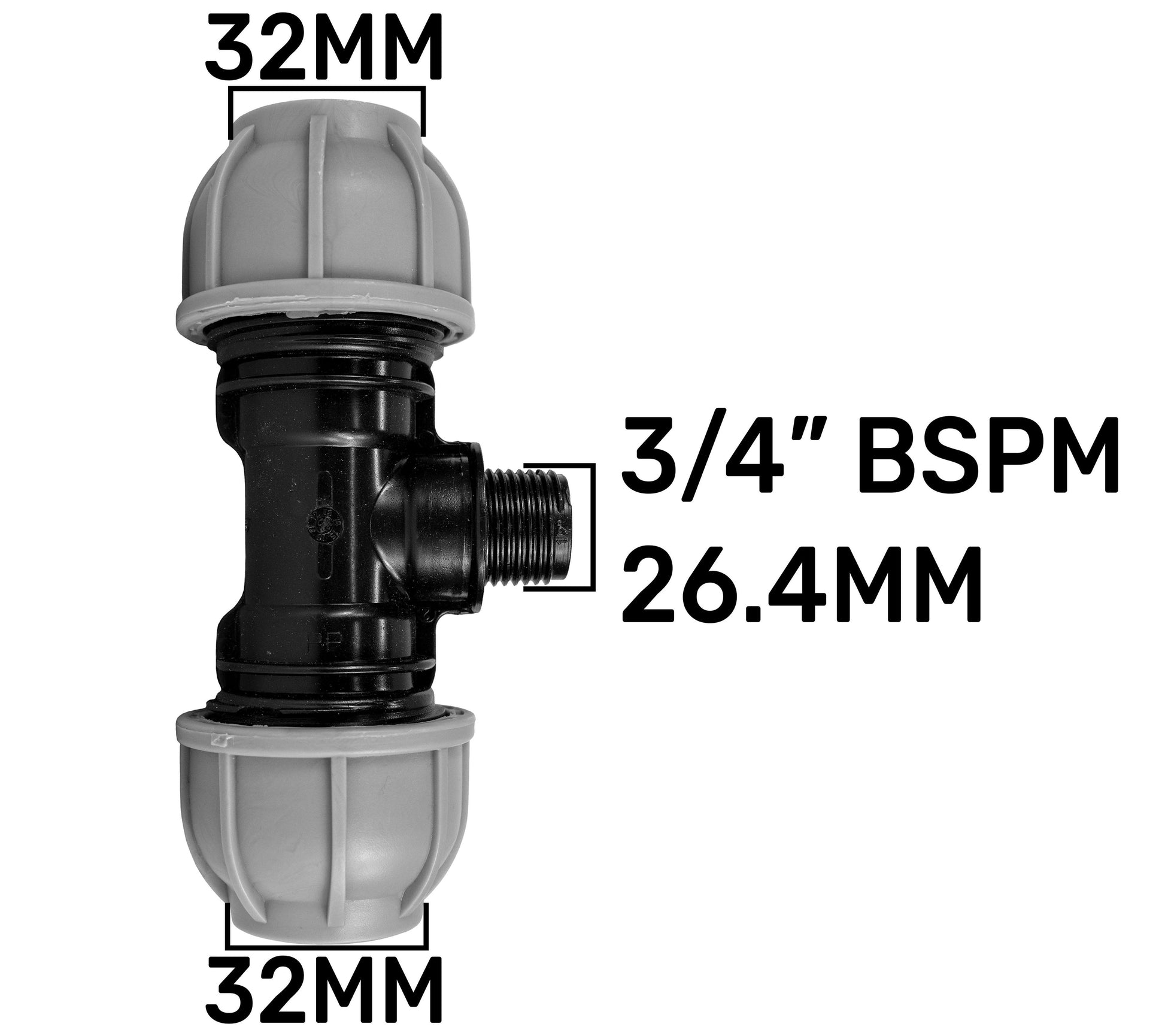

- 1 x MDPE Tee ¾” BSP – 32mm (MDPETEE32-34BSPM)
- 1 x Lever Valve ¾” BSP (BRVALVE34BSPM-F)
MDPE (Medium-Density Polyethylene) fittings are key elements in piping systems, specifically designed to connect MDPE pipes. Renowned for their durability, flexibility, and resistance to chemicals, these fittings are widely employed in water supply, irrigation, and industrial sectors. They feature threaded compression connections that provide a tight, leak-resistant seal without the need for specialised tools, making installation cost-effective and straightforward.
MDPE wall flange compression fittings secure pipes to flat surfaces, thus increasing system versatility. The MDPE tee fitting enables the pipeline to branch off at a 90-degree angle into two directions. This fitting is commonly used in water supply and irrigation systems, as well as other fluid transport applications.
MDPE PN10 fittings are designed to tolerate pressures up to 10 bar (approximately 145 psi), ensuring your piping system remains reliable under different conditions. These fittings can withstand harsh weather and mechanical stress, and offer excellent resistance to corrosion caused by chemicals and acids, extending their service life and reducing maintenance demands. Overall, MDPE fittings deliver a dependable, versatile, and efficient solution for various piping needs.
The brass nickel-plated lever valve with ¾” BSP male-to-female thread is manufactured from robust, high-quality brass, providing strength and corrosion resistance. The nickel plating adds an additional protective layer, guarding against wear, tarnish, and environmental effects, supporting long-lasting performance even in demanding environments.
This valve features an ergonomic lever handle for smooth and accurate on/off control. The comfortable design allows easy adjustment of fluid flow with minimal effort, and the lever mechanism is reliable to ensure consistent operation even after repeated use, making it suitable for both domestic and commercial installations.
Please note: PTFE tape is not included with this kit and must be procured separately.
