3/4" Water Butt Extension Set with 13mm Hose Barb Irrigation Valve & Hole Cutter

WBEX34MF-KIT020+DB

This set includes:

• 1 × 3/4" BSP Water Butt Extension Connector (EXTENSION34BSPM-F)
• 1 × Locking Nut (BUTT34BSPM-NUT)
• 2 × Sealing Washers (BUTT34BSPM-WASHER)
• 1 × 3/4" BSP to 13mm Barb Irrigation Valve (A46705-VALVE13-34BSPM)
• 1 × 27mm HSS Hole Saw Drill Bit (DB27MM)

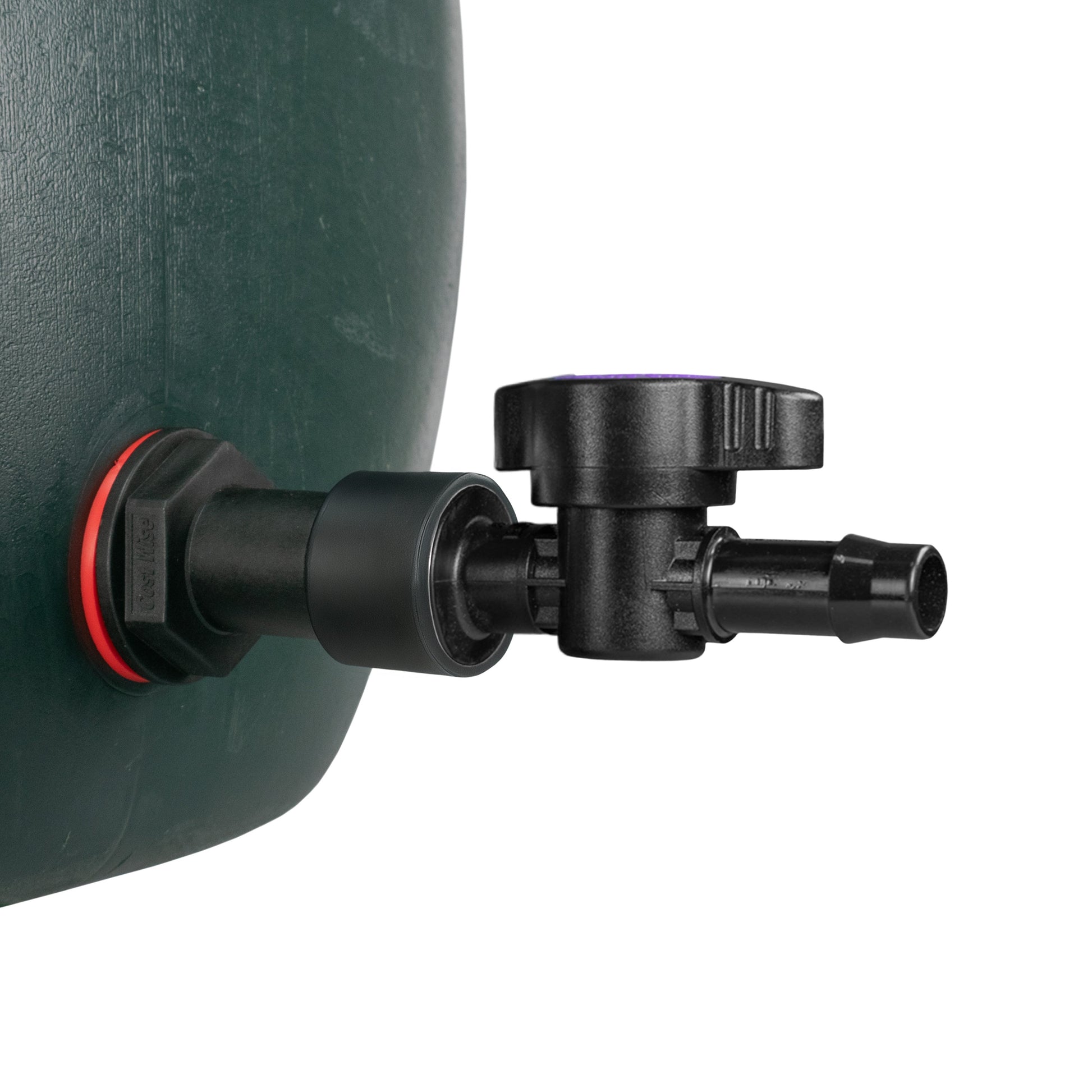

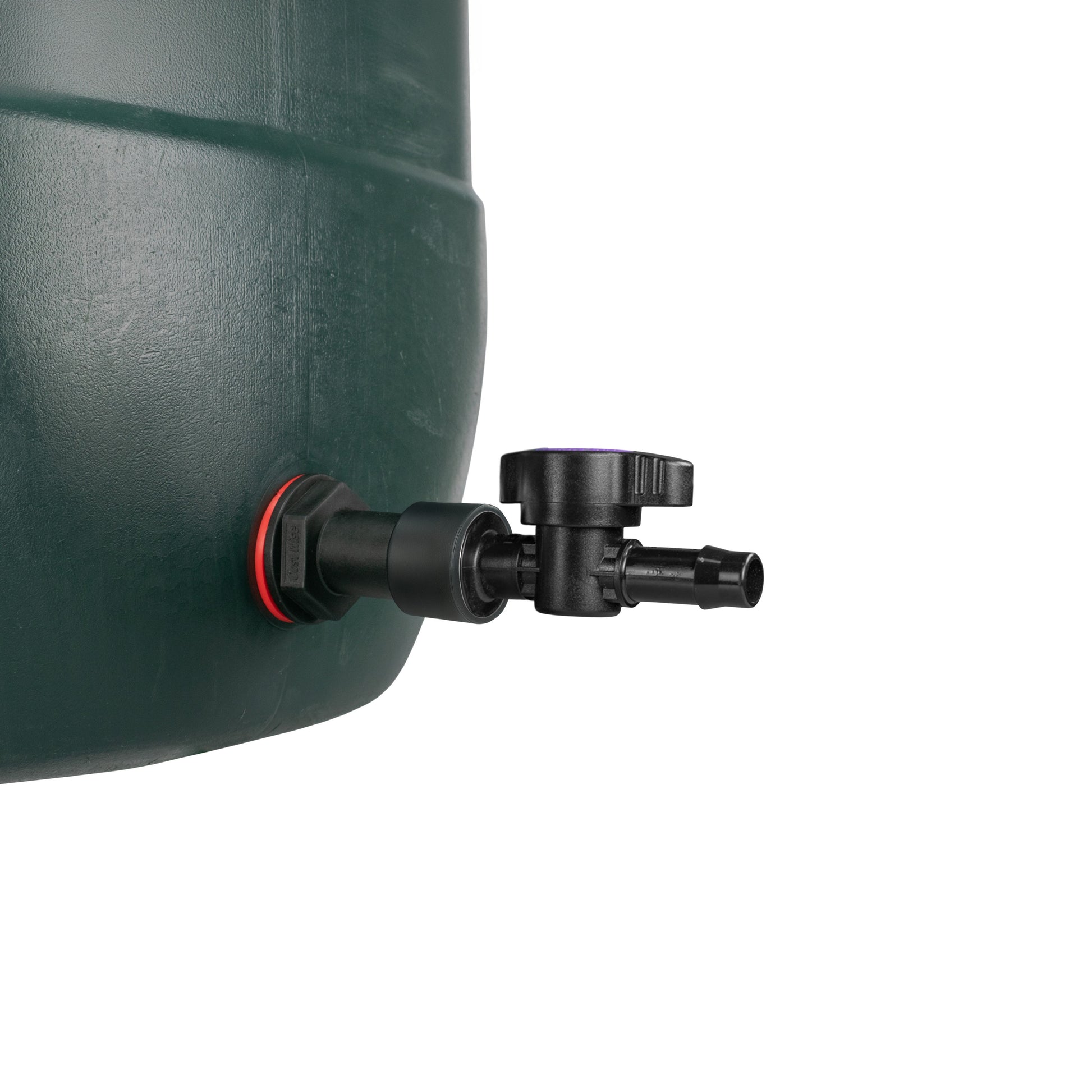

The water butt extension fitting enhances the accessibility of your rainwater container by adding a practical 50mm extension. Featuring a male BSP thread on one end and a female BSP thread on the other, it allows easy connection of hoses or taps while providing a more convenient reach for filling watering cans.

With a 3/4" BSP thread fitting a 26mm hole, this extension can be screwed directly into an existing threaded socket. If your container lacks a pre-threaded port, simply drill a hole and install using the provided nut and washers for a secure, watertight fit.

Once fitted, the 50mm extension improves overall usability, offering a stable point for water extraction or accessory attachment, ideal for rainwater harvesting systems or general garden use.

The included nut and washers ensure firm and reliable mounting. They help distribute pressure evenly during installation, minimize deformation, and create a leak-resistant seal, making this setup suitable for both temporary and permanent use in tough outdoor conditions.

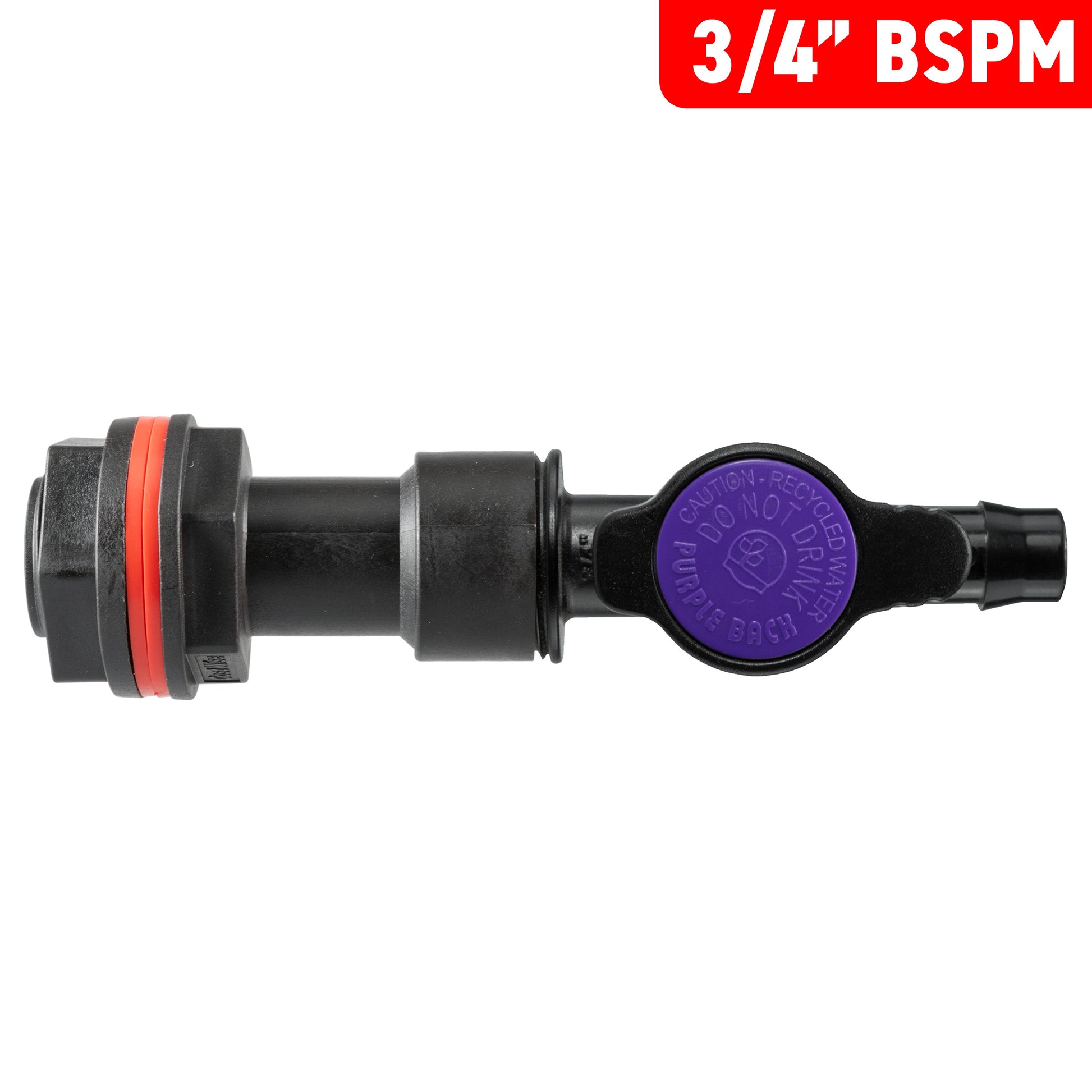

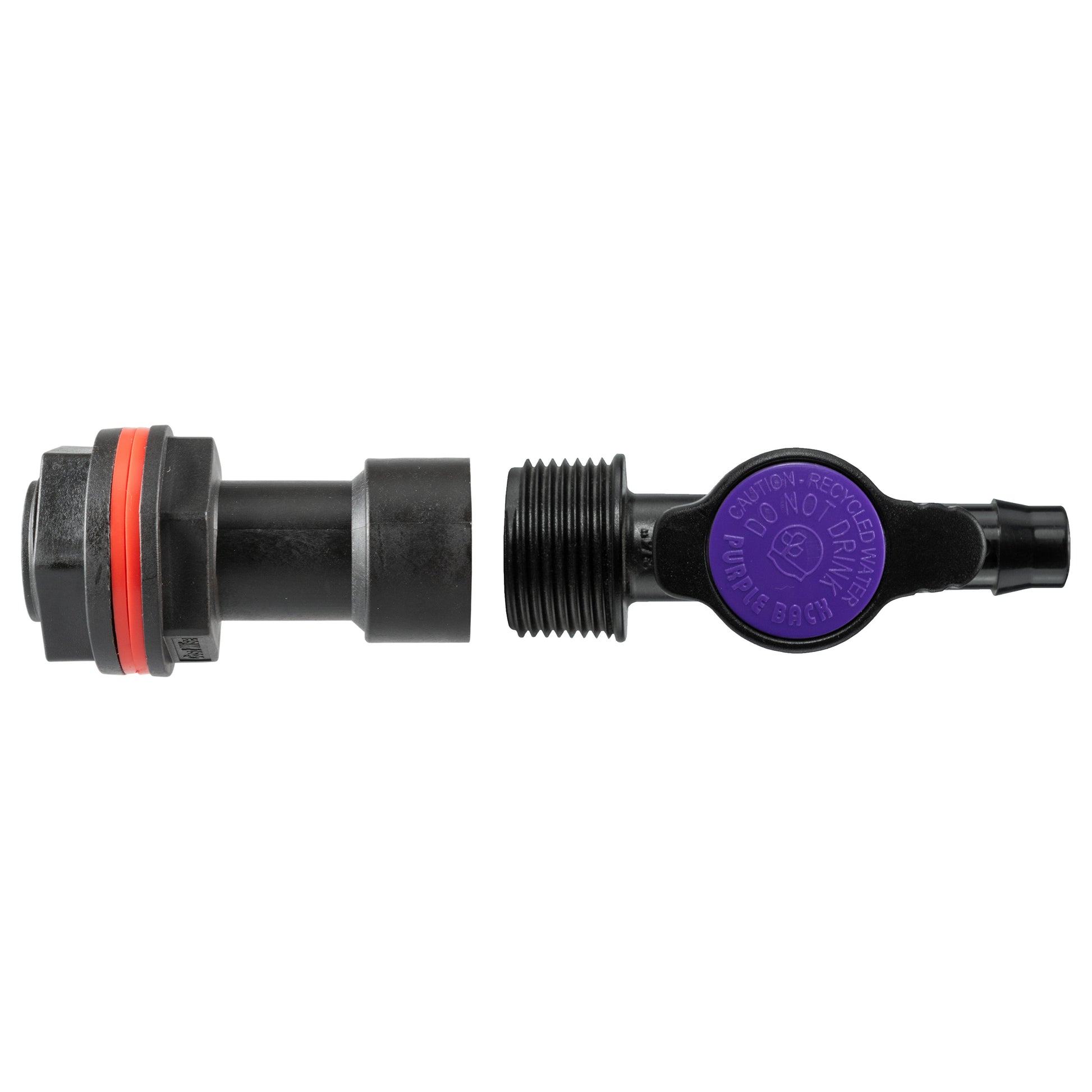

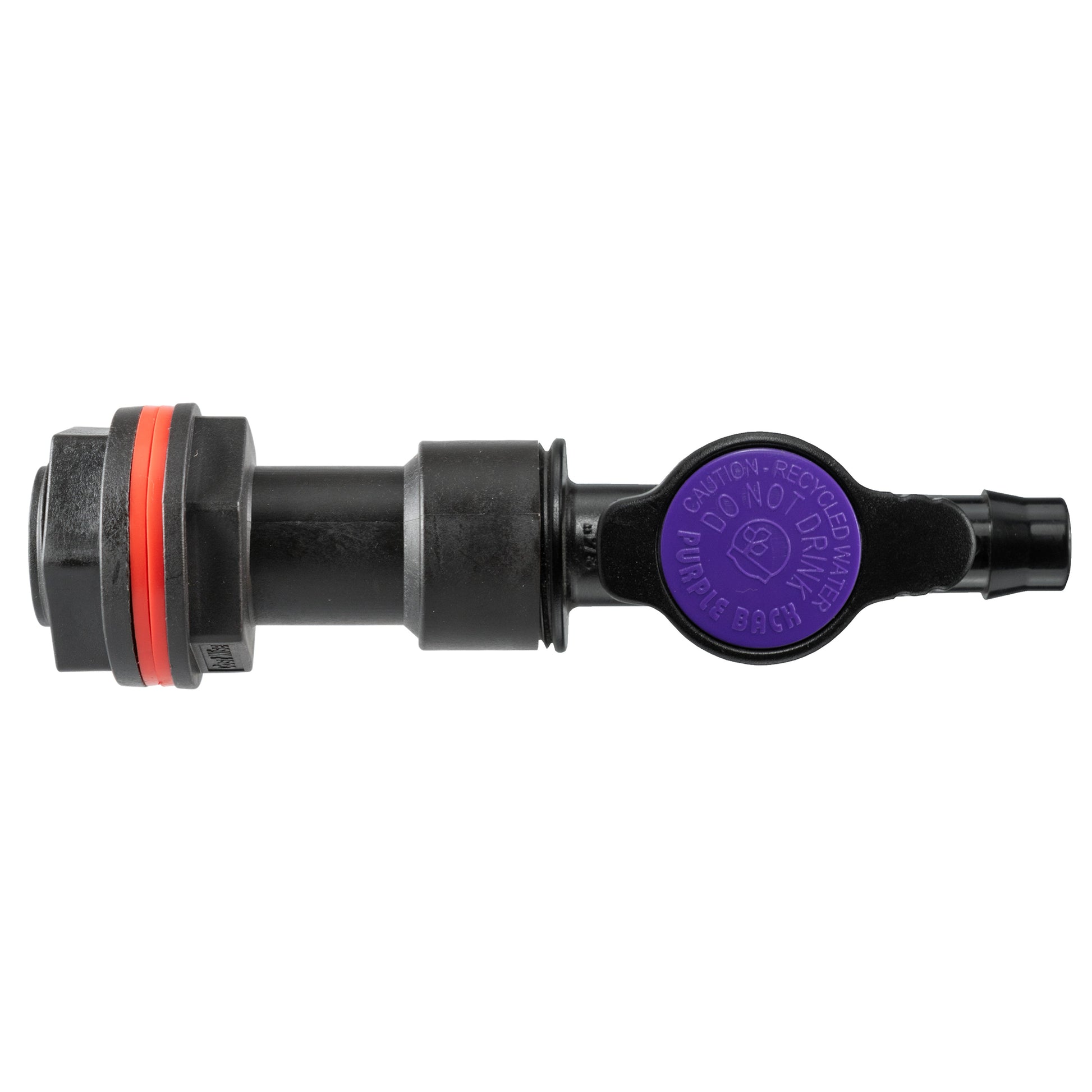

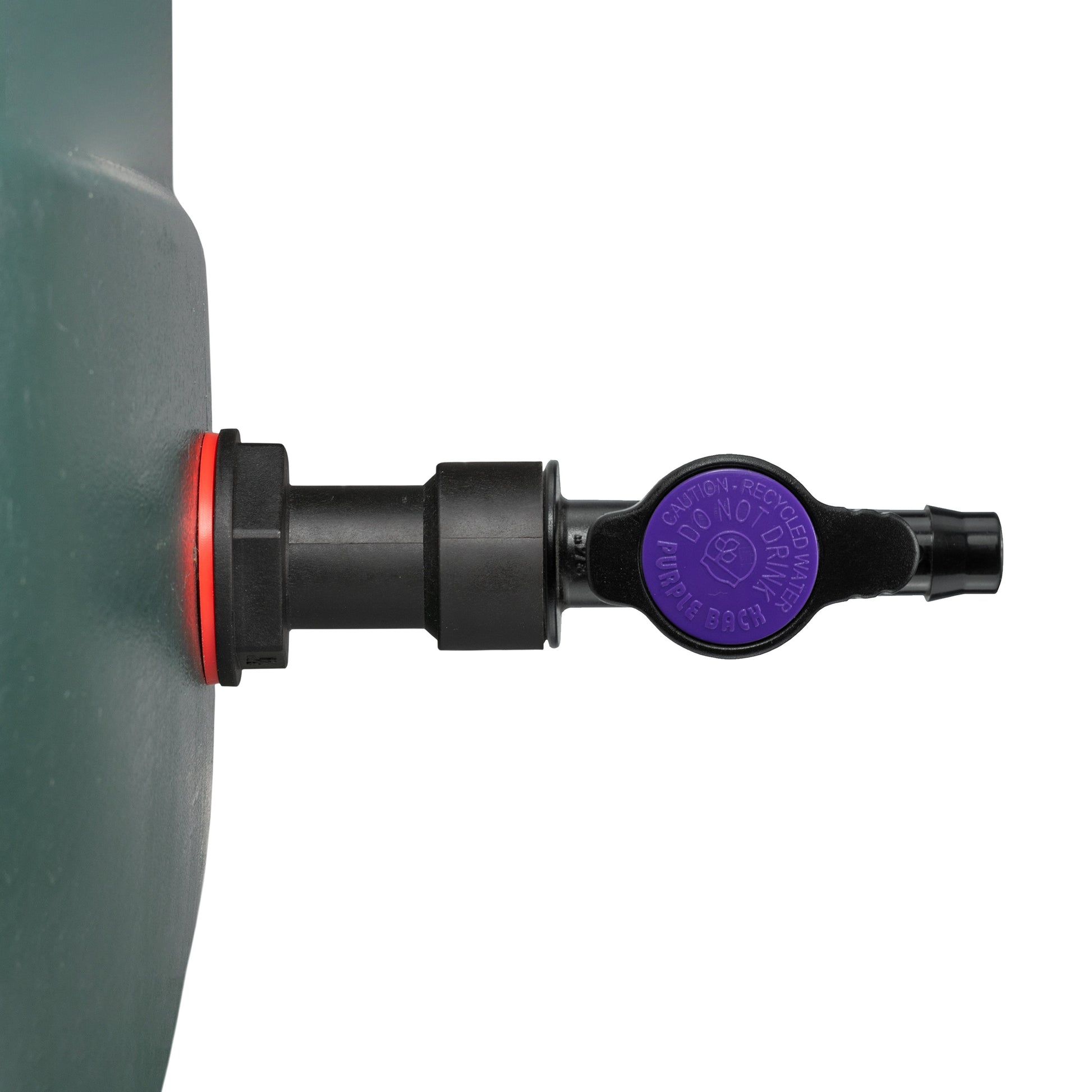

The 3/4" BSP Male Thread Irrigation Valve with a 13mm barb outlet is designed for low-pressure irrigation systems. Its straight-through flow ensures efficient water delivery, while the simple on/off mechanism allows easy flow control. It is ideal for systems using rainwater or greywater.

Featuring a distinct purple back cap, this valve is clearly marked for use with recycled water. UV-stabilised materials protect the valve from sunlight degradation, enhancing its durability and making it suitable for long-term outdoor use.

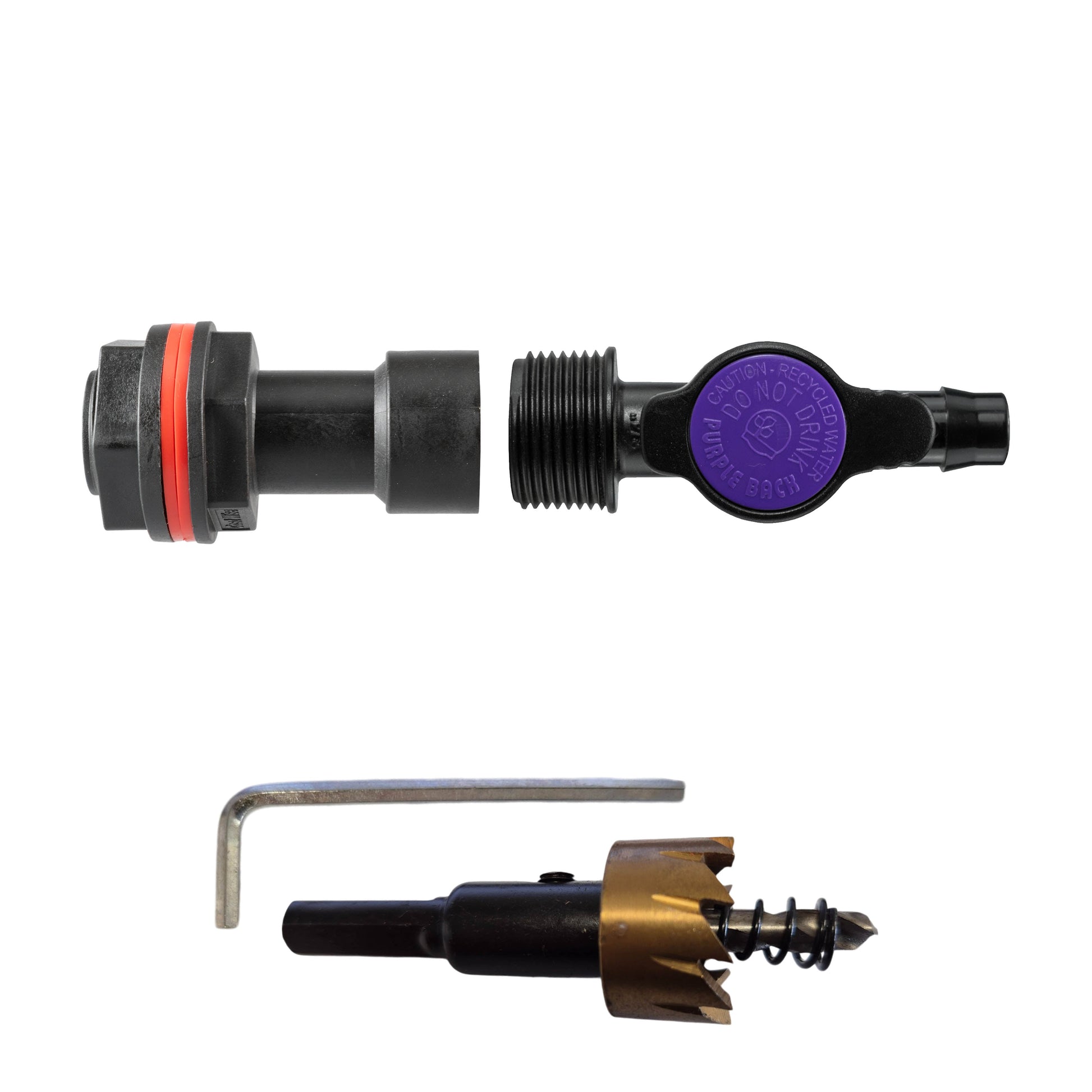

The included 27mm HSS Drill Bit Hole Saw Cutter is a robust and reliable tool for creating precise holes in plastic, wood, and metal. Its sharp, evenly spaced teeth and high-speed steel construction allow for clean, efficient cuts with minimal effort.

This hole saw is specially sized for drilling ports to accommodate 3/4" BSP male thread fittings, making it ideal for use in water butt installations. It features low vibration, excellent control, and easy attachment to standard power drills.

Note: PTFE Tape is not included and must be purchased separately.
