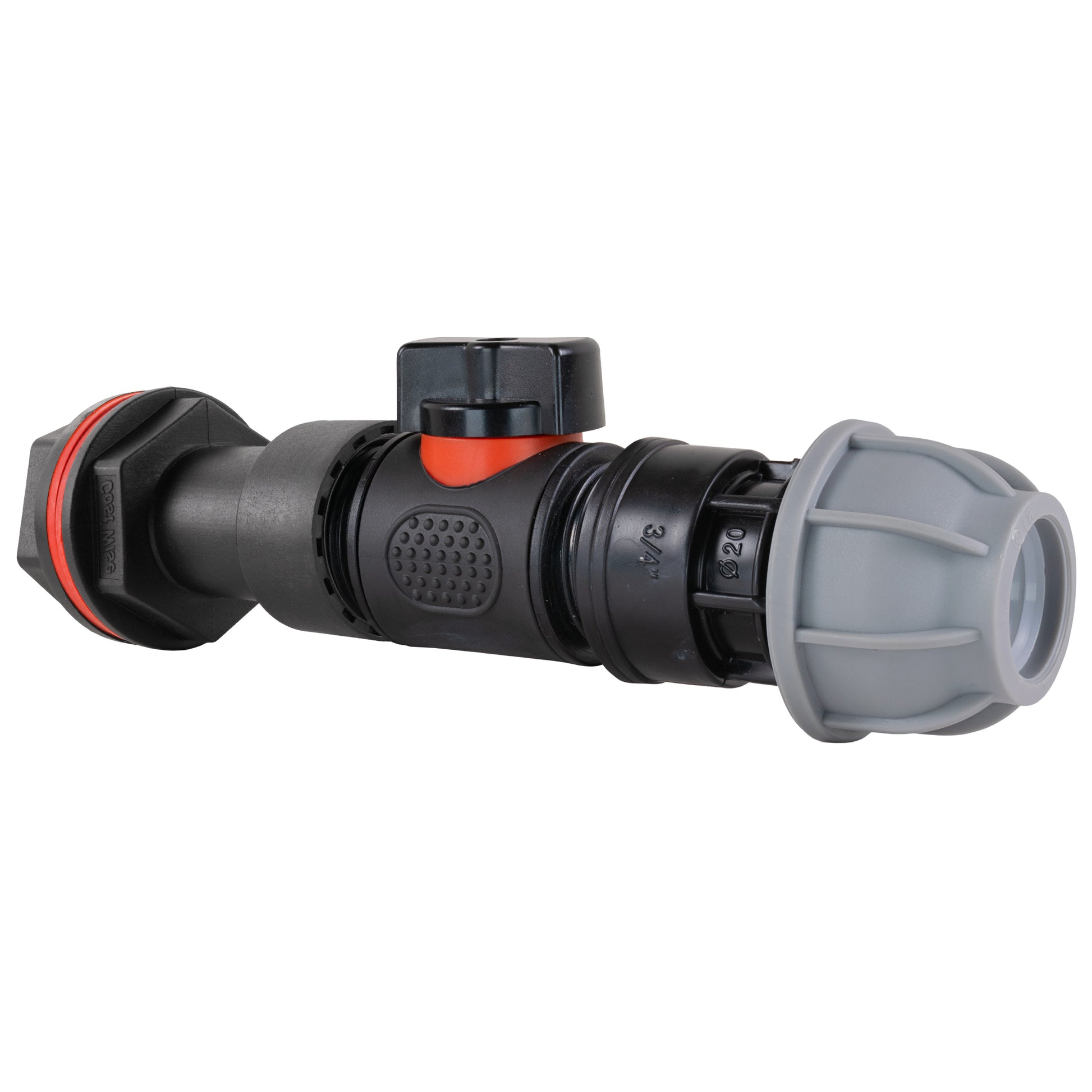

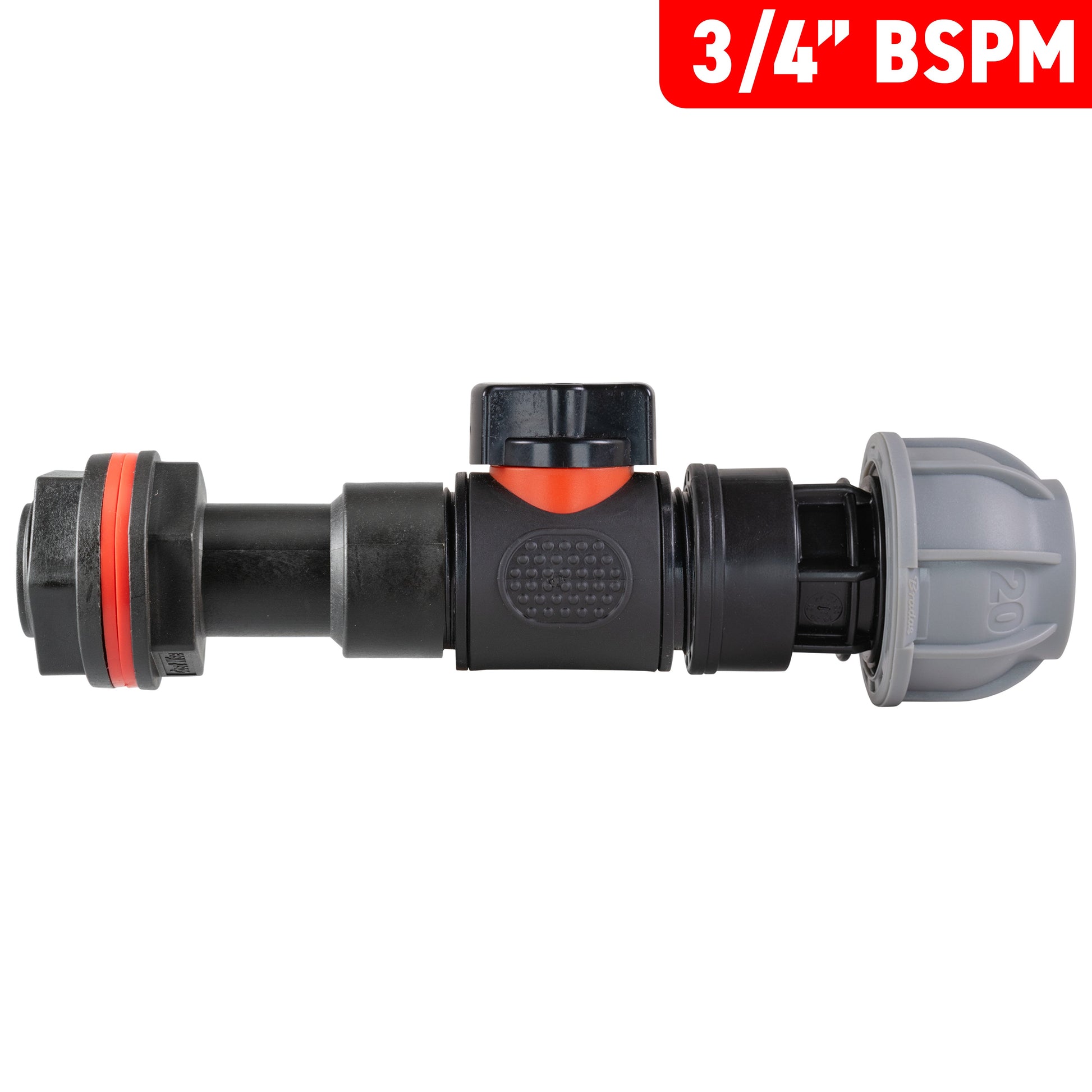

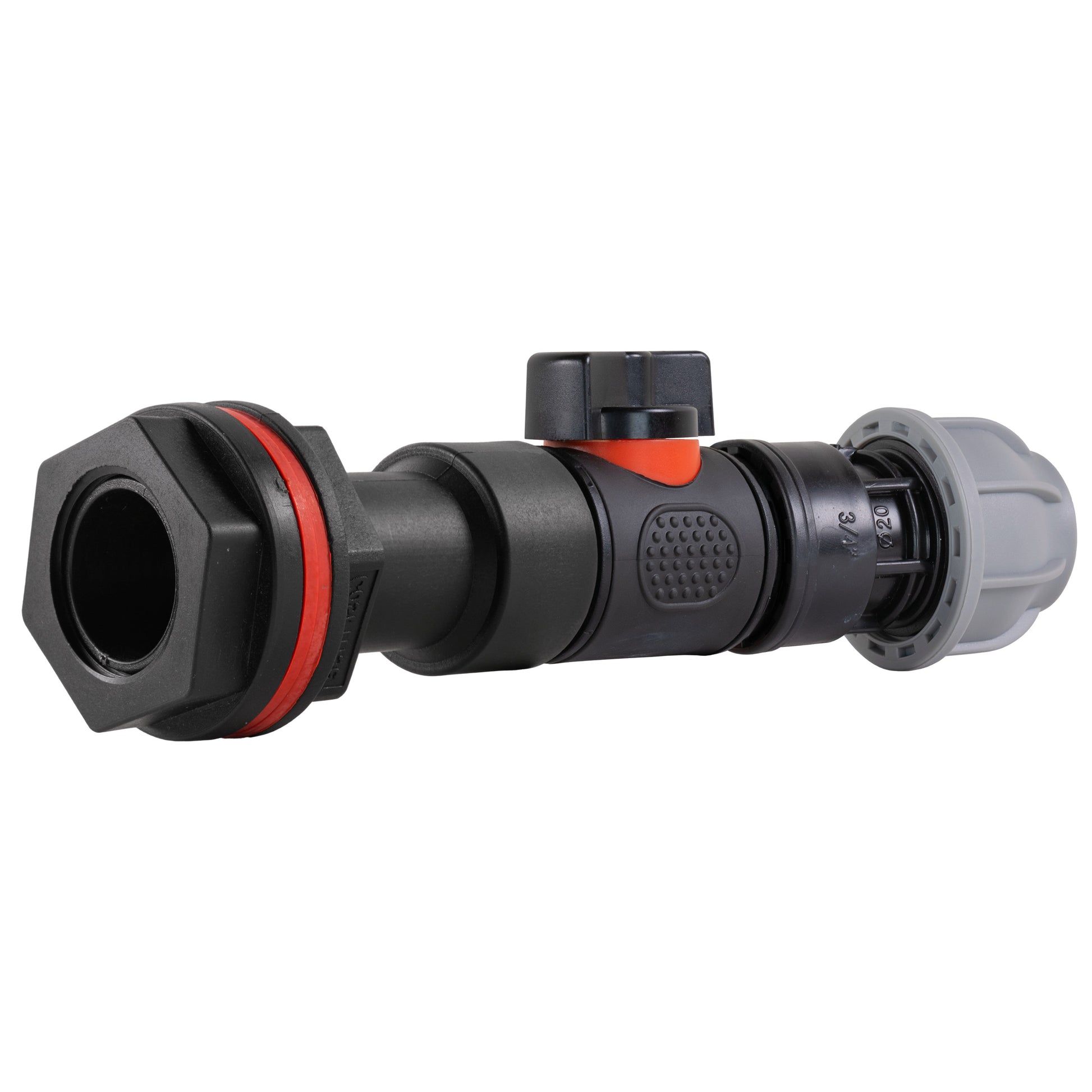

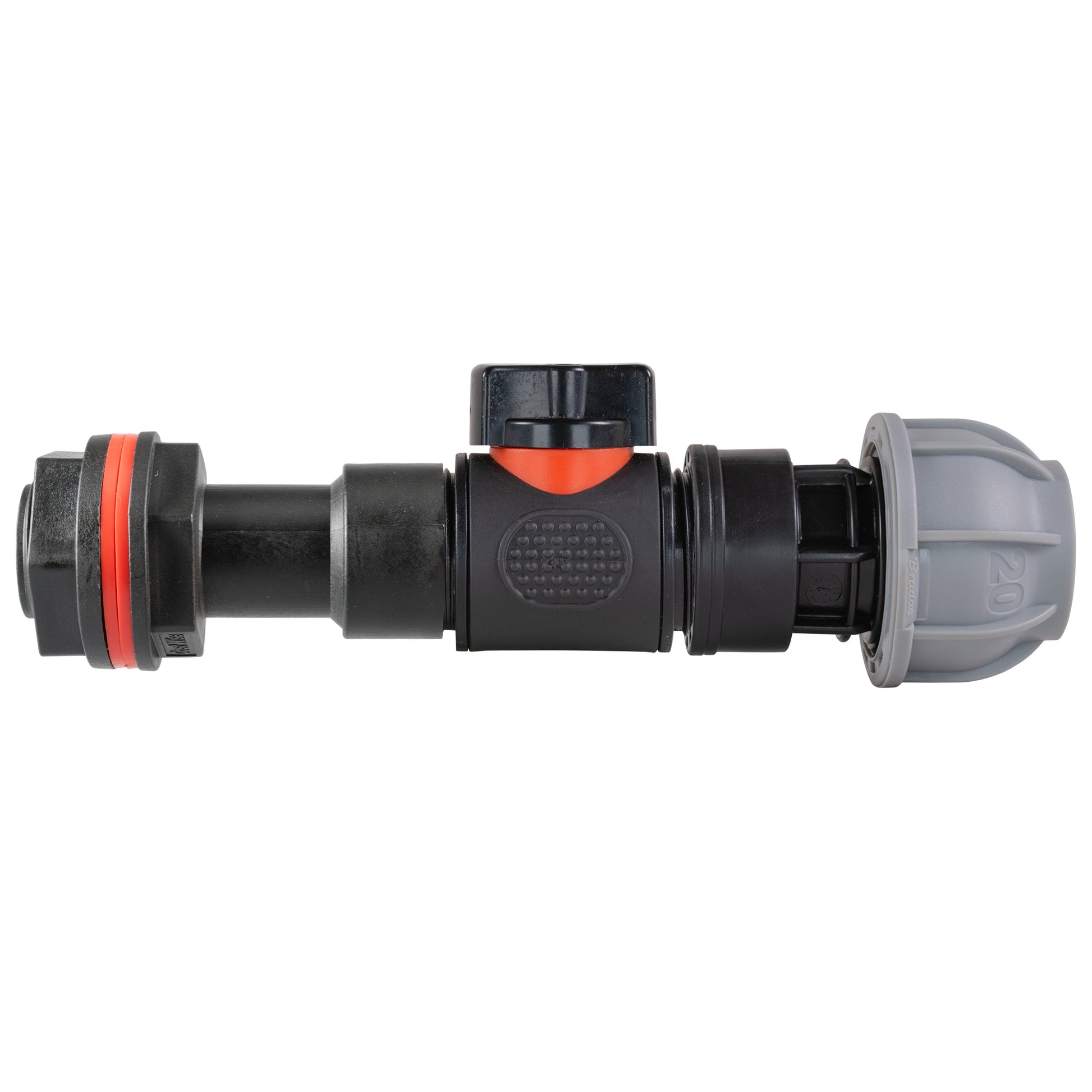

3/4’’ Water Butt Extension Set with In-Line Valve, 20mm MDPE Connector & Hole Saw

WBEX34MF-KIT017+DB

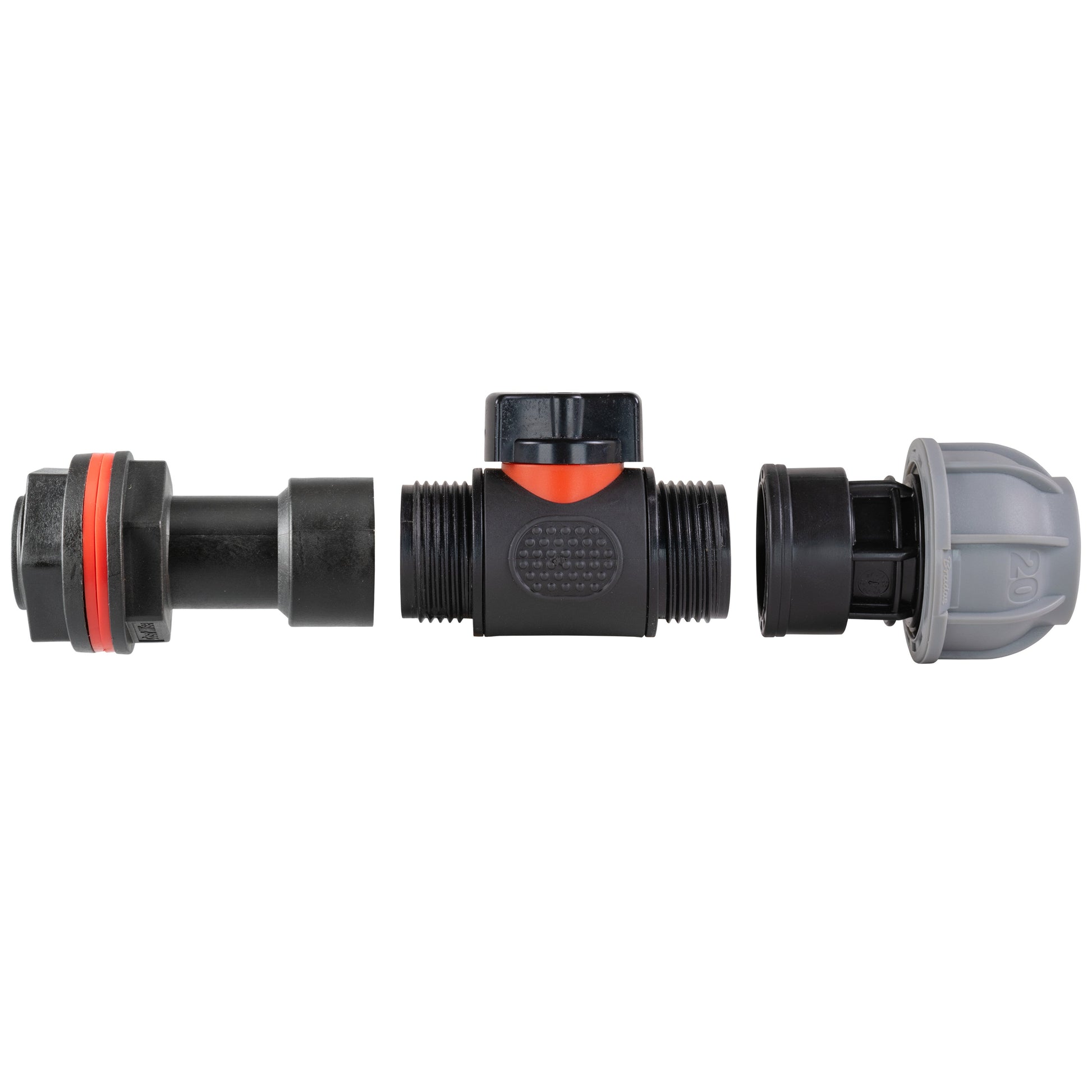

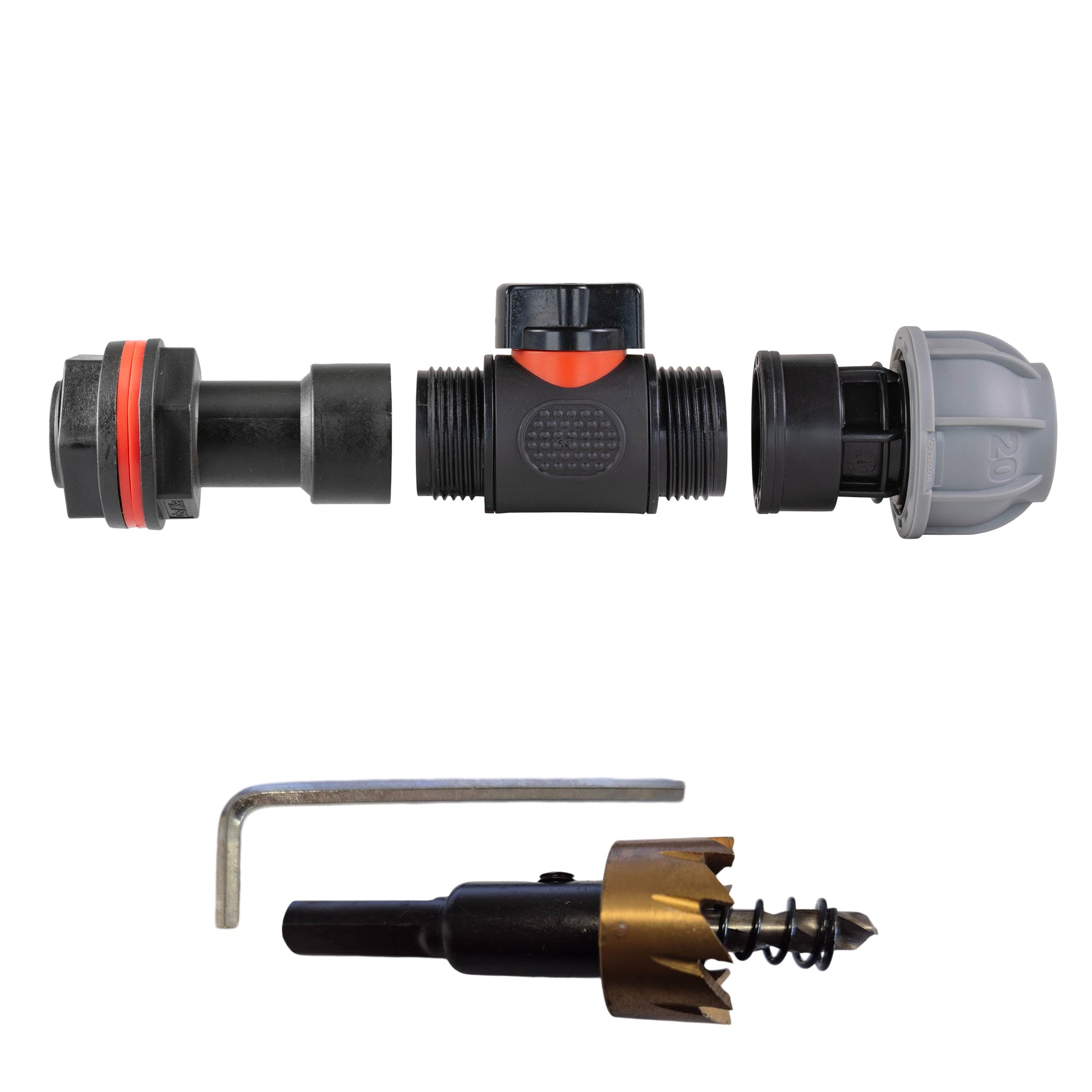

This kit includes:

• 1 x 3/4" BSP Water Butt Extension (EXTENSION34BSPM-F)
• 1 x Locking Nut (BUTT34BSPM-NUT)
• 2 x Sealing Washers (BUTT34BSPM-WASHER)
• 1 x 3/4" BSP In-Line Valve (HCV34BSPM001BLACK)
• 1 x 3/4" BSP – 20mm MDPE Straight Connector (MDPESTR20-34BSPF)
• 1 x 27mm HSS Hole Saw Drill Bit (DB27MM)

The water butt extension is a practical accessory that improves access and functionality of water butts and rain barrels. With a male BSP thread on one end and female BSP on the other, it adds a 50mm extension – ideal for connecting hoses or filling watering cans more comfortably.

It has a 3/4" BSP thread designed for use with a 26mm hole. Installation is straightforward: it can be screwed directly into an existing threaded outlet. If your water butt does not have one, you can create an opening with the included drill bit.

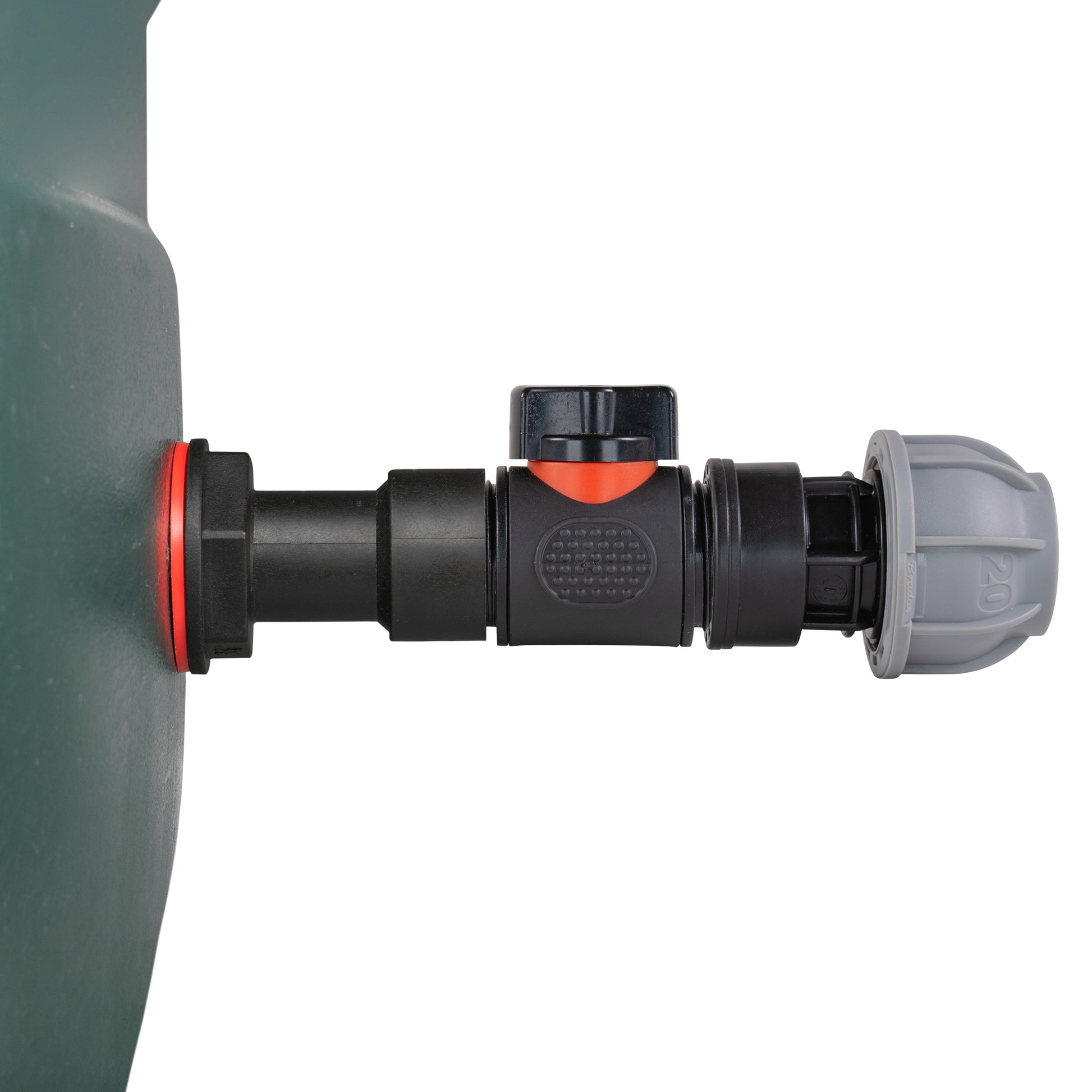

Once installed, it protrudes by 50mm, offering greater clearance for hose fittings and container access. Whether you're watering the garden or setting up a more accessible outlet, this extension is a reliable upgrade for any rainwater harvesting setup.

The kit also includes a back nut and sealing washers to secure the extension fitting. The nut locks it firmly in place, ensuring it remains secure even under pressure. These components are durable and simple to install or remove, making them suitable for both temporary and permanent use.

The washers help distribute pressure evenly across the surface, reducing the risk of damage during tightening. They also provide a watertight seal, helping to prevent leaks and preserve the efficiency of your water system.

The 3/4" BSPM in-line soft-touch valve is a dependable flow control device, ideal for managing water and other fluids with ease and precision. Made from strong, lightweight plastic, it’s resistant to wear, corrosion and is easy to install.

Its smooth-turn mechanism offers comfortable, effortless operation and accurate control over flow. The soft-touch handle makes it particularly well-suited to regular use in domestic and commercial applications alike. When closed, the valve ensures a tight seal to prevent leaks and maintain pressure.

Designed with low maintenance in mind, this valve resists build-up and corrosion, reducing servicing needs and ensuring long-term reliability.

MDPE (Medium-Density Polyethylene) fittings are key elements in plumbing systems, ideal for connecting MDPE pipes. Known for their chemical resistance, durability and flexibility, they are widely used in irrigation, water supply and industrial applications.

The included MDPE straight fitting joins two sections of pipe in a direct line. It features threaded compression ends for a tight, leak-proof seal without specialist tools, making it user-friendly and cost-effective.

Rated to PN10, this connector can withstand pressures up to 10 bar (approx. 145 psi). It offers long-lasting performance in both harsh weather and chemically aggressive environments, making it an excellent solution for various fluid systems.

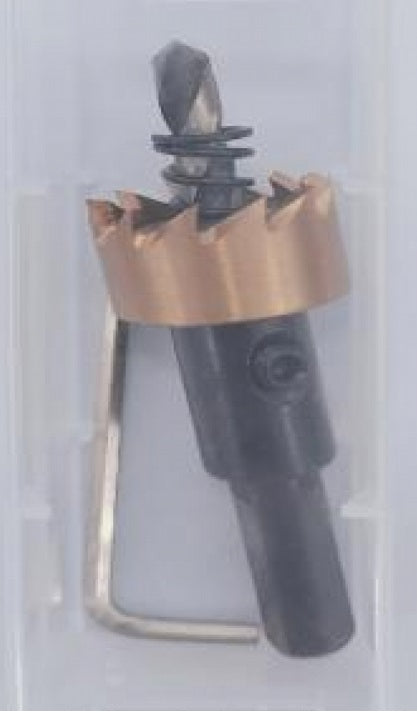

The 27mm HSS (High-Speed Steel) hole saw drill bit is designed for precision cutting in metal, wood, and plastic. Its durable, heat-resistant steel construction ensures long life and efficient performance in both professional and DIY settings.

This tool is perfect for drilling holes to accommodate 3/4" BSP male threads – particularly useful in water butt and plumbing installations. With sharp teeth and an ergonomic design, it minimises vibration and delivers smooth, accurate cuts.

Please note: PTFE tape is not included with this kit and must be purchased separately.
